COOKING ZONES CONTROL

MODELS KCT 39...

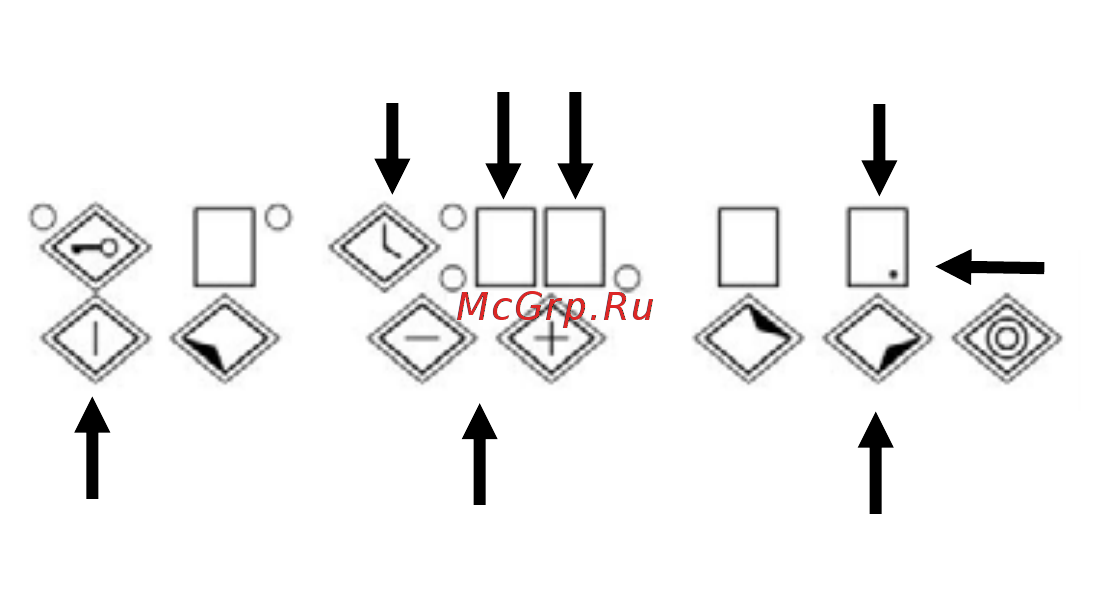

Switching on the Touch Control

x Press the key 1 to activate the control: the

adjustment level indicators 2 and the timer

display 3 are set to “0” while the decimal

points 4 flash.

Perform the next operation within 10 seconds;

otherwise the device will switch off automatically.

Adjusting power and the timer by means of the

(+) and (-) keys.

Use the (+) and (-) keys to adjust the setting of the

plates and the required time on timer / minute

counter.

x The (+) and (-) controls are common to

both functions. Accordingly, to regulate the

power of the hob, first select the zone with

key 5, then adjust the relative power level

using the (+) and (-) keys 6; this done.

x Select the timer function with key 7 and

proceed to set the duration, likewise using

the (+) or (-) key 6.

Switching on the cooking area

Once the device has been activated, switch on the

cooking area (within 10 seconds) as follows:

x Press one of the keys 5 to select the

cooking area required. The relative display

2 will indicate a “0” and the decimal point 4

will illuminate to show that the cooking

area has been activated.

x Use the (+) and (-) keys 6 to adjust the

heat level (from 1 to 9).

Press and hold down these keys to increase or

decrease the setting.
