EN
CARE AND ATTENDANCE

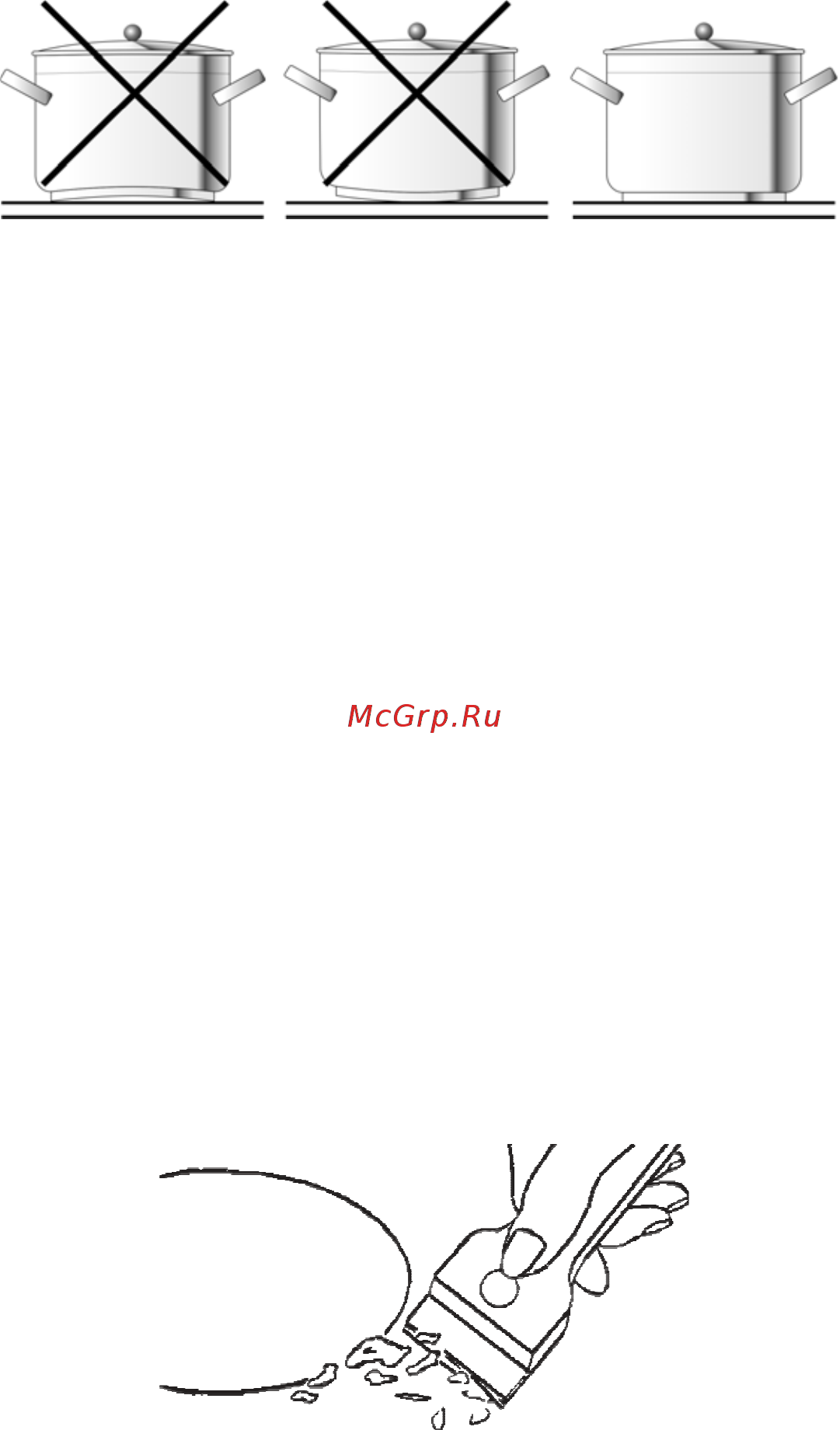

When one makes use of heating elements, we advise
receptacles with flat bottom having same diameter or
lightly higher than that of the hot area.
Avoid overflows of liquid, therefore when boiling has
happened, or in any case when liquid is heated,
reduce the heat supply.
Don’t leave the heating elements on without
receptacles on the top or with void pots and pans.
In the event of even a slight fracture on the
cooking surface, disconnect the electric power
supply immediately and contact to the service
center.
Maintenance
First of all remove stray food bits and grease drops
from the cooking surface with the special scraper.
Then clean the hot area as best as possible with
„Cera Clen“, „Eilfix“ or other similar products with a
papertowel, then rinse again with water and dry with a
clean cloth.
Pieces of aluminum foil and plastic material which
have inadvertently melted or sugar remains or highly
sacchariferous food have to be removed immediately
from the hot cooking area with the special scraper. -
This is to avoid any possible damage to the surface of
the top.
Under no circumstances should abrasive sponges or
irritating chemical detergents be used such as oven
sprays or spot removers.
58
