Level indicator

The outboard level indicator allows for easily reading the ﬁll quantity at any time. This indicator can

be disassembled for easy cleaning.

Disassembling the indicator

ATTENTION: Prior to disassembly make sure the unit is completely empty, has cooled down and got

disconnected from the mains.

• Loosen the closing cap by unscrewing it anti-clockwise then take it off. When doing so, secure the

holder.

• Remove the riser pipe to the top.

• Loosen the riser pipe holder by turning it anti-clockwise and take it off. Mind to not crush or bend

the holder.

• Remove the seal washer.

• Clean all parts thoroughly. We recommend using a small bottle brush.

Assembling the indicator

• Insert the seal washer.

• Position the riser pipe holder and ﬁx ﬁrmly by turning it clockwise.

• Insert the riser pipe (align scale to the front).

• Insert the closing cap by ﬁrmly screwing on clockwise.

• Check for leak-tightness

ATTENTION: Prior to disassembly make sure the unit has cooled down and got disconnected

from the mains. Empty the pot completely before taking out the tap!

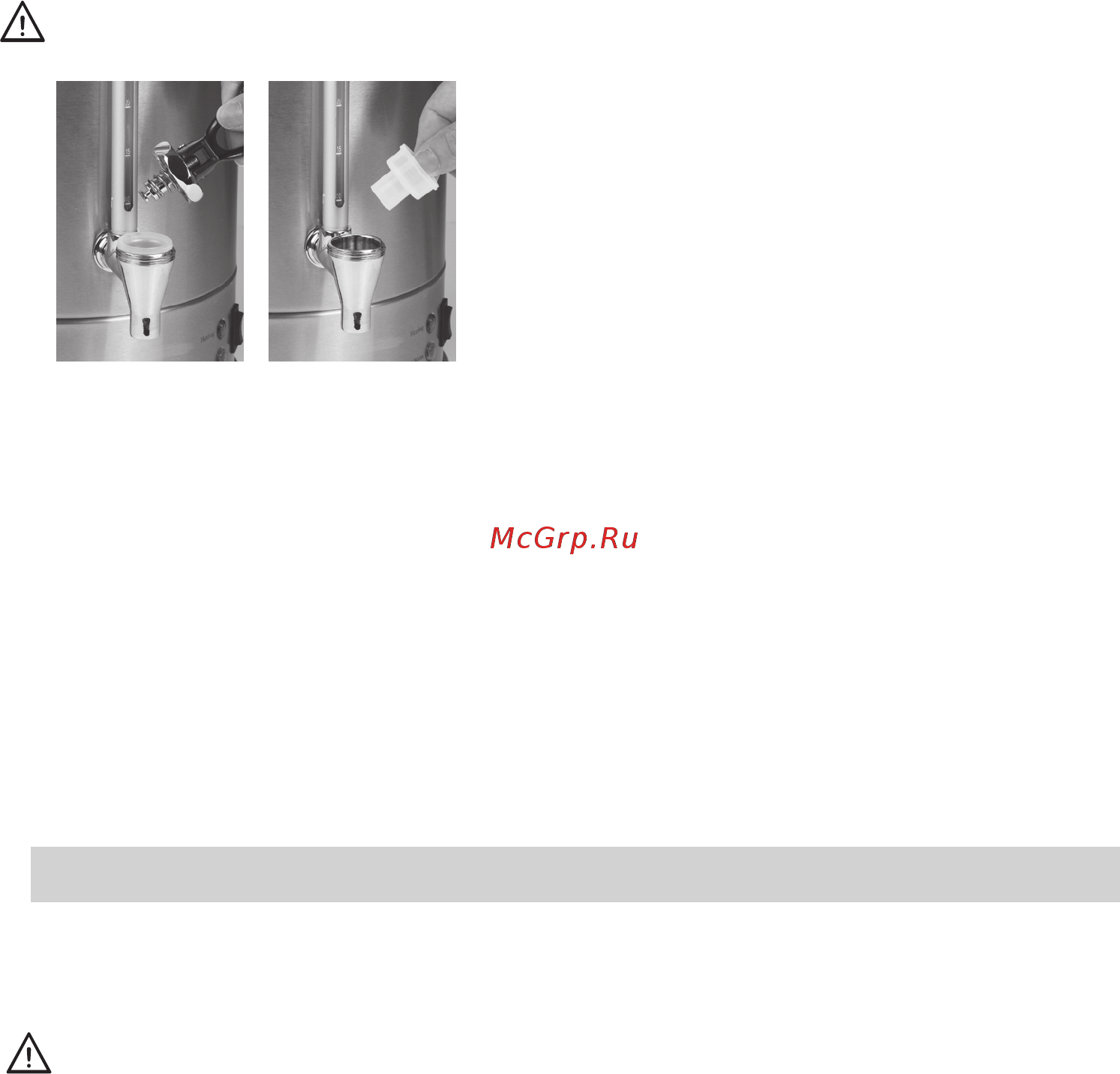

• Loosen the upper part of the tap by turning the metal ring anti-clockwise and remove it from the

tap’s base.

• Remove the seal collar.

• Clean all parts thoroughly. We recommend using a small bottle brush.

• For cleaning do not insert sharp or pointed objects into the assembled outlet tap.

Assembling the outlet tap

• Before assembly let all parts dry.

• Slide the seal collar ﬁrmly on the upper part of the tap until it locks in place.

• Set the upper part of the tap on the tap’s base and ﬁrmly screw together clockwise.

• Check for leak-tightness.

Disassembling the outlet tap

The outlet tap can be disassembled for cleaning.
