Chapter 2: Installation
2-5
DESIGNED IN USA
1.01REV:
X10SRi-F
JP3
JTPM1
JF1
JD1
J23
T-SGPIO1
T-SGPIO2
T-SGPIO3
JOH1
JL1
JPME2
JWD1
JPG1
JPB1
1
JI2C2
JI2C1
JBR1
JVRM2
JVRM1
JPL1
JSD1
JSD2
JIPMB1
JPWR1
JUIDB1
LE1
LE2
LEDM1
JBT1
BT1
F
AN4
FAN1
FAN2
F
AN3
FANA
FAN5
J24
JPI2C1
JSTBY1
S-SATA3
I-SATA4
I-SATA0
I-SATA1
I-SATA2
I-SATA3
S-SATA0
S-SATA1
S-SATA2
I-SATA5
SP1
1-2:ENABLE
2-3:DISABLE
JPB1:BMC
CPU
CPU SLOT5 PCI-E 3.0 X4(IN X8)
CPU SLOT4 PCI-E 3.0 X8
CPU SLOT3 PCI-E 3.0 X8
JPME2
2-3:ME MANUFACTURUNG MODE
1-2:Normal
USB0/1
DIMMC2
PWR LED1-3:
JD1:
SPEAKER4-7:
JBR1
1-2:Normal
2-3:BIOS recovery
:TPM/PRO80
USB8/9
USB6/7
LED
NMI
PWR
X
USB2/3
(3.0)
HDD
NIC
1
JWD1:Watch Dog
1-2:RST
2-3:NMI
LAN1
DIMMA2
DIMMA1
USB10(3.0)
FF
2
NIC
OH
LAN2
RST
PWR
PWR
FAIL
USB4/5
ON
1-2:ENABLE
2-3:DISABLE
JPG1:VGA
JI2C1/JI2C2
I2C bus for PCI-E slot
OFF:DISABLE
ON: ENABLE
PCH SLOT2 PCI-E 2.0 X4(IN X8)
PCH SLOT1 PCI-E 2.0 X2(IN X8)
COM2
COM1
DIMMB2
DIMMB1
PWR I2C
DIMMD2
DIMMD1
DIMMC1
IPMI_LAN
UID
USB11(3.0)
0N: POWER FORCE ON
JPL1:LAN1/2
1-2:ENABLE
VGA
2-3:DISABLE
LGA2011-3
1
1
CPU SLOT6 PCI-E 3.0 X16
BAR CODE
IPMI CODE
MAC CODE
BIOS
LICENSE
BIOS
Caution: 1) To avoid damaging the motherboard and its components, please do
not use a force greater than 8 lb/inch on each mounting screw during motherboard
installation. 2) Some components are very close to the mounting holes. Please take
precautionary measures to avoid damaging these components when installing the
motherboard to the chassis.

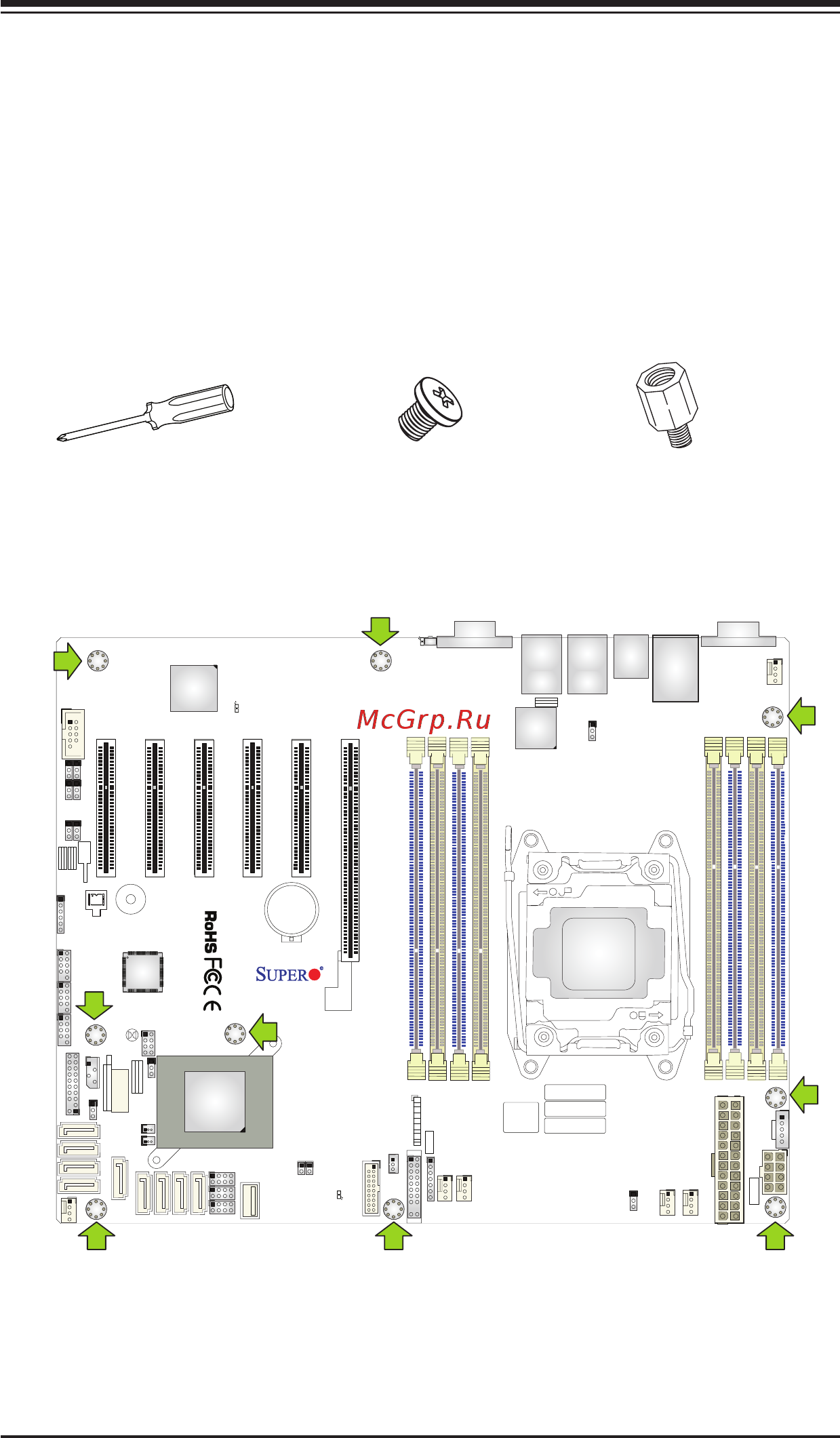

2-3 Motherboard Installation
All motherboards have standard mounting holes to t different types of chassis.
Make sure that the locations of all the mounting holes for both motherboard and
chassis match. Although a chassis may have both plastic and metal mounting fas-
teners, metal ones are highly recommended because they ground the motherboard
to the chassis. Make sure that the metal standoffs click in or are screwed in tightly.
Then use a screwdriver to secure the motherboard onto the motherboard tray.
Tools Needed
Philips Screwdriver
(1)
Standoffs (9)
Only if Needed
Philips Screws (9)
Location of Mounting Holes
