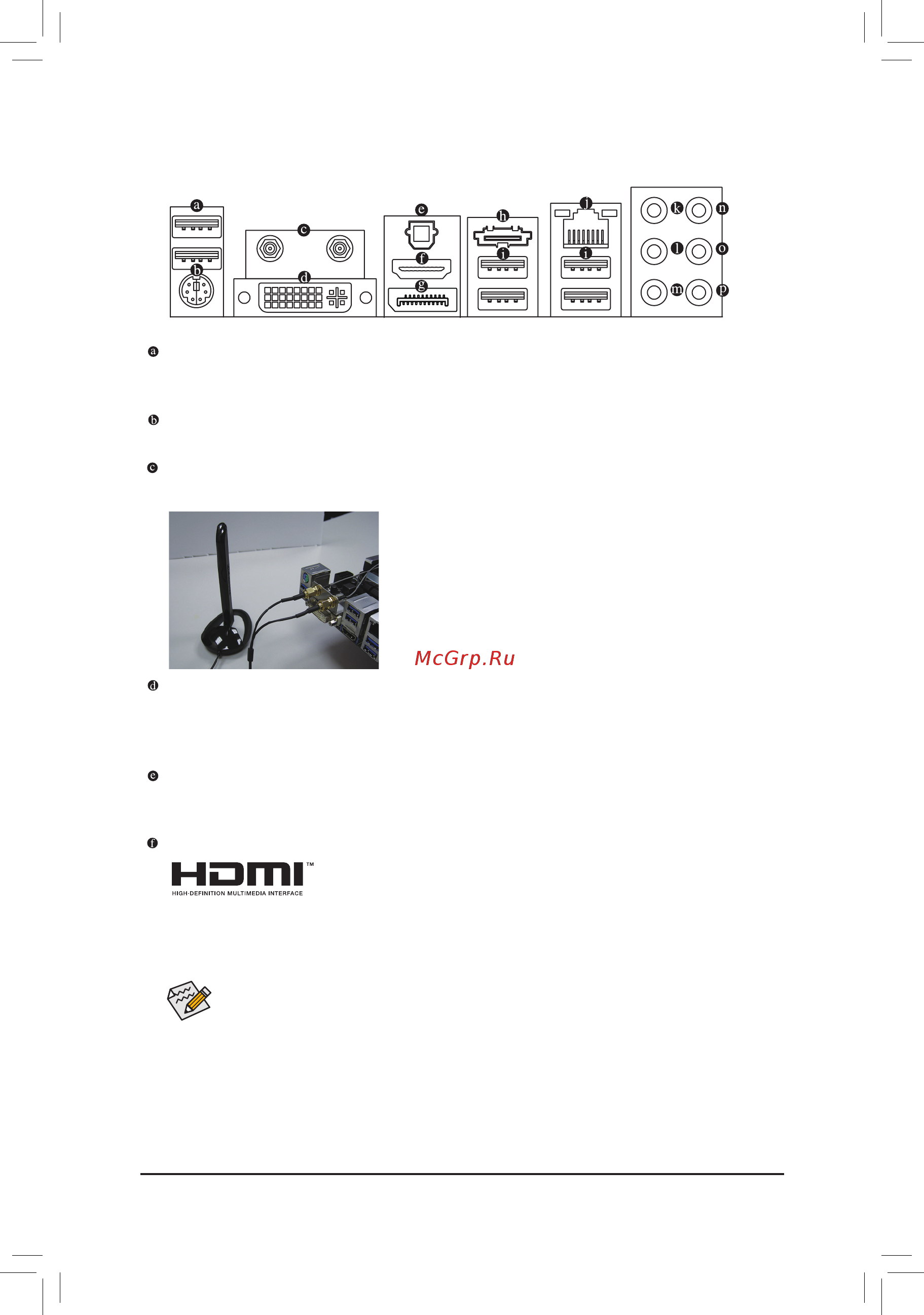

1-6 Back Panel Connectors

USB 2.0/1.1 Port

TheUSBportsupportstheUSB2.0/1.1specication.UsethisportforUSBdevicessuchasaUSB

keyboard/mouse,USBprinter,USBashdriveandetc.

PS/2 Keyboard/Mouse Port

Use this port to connect a PS/2 mouse or keyboard.

(theactualresolutionssupporteddependonthemonitorbeingused).Connectamonitorthatsupports

DVI-I connection to this port.

Optical S/PDIF Out Connector

This connector provides digital audio out to an external audio system that supports digital optical audio.

Before using this feature, ensure that your audio system provides an optical digital audio in connector.

HDMI Port

The HDMI port is HDCP compliant and supports Dolby True HD and DTS HD

MasterAudio formats. It also supports up to 192KHz/24bit 8-channel LPCM

audio output. You can use this port to connect your HDMI-supported monitor. The maximum supported

resolutionis4096x2160@24Hzor2560x1600@60Hz,buttheactualresolutionssupportedare
