ROG STRIX Z270H GAMING
2-15
Chapter 2
2.2 Motherboard rear and audio connections
2.2.1 Rear I/O connection

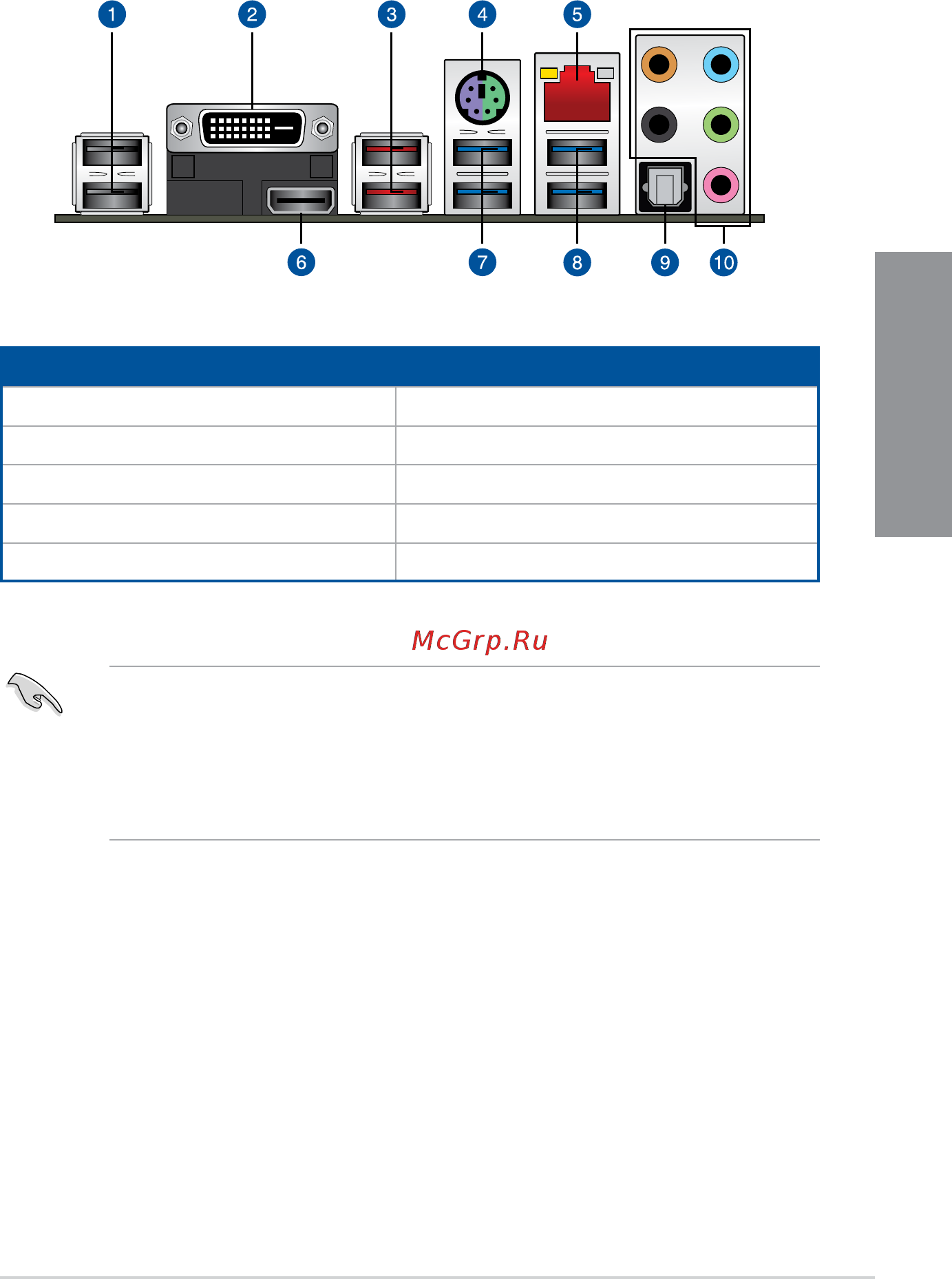

Rear panel connectors
1.
USB 2.0 ports 1314 6. HDMI 1.4b
2.
DVI-D port 7. USB 3.0 ports 12
3.
USB 3.1 Type-A port EA12 8. USB 3.0 ports 34
4.
PS/2 keyboard/mouse combo port 9. Optical S/PDIF Out port
5. Intel
®
LAN port (LAN1)* 10. Audio I/O ports**
* and ** : Refer to the tables on the next page for LAN port LEDs and audio port definitions.
• ThepluggedUSB3.0devicemayrunonxHCImodeorEHCImode,dependingonthe
operating system’s setting.
• USB3.0devicescanonlybeusedasdatastorageonly.
• WestronglyrecommendthatyouconnectUSB3.0devicestoUSB3.0portsforfaster
and better performance for your USB 3.0 devices.
