ROG STRIX Z270H GAMING
2-17
Chapter 2

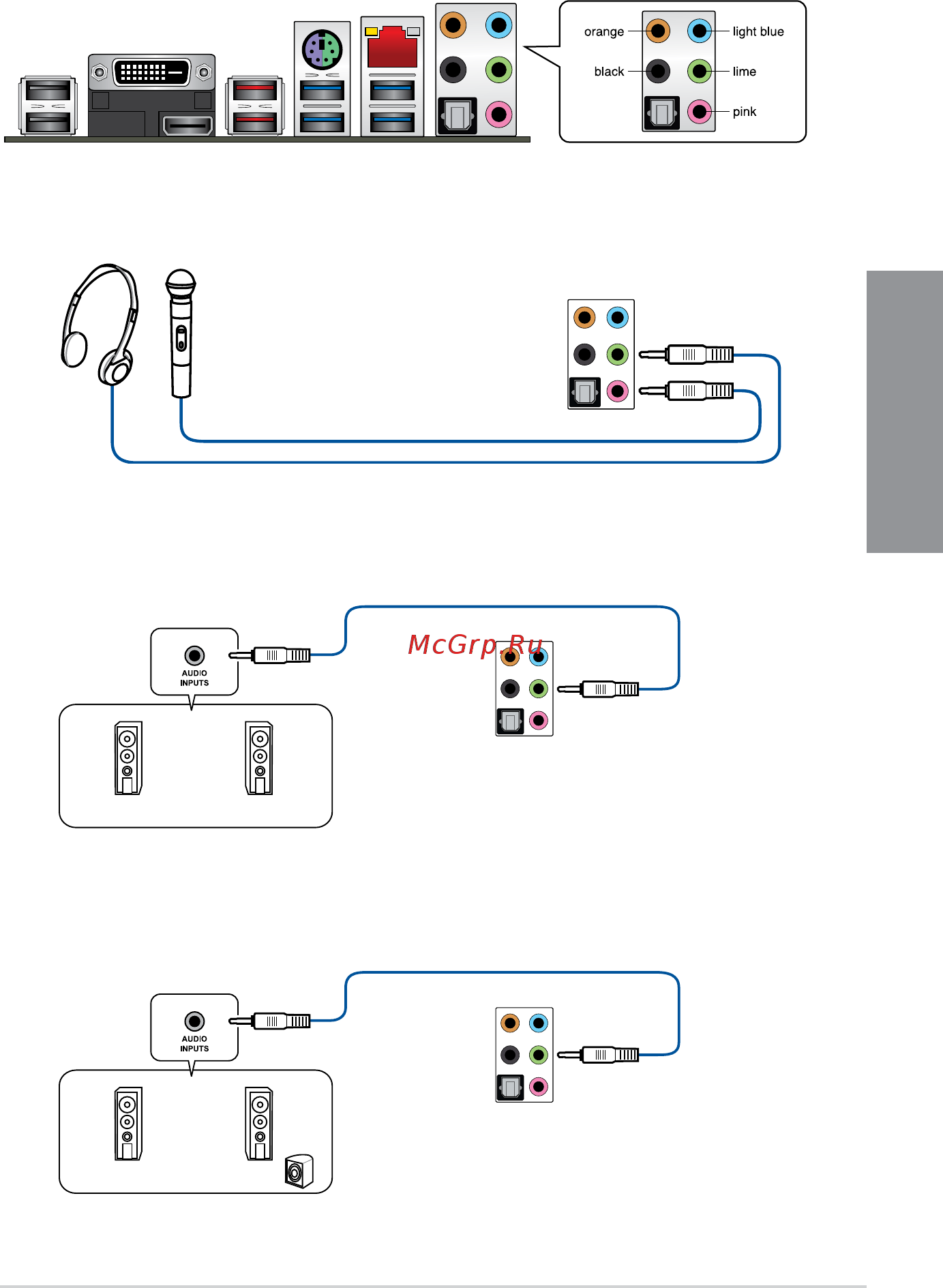

Connect to Headphone and Mic
Connect to Stereo Speakers
2.2.2 Audio I/O connections
Audio I/O ports
Connect to 2 channel Speakers
