Asus ROG Rapture GT-AC5300 [21/152] Dash board

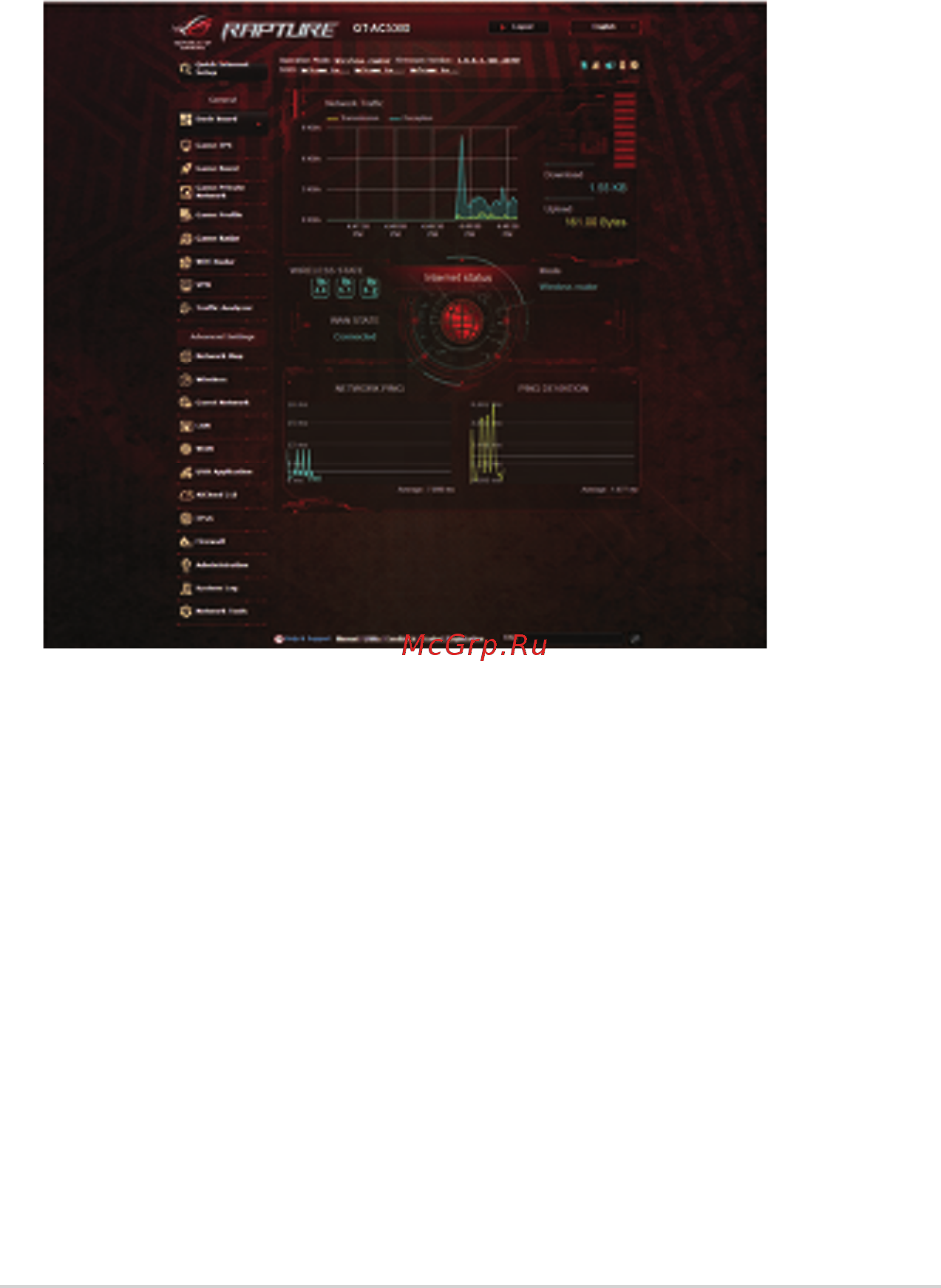

3.2 Dash Board

Dash Board allows you to monitor the real-time traﬃ c for your

networking environment and analyze the real-time network ping

and ping deviation.

Network ping refers to online game experiences. Higher ping

means higher latency for real-time games. For most online

games, network ping less than 99 ms is considered good quality.

If network ping that is less than 150 ms, quality is acceptable.

Generally, if network ping is more than 150 ms, it is hard to play

game smoothly.

Ping deviation is also highly related with online game experiences.

With higher ping deviation, it is much easier causing possible

toggle when playing online game. There is no baseline for ping

deviation. However, lower ping deviation is better.
