Asus ROG Rapture GT-AC5300 [31/152] Game boost

3.4 Game Boost

This feature allows you to enable Game Boost with one click.

When Game Boost is enabled, GT-AC5300 puts the gaming

packet as the top priority to provide you with the best gaming

experience.

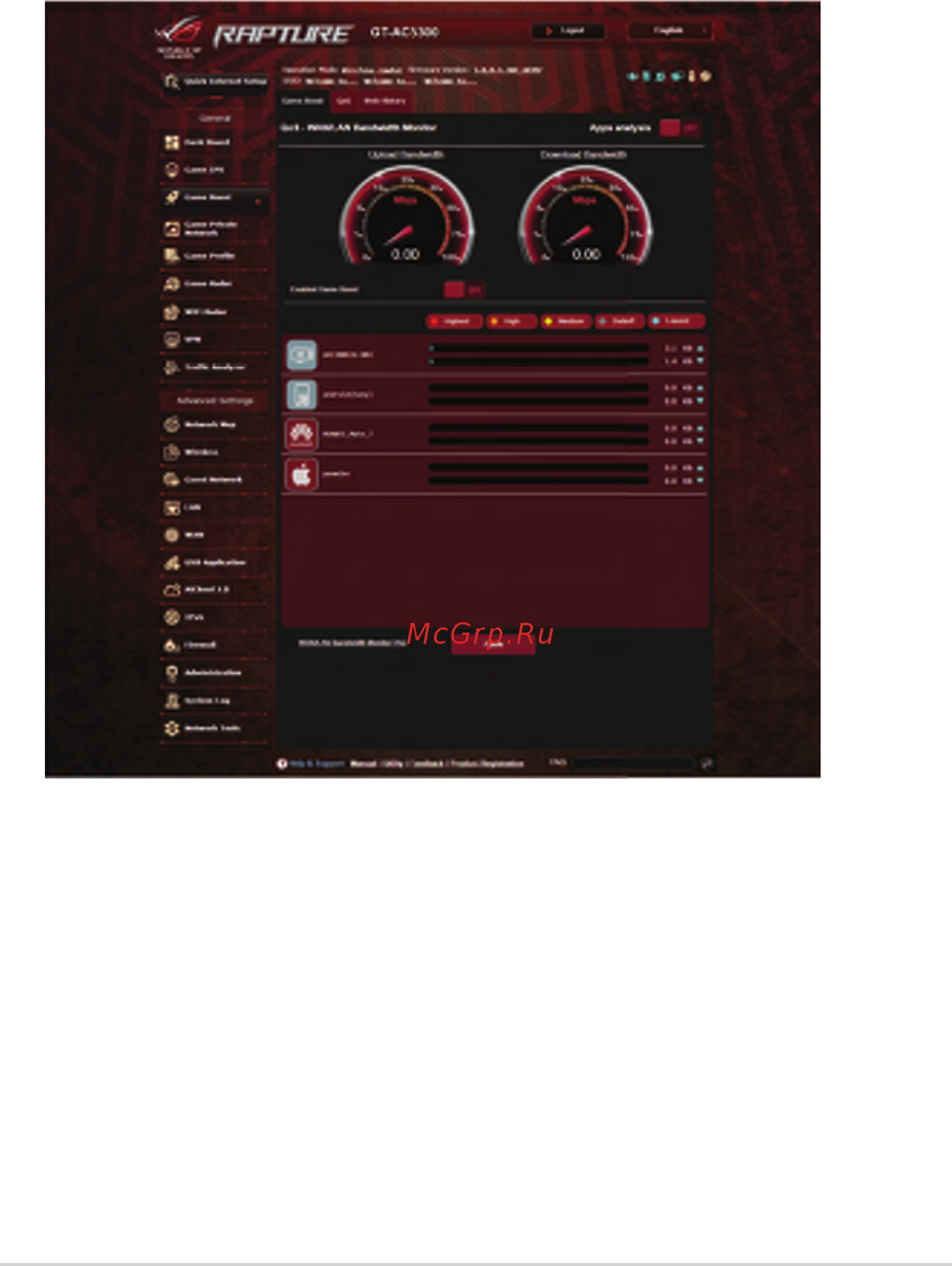

Apps analysis

To enable Apps analysis:

From the Game Boost tab, go to the Apps Analysis pane, and

click ON.
