3.7 Game Radar

Game Radar is a diagnostic tool that helps you identify the

connection quality of servers for speciﬁc games.

To use Game Radar:

1. From the navigation panel, go to General > Game Radar and

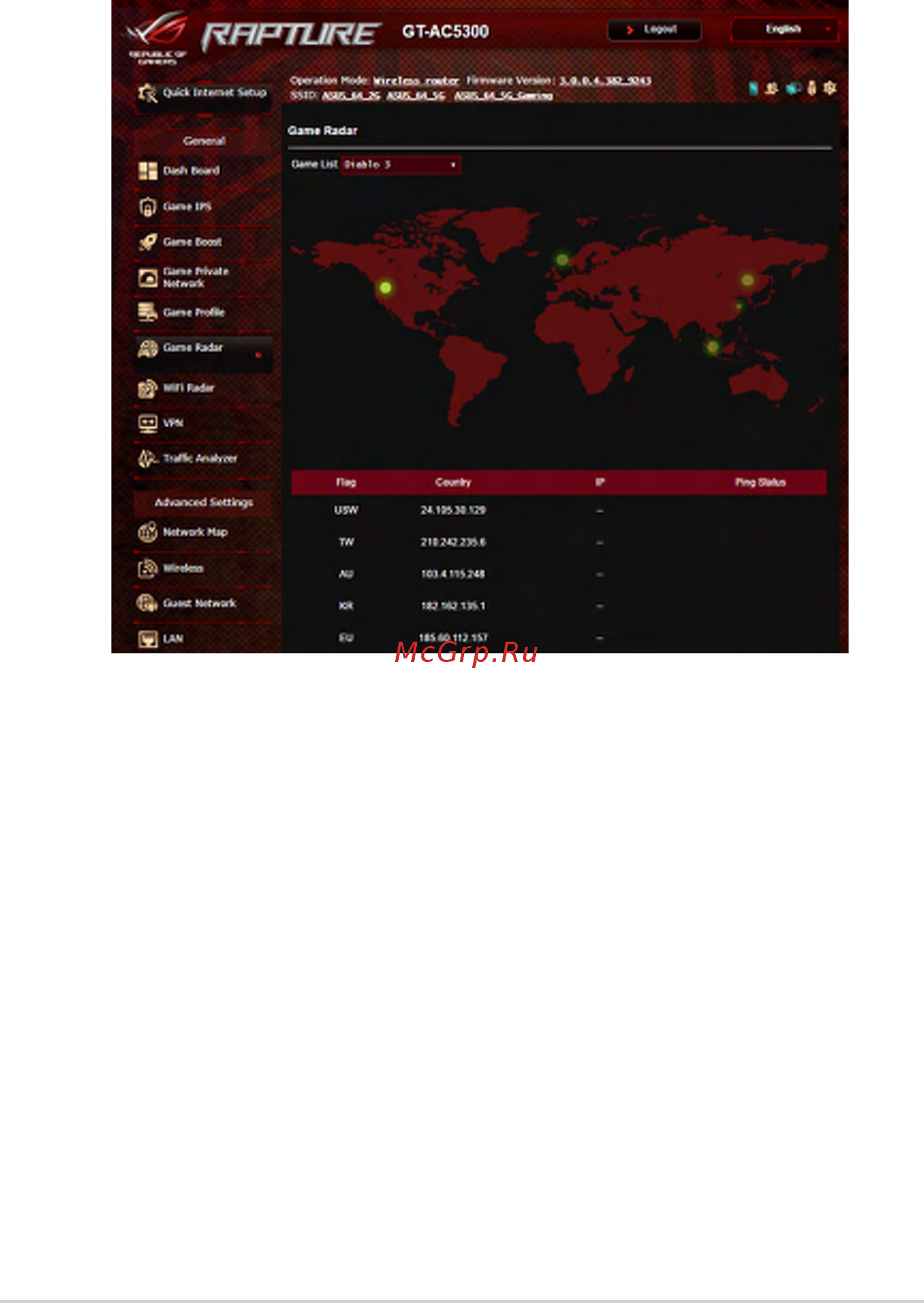

select a game from the game list.
