2.5.6 Changing the feed rolls

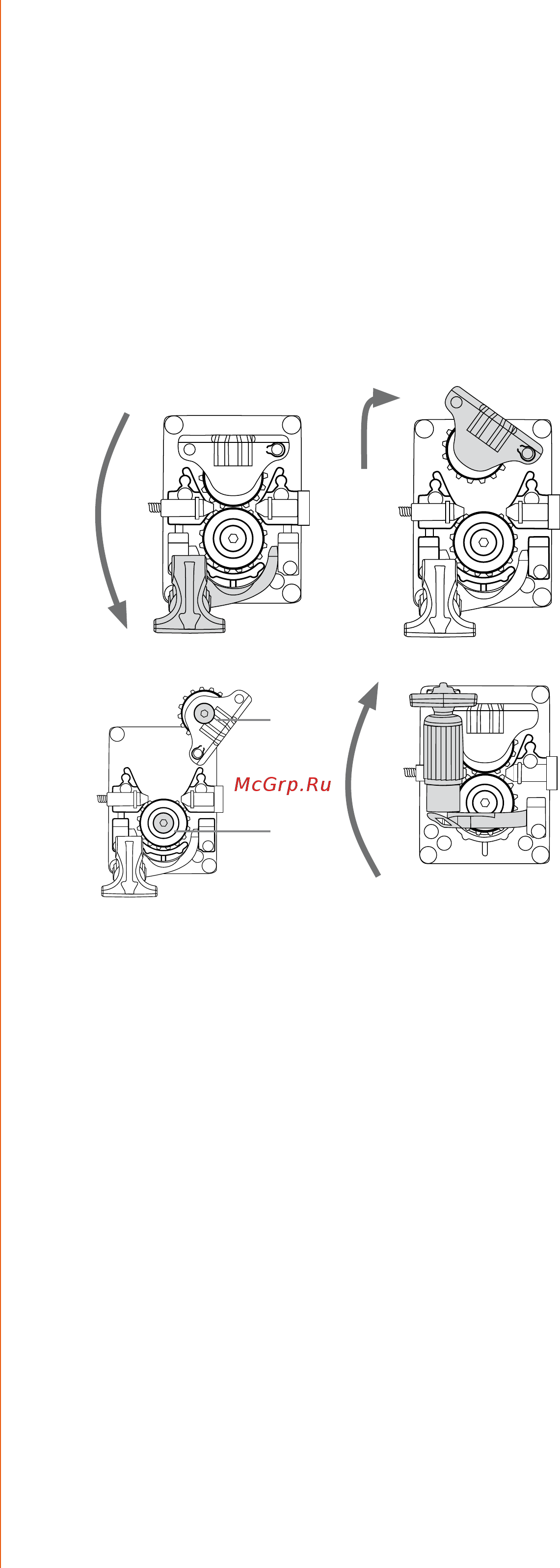

To change the feed rolls:
1. Pull and release the pressure tension arm via the aluminium head above the orange
plastic adjuster.
2. Lift the upper feed roll on its pivot to the maximum open position.
3. Pull out mounting pin of the upper feed pressure roll and replace the roll with a new one.
4. Open the locking screw of the lower feed roll and replace the roll with a new one.
5. Return the upper pressure feed roll to its down position and replace the locking arm
latch.
6. Adjust the pressure tension as instructed in the earlier section.
1.
2.
3.
4.
5.
When using hard, ux-cored ller wires you should select a knurled feed roll to achieve better
grip.
