2. USING THE MACHINE

2.1 Before use

The product is packed in cartons designed specically for them. However, always make sure

before use that the products have not been damaged during transportation.

Check also that you have received the components you ordered and the instruction manuals

needed, as described in the Quick start guide. Product packaging material is recyclable.

Please also read the Safety Instructions included with the package before use.

NOTE! When moving the welding machine, always lift it from the handle, never pull it from the

welding gun or other cables.

Operating environment

This machine is suitable for both indoor and outdoor use. Always make sure that the air ow in

the machine is unrestricted. The recommended operating temperature range is -20 ... +40 °C.

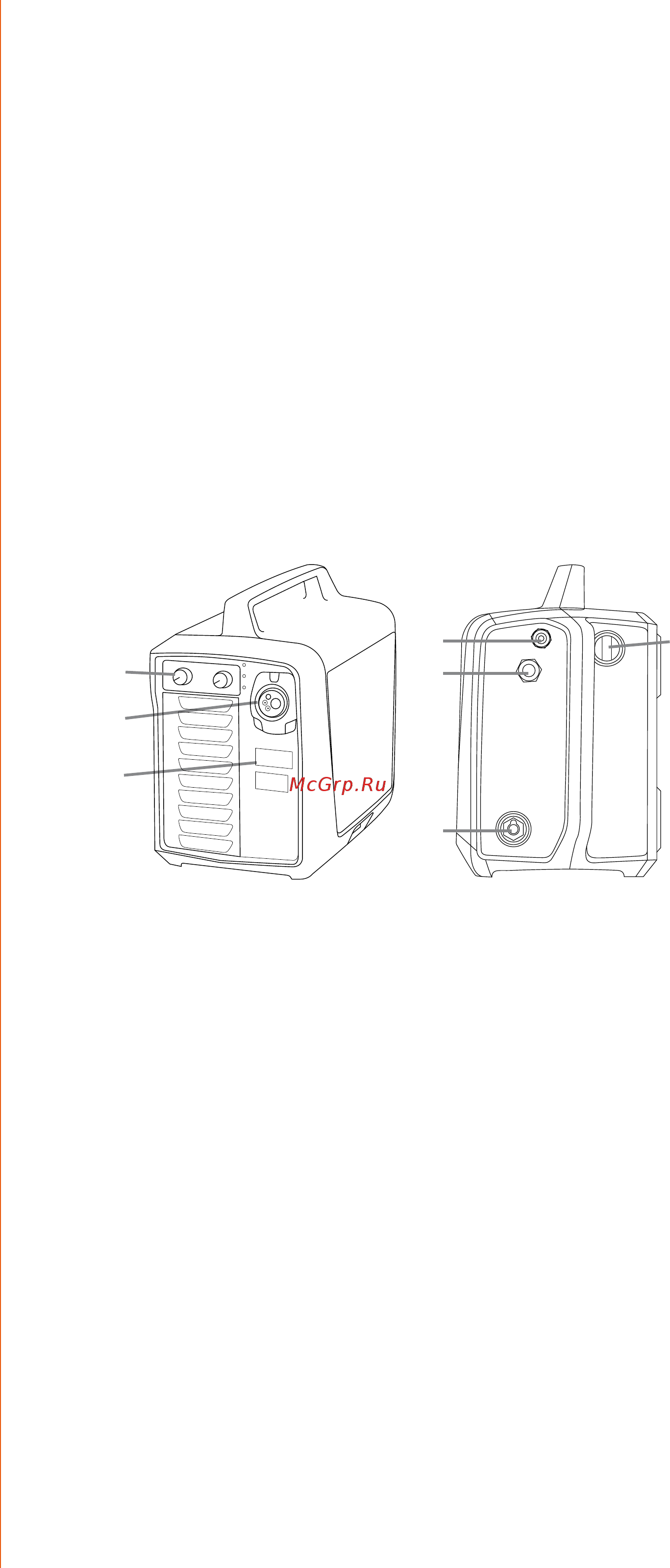

2.2 Machine introduction

1. ON/OFF

2. Mains supply cable

3. Earth return cable

4. Shielding gas connector

5. EURO gun connector

6. Meter displays

7. Control knobs

2.3 Distribution network

All regular electrical devices without special circuits generate harmonic currents into

distribution network. High rates of harmonic current may cause losses and disturbance to

some equipment.

This equipment complies with IEC 61000-3-12 provided that the short-circuit power Ssc

is greater than or equal to 1.9 MVA at the interface point between the user’s supply and

the public supply network. It is the responsibility of the installer or user of the equipment

to ensure, by consultation with the distribution network operator if necessary, that the

equipment is connected only to a supply with a short-circuit power Ssc greater than or equal

to 1.9 MVA.

2.4 Connecting cables

Before you can start welding with FitWeld Evo 300, you must connect the machine to the

mains power supply, attach the welding gun and the earth return cable and the shielding

gas supply. You must also equip the machine with a ller wire spool suitable for your welding

application.
