2.6 Controlling welding functions

With FitWeld Evo 300 you can easily control welding parameters, change the welding polarity

and gun operating mode.

The control panel provides two adjustment knobs. You can set the desired welding voltage

and wire feed speed before or during welding, so easily tuning the desired arc performance to

the weld.

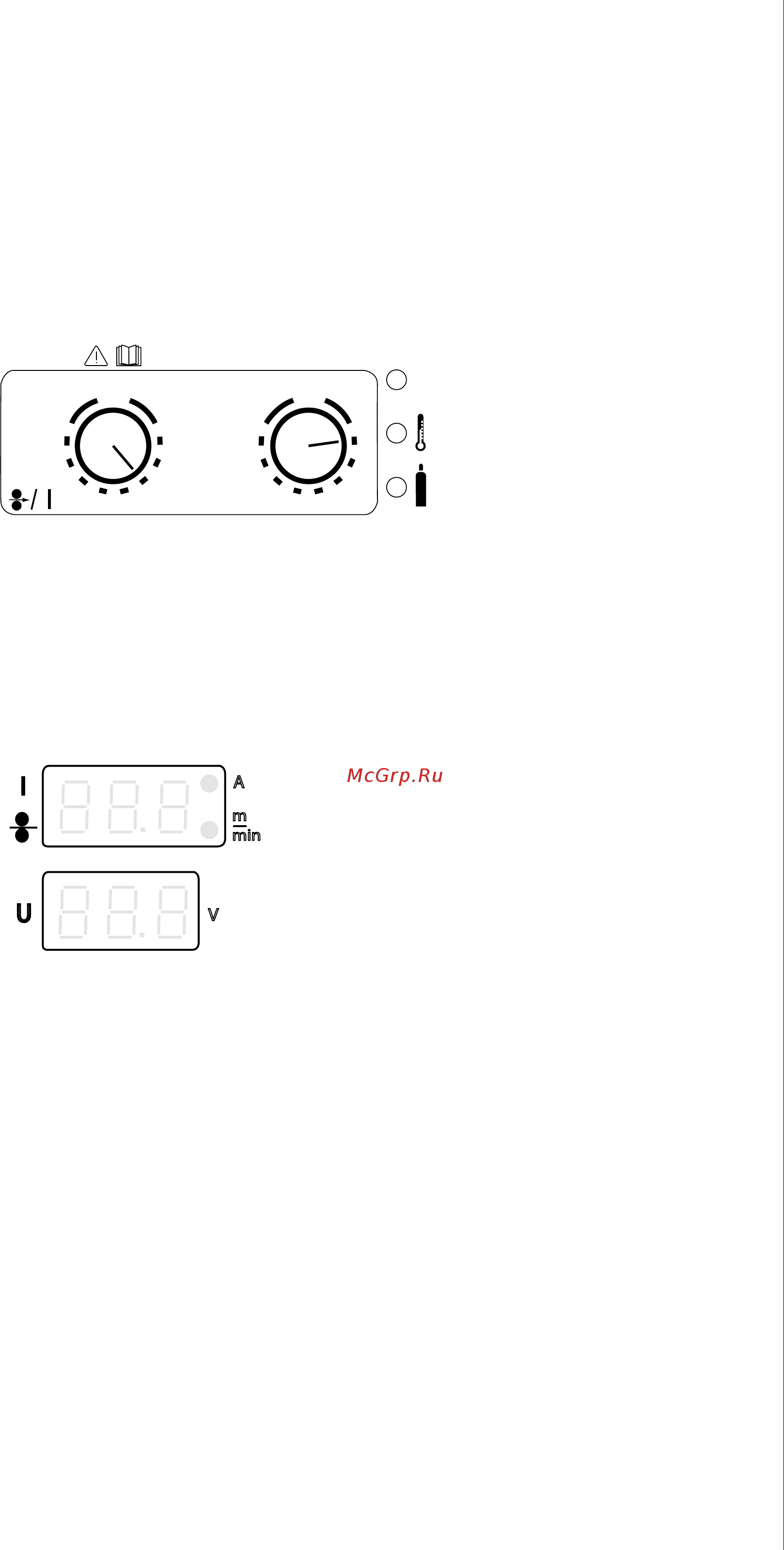

2.6.1 Control panel functions

W003793

FitWeld

With the left-hand control knob, set the value for ller wire feed speed. The maximum value is

18 meters per minute.

With the right-hand control knob, set the welding voltage. Adjustment range is from 11V to

32V.

The leds on the front panel indicate the following (from top to bottom):

• Machine is turned on

• Machine is overheated

• Error in shielding gas ow

min

The leds on the right hand side of the upper meter display indicate the showed variable, either

A or m/min. When not welding, the meter displays will show the selected wire feed speed

and voltage. When welding, the meter displays will show the actual current and voltage.

The parameters can be adjusted during welding and the meter displays will show the new

selected value. After welding the meter displays will briey show an average value of the

actual current and voltage.
