www.timberk.com • electrical storage water heater

Water heater mounting methods

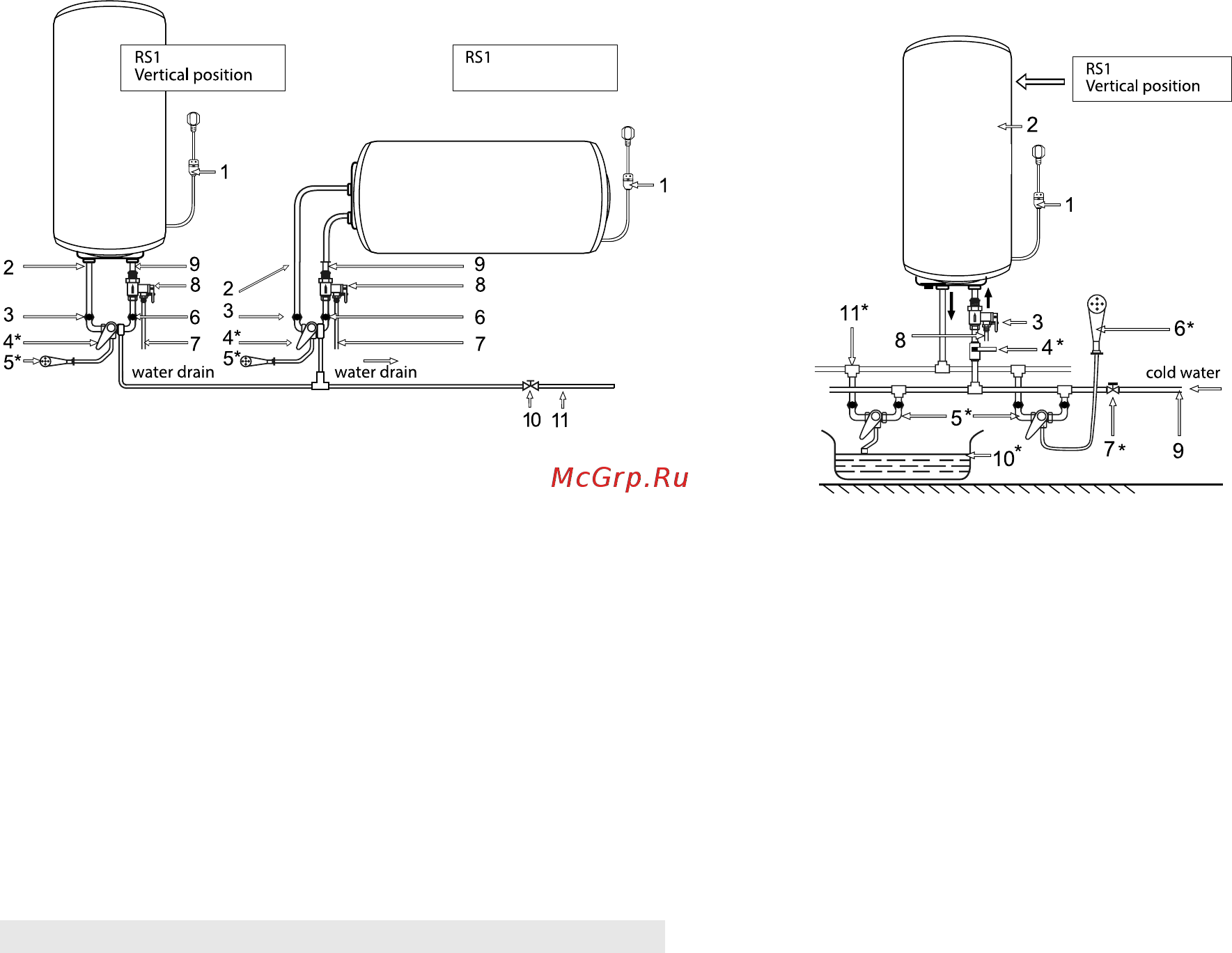

Fig. 4 shows the way to mount the water heater for one consumption point.

Fig. 4

1 – power cord with a plug and GFCI**

2 – outlet nozzle

3 – hot water flow adjustment tap*

4 – mixer*

5 – shower header*

6 – cold water supply adjustment tap

7 – discharge pipe

8 – composite pressure safety valve

9 – inlet nozzle

10 – water main shut-off valve*

11 – water main

* not included in the scope of delivery

** depending on the product batch, GFCI can be located not within the power cable electric plug

Horizontal instaltion

Fig. 5

1 – composite pressure safety valve

2 – cold water inlet tap*

3 – mixer*

4 – shower header*

5 – water main shut-off valve

6 – discharge pipe

7 – water main

8 – tub*

9 – T-bend

* not included in the scope of delivery

** depending on the product batch, GFCI can be located not within the power cable electric plug

Water heater mounting methods

Fig. 5 shows the way to mount the water heater for several consumption

points.
