IMPORTANT!

The water heater must be mounted on a vertical wall

only the position, specified in Fig. 2. Mounting of the

appliance in any other position or vertical or tilting will

inevitably result in failure of the water heater, emergency

situation and is considered a non-guarantee case by the

manufacturer.

3. If a bathroom is too small, the water heater can be installed elsewhere,

unexposed to direct sunlight and unavailable for moisture. However, to

reduce heat losses in pipelines, the location, where a water heater is to be

installed, must be as close to the place, where hot water is used, as possible.

1. Power cable with GFCI

2. Water outlet

3. Hot water supply adjustment cock*

4. Mixer*

5. Shower header*

6. Cold water supply adjustment cock*

7. Discharge pipe

8. Composite pressure-relief valve

9. Water inlet

10. Magnesium anode – water discharge nozzle

11. Water main shut-off valve

12. Water main

Water heater mounting methods

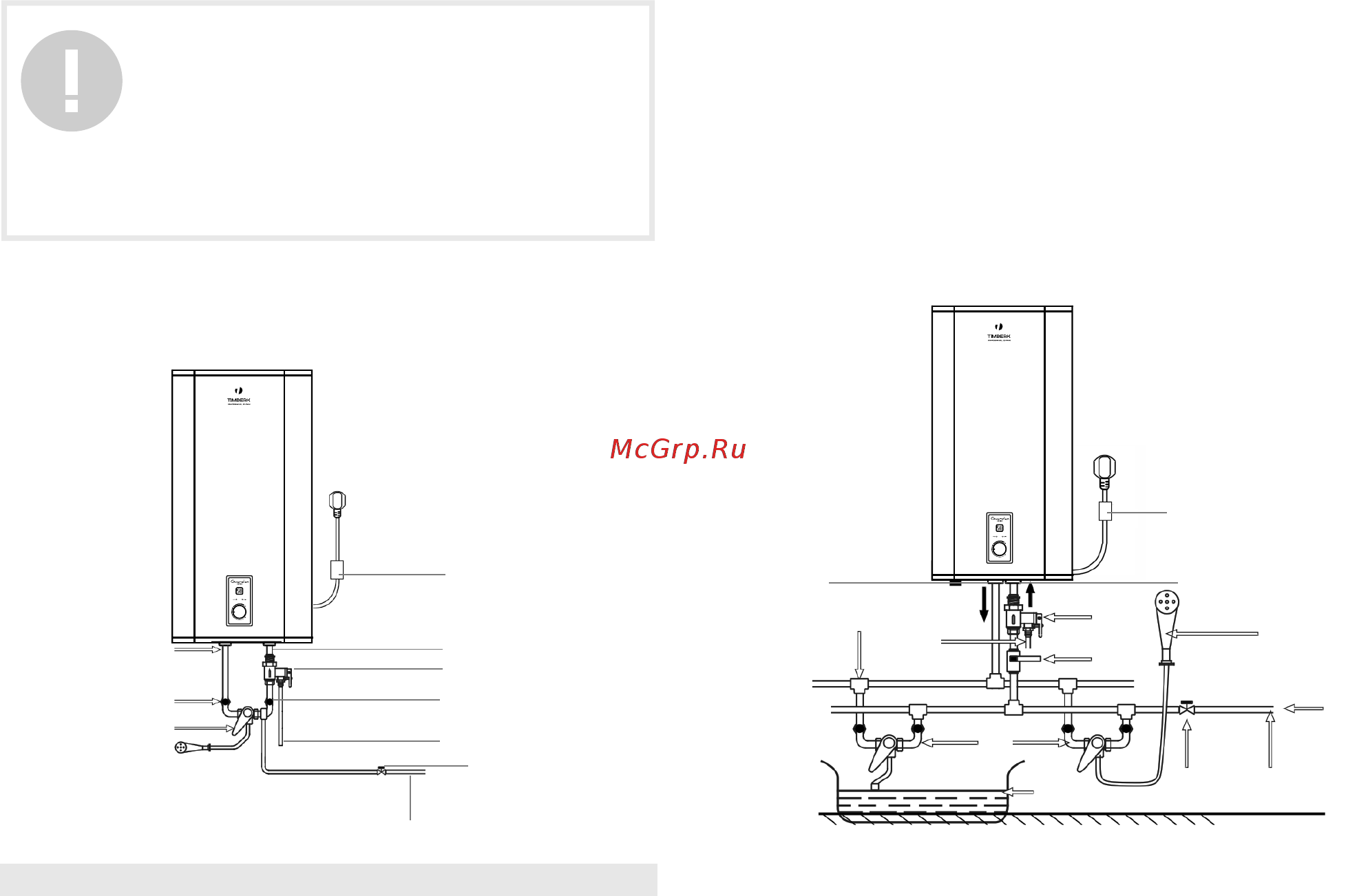

Fig.3 shows the way to mount the water heater for one consumption point.

Fig. 3

Fig. 4 shows the way to mount the water heater for one consumption point.

Fig. 4

water drain
