TSC MH240 [19/73] For mh240 mh240t series
![TSC MH240 [19/73] For mh240 mh240t series](/views2/1244192/page19/bg13.png)
- 10 -

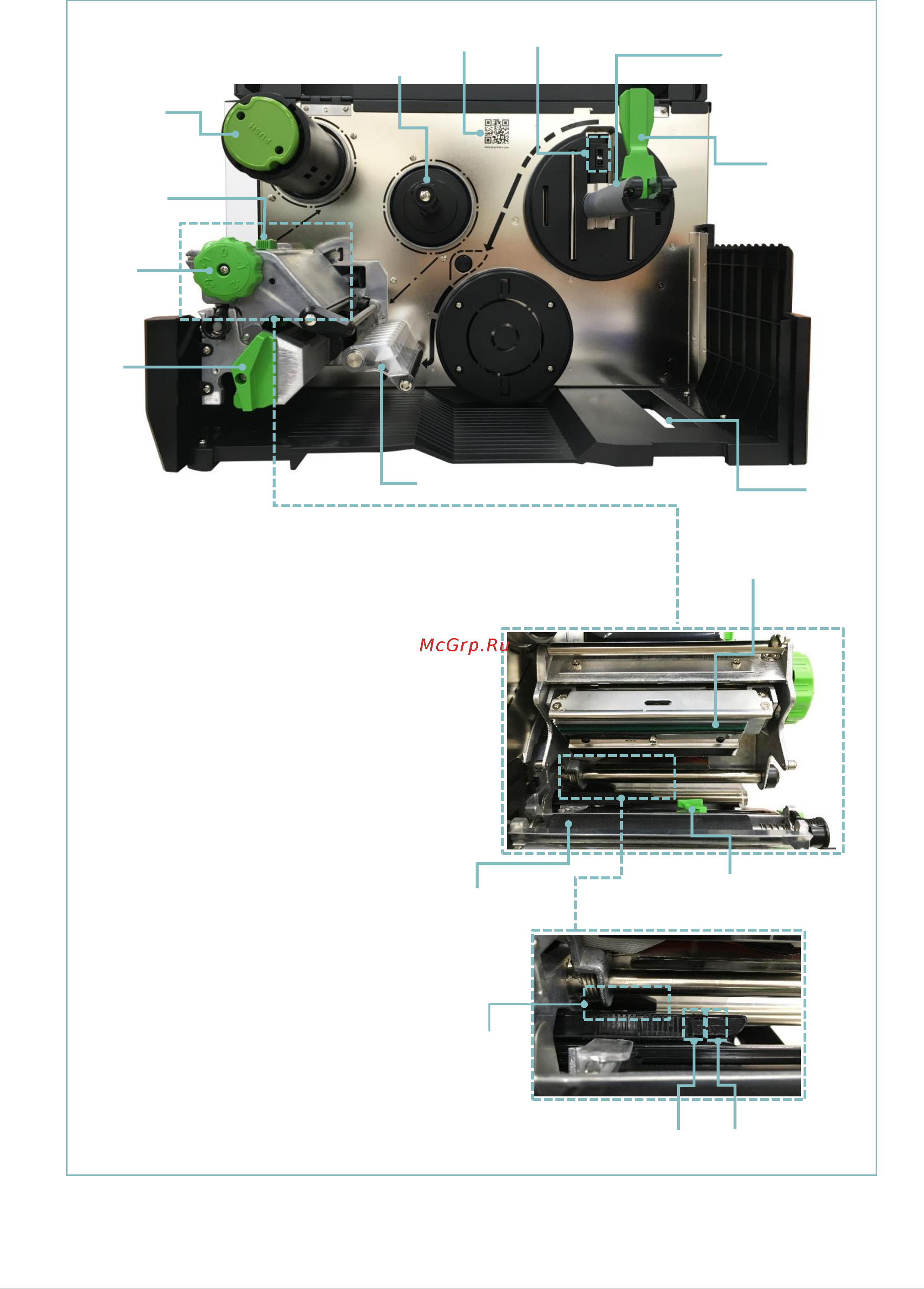

2.2.2 Interior view
For MH240 & MH240T Series
1. Ribbon rewind spindle
2. Print head pressure position adjustment knob
3. Print head pressure adjustment knob
4. Print head release lever
5. Ribbon supply spindle
6. TSC website QR Code
7. Media near end sensor
(movable, MH240T Series only)
8. Label supply spindle
9. Label roll guard
10. External label entrance chute
11. Damper
12. Print head
13. Platen roller
14. Ribbon sensor
15. Black mark sensor (shown as↓)
16. Gap sensor (shown as ▽)
17. Front label guide
15
16
12
13
17
14
11
2
1
3
4
7
5
9
10
8
6
