Quick Installation Guide
Printer Overview

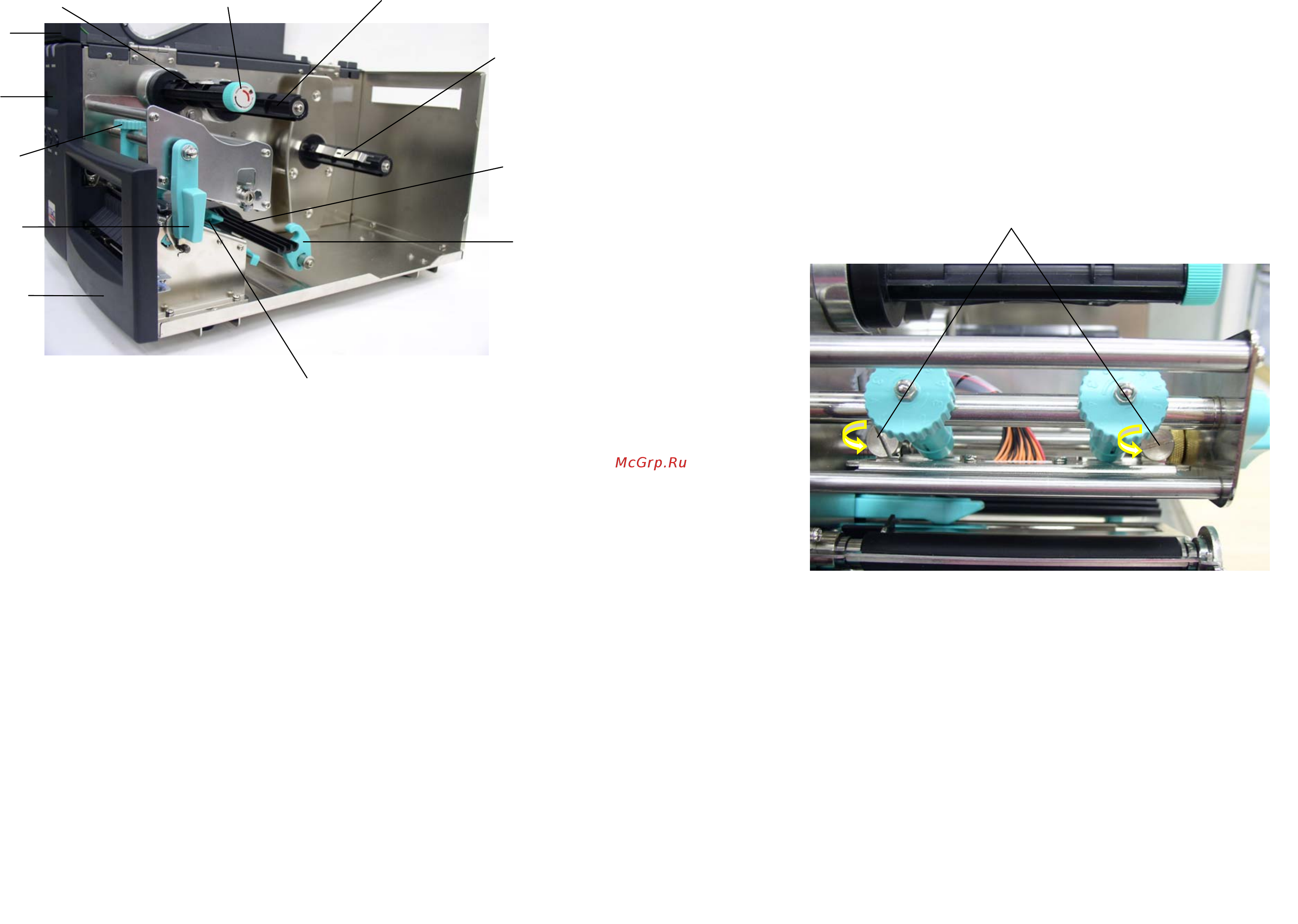

Figure 1. Printer Overview
* The ribbon tension adjustment knob offers 6 levels of tension to adjust for different widths of
ribbon. Turn the ribbon tension knob clockwise and you will hear a light click sound as the gear
changes. The level of rewind ribbon is from loose to tight, level 0 to level 5. You will hear a
louder click for level 1.
** The print head pressure adjustment knob has 5 levels of adjustment. Because the
printer’s paper alignment is to the left side of mechanism, different media widths require
different pressure to print correctly. Therefore it may be necessary to adjust the pressure
knob to get your best printout quality. For example, if the label width is 4”, adjust both print
head pressure adjustment knobs to the same level. If the label is less than 2” wide, increase
the left print head pressure adjustment knob and decrease the right side pressure to level 1.
*** The print head adjustment knobs are used to fine tune print quality for different thicknesses
of media. Turning the knobs adjusts the print head’s burn line forward or backward as it relates
to the platen roller. Caution: incorrectly adjusting these knobs can lead to poor print
quality and may cause damage to the printer. Proceed with caution.
The print head burn line default is set for general purpose printing media (plain paper and paper
thickness less than 0.20mm). The adjustment knobs default is screwed to the end of thread.
Poor print quality when using paper thicker than 0.20mm may be due to the print head burn line
not being at the optimized position. To correct this, increase the head pressure and adjust the
knobs counter-clockwise to move print head burn line forward then print again. Continue to
adjust and test print as necessary until the image is clear.
Note: The print head moves 0.7 mm for each 360 degree turn.
Figure 2. Print head adjustment knobs
Hardware Installation
1. Connect the printer to a computer with a printer cable.
2. Plug the power cord into the power jack at the rear of the printer, then plug the cord into a
properly grounded outlet.
Ribbon Supply Spindle
Ribbon Rewind Spindle
Label Spindle
Label Guide
Lower Front Panel
Right Side Cover
LCD Screen
**Print Head
Pressure
A
djustment Knob
Media Guide Bar
Print Head Lift
Lever
*Ribbon Tension
Adjustment Knob
Gap / Black Mark
Sensor Assembly
Page 1 of 2
***print head adjustment knobs
