TSC MH240 [42/73] Mechanism fine adjustment to avoid ribbon wrinkles

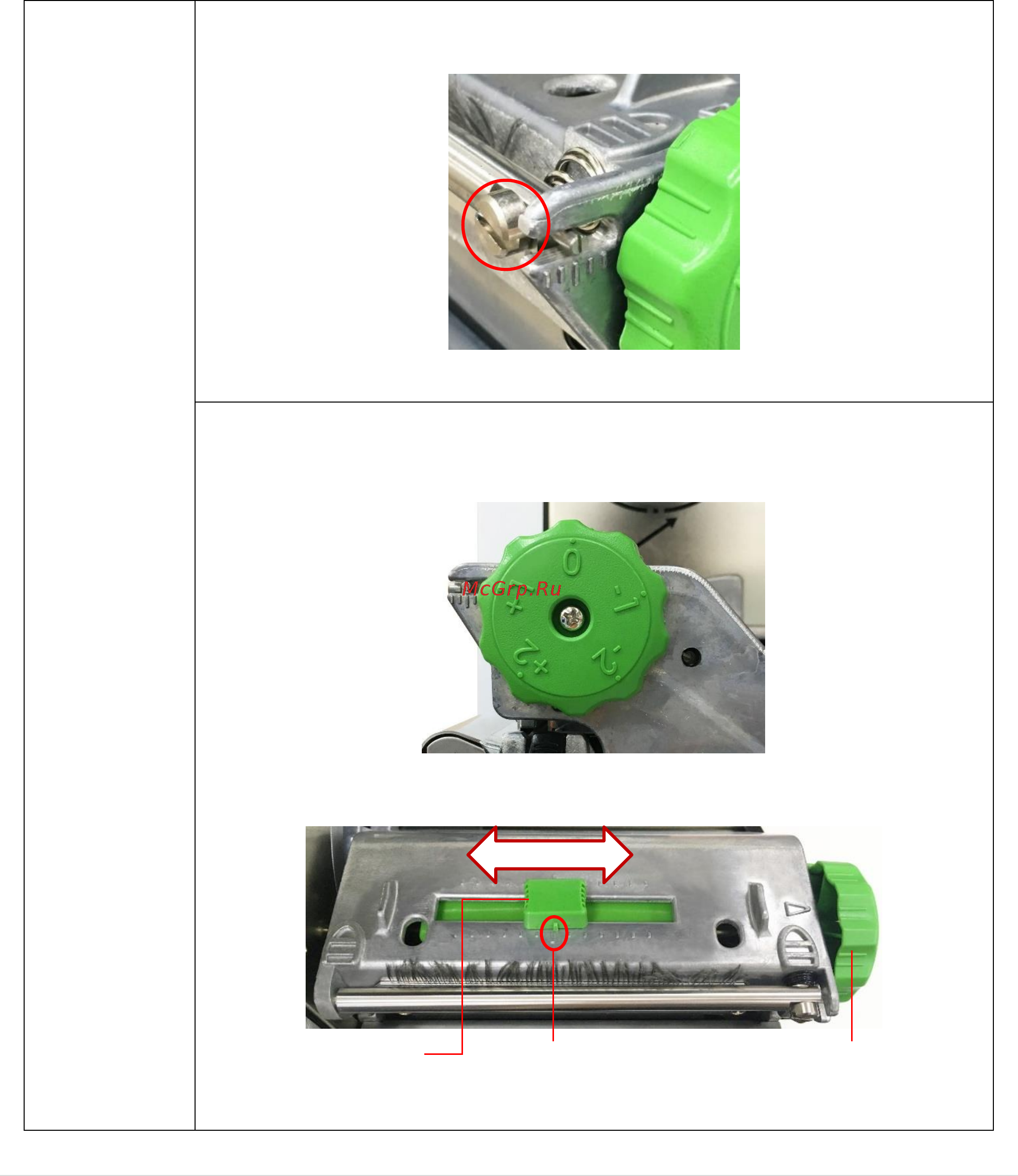

![TSC MH240 [42/73] Mechanism fine adjustment to avoid ribbon wrinkles](/views2/1244192/page42/bg2a.png)
- 33 -
4.3 Mechanism Fine Adjustment to Avoid Ribbon Wrinkles
This printer has been fully tested before delivery. There should be no ribbon wrinkle
presented on the media for general-purpose printing application. Ribbon wrinkle is related
to the media width, thickness, print head pressure balance, ribbon film characteristics, print
darkness setting…etc. In case the ribbon wrinkle happens, please follow the instructions
below to adjust the printer parts.
Adjustable
Printer
Parts
Ribbon Tension Adjustment Knob has 5 positions for adjustment. Use flat blade driver to
change the ribbon tension position.
The Print Head Pressure Adjustment Knob has 5 levels of settings. Switch the Print head
Pressure Adjustment Knob and cooperate with the Print Head Pressure Position
Adjustment Knob to adjust the pressure and position on print head.
Ribbon Tension Adjustment Knob
Print head pressure
position adjustment knob
Print head pressure
adjustment knob
Movable
Default setting
Print Head Pressure Adjustment Knob
