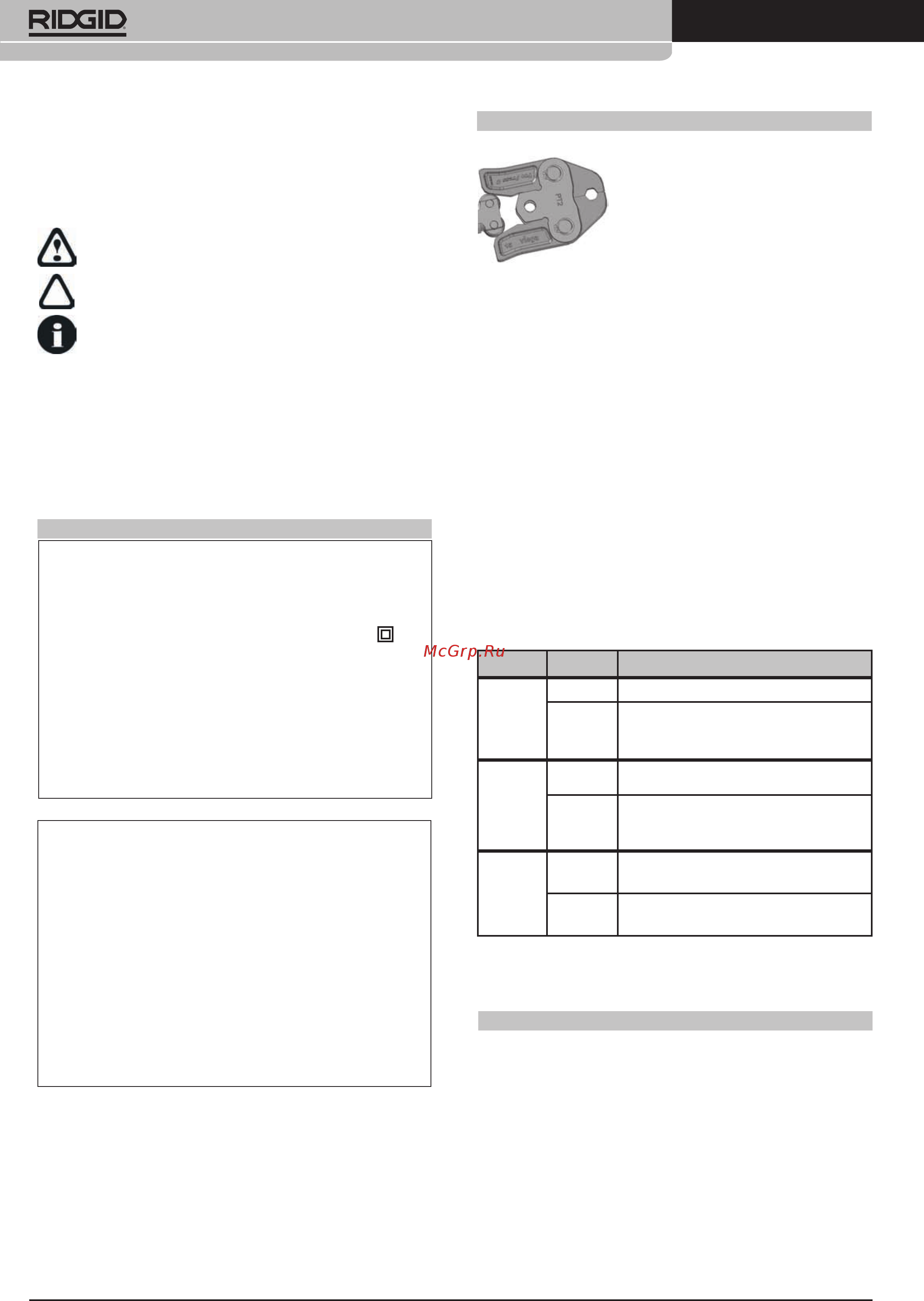

Tools For The Professional

RP 340B, RP 340C

6) Service

a. Have your power tool serviced by a qualified repair person using only identical re-

placement parts. This will ensure that the safety of the power tool is maintained.

2.2 Marked parts of these operating instructions

Read and always observe the safety instructions in these operating instructions. The safety

instructions are marked like this:

Failing to observe an instruction marked with this sign may lead to serious injury or

death.

Failing to observe an instruction marked with this sign may damage the machine or

cause damage to property.

Marks any additional information or special instructions.

Lists

Whentheinstructionsaresimplylistedtheyaremarkedbya•beforetheline:e.g.:

1st line •

2nd line•

Step-by-step instructions (where you have to do some-thing) are marked by a flash

before the line: X

1st step X

2nd step X

The sequence of the step numbers is binding.

3. Technical data

4. Device description and basic mode of operation

4.1 Basic mode of operation

The Pressing Tool operates electro-hydraulically. The hydraulic

pump is driven by means of an electric motor. The hydraulic fluid

pressure acts on the drive piston at one side, and the press rolls

(5) are attached to the piston rod of this piston. The press rolls

produce the pressing action as the result of the force being di-

verted via the cams of the press jaw (7).

4.2 Electronic monitoring and LED indicators

The Pressing Tool is monitored electronically in order to protect against tampering and in order

to ensure perfect pressing results. The status of any malfunctions are indicated by light-emitting

diodes (LEDs) (2).

The following are monitored:

Retaining pin •

Pressing time •

Voltage/rechargeable battery capacity •

Servicing interval •

Operating temperature•

Status indications after switching on the Pressing Tool:

Connect the RP 340-C with mains adapter to the mains X

Slide the rechargeable battery into the RP 340-B X

Press the „ON-OFF“ switch (1) X

The LED (2) indicator lights while the „ON-OFF“ switch is pressed in order to check the function of

the three LEDs.

„ON-OFF“ switch

The machine can be switched on and off at any time with the „ON-OFF“ switch (except during a

crimp cycle). If the machine is not used while it is in ON state, the electronic circuitry switches the

machine to OFF state after 10 minutes.

4.3 Status indication

4.4 Mechanical construction of the Pressing Tool

See explanation on following page.

5. Field of application

The Pressing Tool with RIDGID Standard Pressing Attachments or other Standard Pressing Attach-

ments available in the market is suitable for use with all plumbing and heating systems up to

size 54 mm or even up to 108 mm if the system requires 32kN crimp force. The Pressing Tool with

RIDGID Standard VIEGA Attachtments is suitable for use with all VIEGA plumbing and heating sys-

tems up to size 108 mm.

RP 340-B Pressing Tool

Rated Power: .............................................................................................. 490W

Voltage: ......................................................................................................... 18V

Machine monitoring: ............................................................................electronic

Sound pressure level: ..........................................................................79,3 dB(A)

Uncertainty ..............................................................3 dB(A)

Vibration level: ............................................................................< 2,5 m/s²

Uncertainty (K) .......................................................1,5 m/s²

Power transmission: .............................................................................. hydraulic

Thrust at piston: ........................................................................................... 32kN

Stroke: ....................................................................................................... 40 mm

Weight, including rechargeable battery: ..................................................3,76 kg

Capacity of lithium-ion Rechargeable battery ....................................18V / 2,0Ah

(Guideline values, subject to modication)

LED Status Description

Green

Glows Tool ON

Blinks

230V: Under voltage; 18V: Battery too low.

Recharge Battery.

Red

Blinks Out of temperature range.

Glows

Jaws retaining pin not fully engaged.

Insert pin.

Amber

Blinks

Machine is locked - service after 42000

cycles or after a malfunction.

Glows

Service indicator after 40000 cycles.

Note: Tool will lock after 42000 cycles.

The specied vibration levels have been measured in accordance with EN 60745-1 and

may be used for comparison with other tools. During the usage of the pressing tool the

vibration level value can be dierent from the specied value. The vibration level value

depends on the manner in which the pressing tool is used.

RP 340-C Pressing Tool

Rated Power: .............................................................................................. 490W

Voltage: ....................................................................................................... 230V

Mains fuse: .................................................................................................... 10A

Insulation type

Machine monitoring: ............................................................................electronic

Sound pressure level: ..........................................................................79,3 dB(A)

Uncertainty ..............................................................3 dB(A)

Vibration level: ............................................................................< 2,5 m/s²

Uncertainty (K) ....................................................... 1,5 m/s²

Power transmission: .............................................................................. hydraulic

Thrust at piston: ........................................................................................... 32kN

Stroke: ....................................................................................................... 40 mm

Weight, including mains adapter: ............................................................4,29 kg
