Appendix

- 128 -

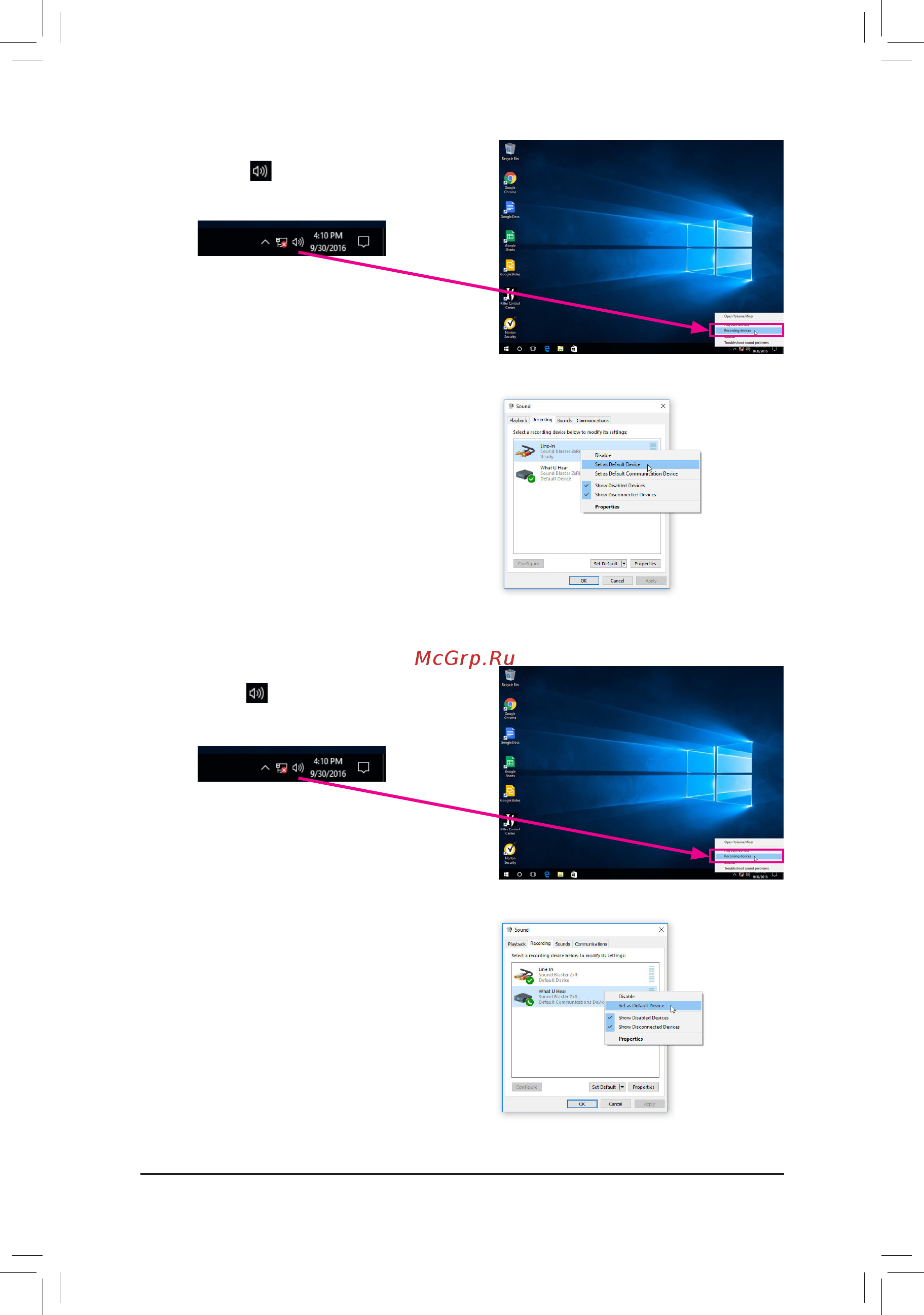

Step 2:

Right-click on the iconinthenoticationareaand

select Recording devices.

Step 3:

On the Recording tab, right-click on Line-In, and select

Set as Default Device.

3. Recording the sound from your computer:

Step 1:

Right-click on the iconinthenoticationareaand

select Recording devices.

Step 2:

On the Recording tab, right-click on What U Hear and

select Set as Default Device.
