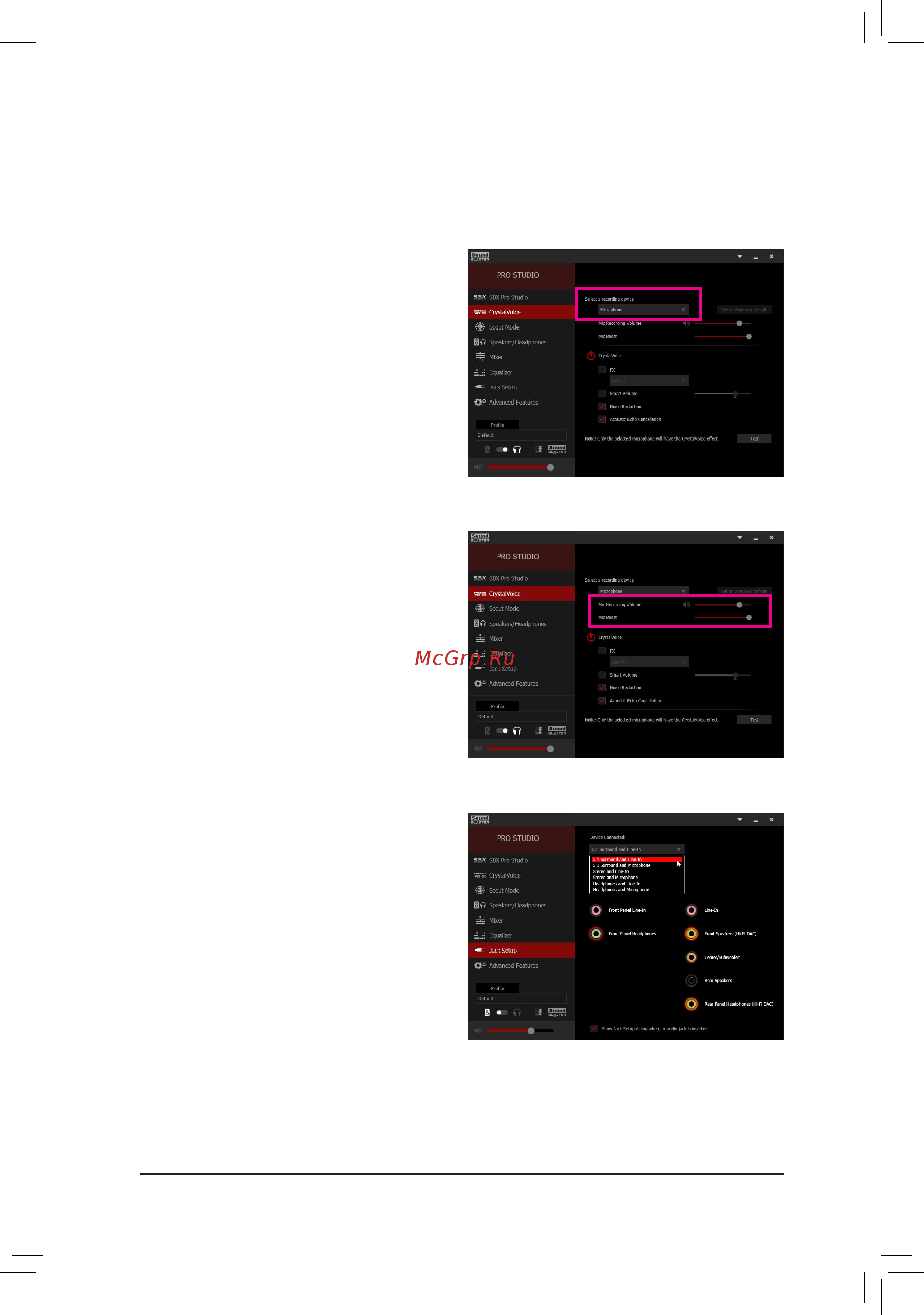

- 127 -
Appendix
Step 2:
To hear the sound being recorded during the recording
process, it is recommended that you set the Mic
volume at a middle level. Do not mute the recording
volume, or you'll not be able to record the sound.
To raise the recording and playback volume for the
microphone, use the Mic Boost slider and set the
microphone boost level.
6-2-4 ConguringAudioRecording
You can record the sound from the microphone or Line in device or record the sound from your computer.
1.Conguringyourmicrophone:
Step 1:
Connect your microphone to the Mic in jack on the back
panel or the Mic in jack on the front panel.
Note: The microphone functions on the front panel and
back panel cannot be used at the same time.
Open the Sound Blaster ZxRi control panel and go to
the CrystalVoice page. Make sure your microphone
is correctly connected.
2.ConguringyourLineindevice:
Step 1:
Open the Jack Setup page of the Sound Blaster ZxRi
control panel, select the audio device you connected
and Line In.
