Leister LE MINI (Ле мини) [15/96] Circuit diagram le mini sensor

Leister LE MINI (Ле мини) [15/96] Circuit diagram le mini sensor
15
OUT 1
OUT 2
IN
SUB 1
POWER
Controller
Alarm 1
Alarm 2
Power
supply
POWER
12..24VDC
– +
X2
X1
X3
X4
X5
1
2
3
1
2
3
1
2
3
1 2
3
SSR
Air pressure
(max 2 bar)
PHASE
NEUTRAL
Converter
LE MINI SENSOR
1
2
3
*
Alarm out

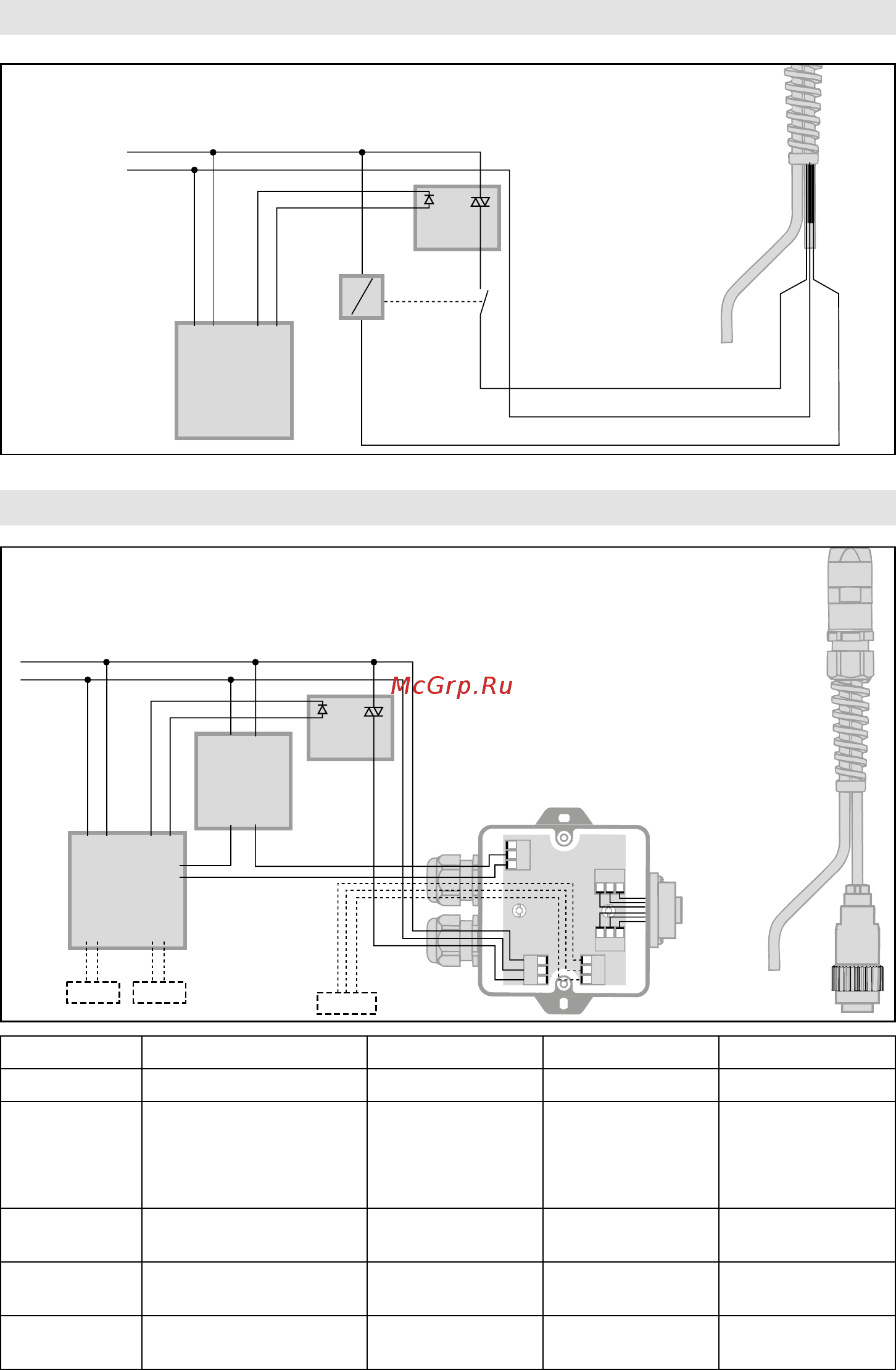

Circuit Diagram LE Mini SENSOR
OUT 1
POWER
Controller
2 (Neutral)
1 (Load)
3 (Temp.-Schalter)
SSR
Air pressure
(max 2 bar)
PHASE
NEUTRAL
LE MINI
*
*
**
Circuit Diagram LE MINI
* Controller and SSR are optional
** Processing Temperature switch signal
* Power supply is integrated according to
the controller used (model/manufacturer)
Note:
In case of wrong wiring the
converter circuit board will be destroyed.
Connections Description Terminal 1 Terminal 2 Terminal 3
X1 Power in 100..240 VAC LOAD NEUTRAL LINE / MAINS
X2
Sensor out
4..20 mA, passiv
4 mA = 0 °C
20 mA = 1023 °C
Positive Negative
X3
Sensor in
thermal element
Earth connection
(grey)
Positive
(green)
Negative
(white)
X4
Power out
Heating element
Temperature
switch (pink)
Neutral
(blue)
Load
(black)
X5
Alarm out
Relay, 8 A / 250 VAC
Working contact Connection Rest contact
Air pressure
(max 2 bar)
Air pressure
(max 2 bar)
1 (Load)
2 (Neutral)
3 (Temperature switch)
