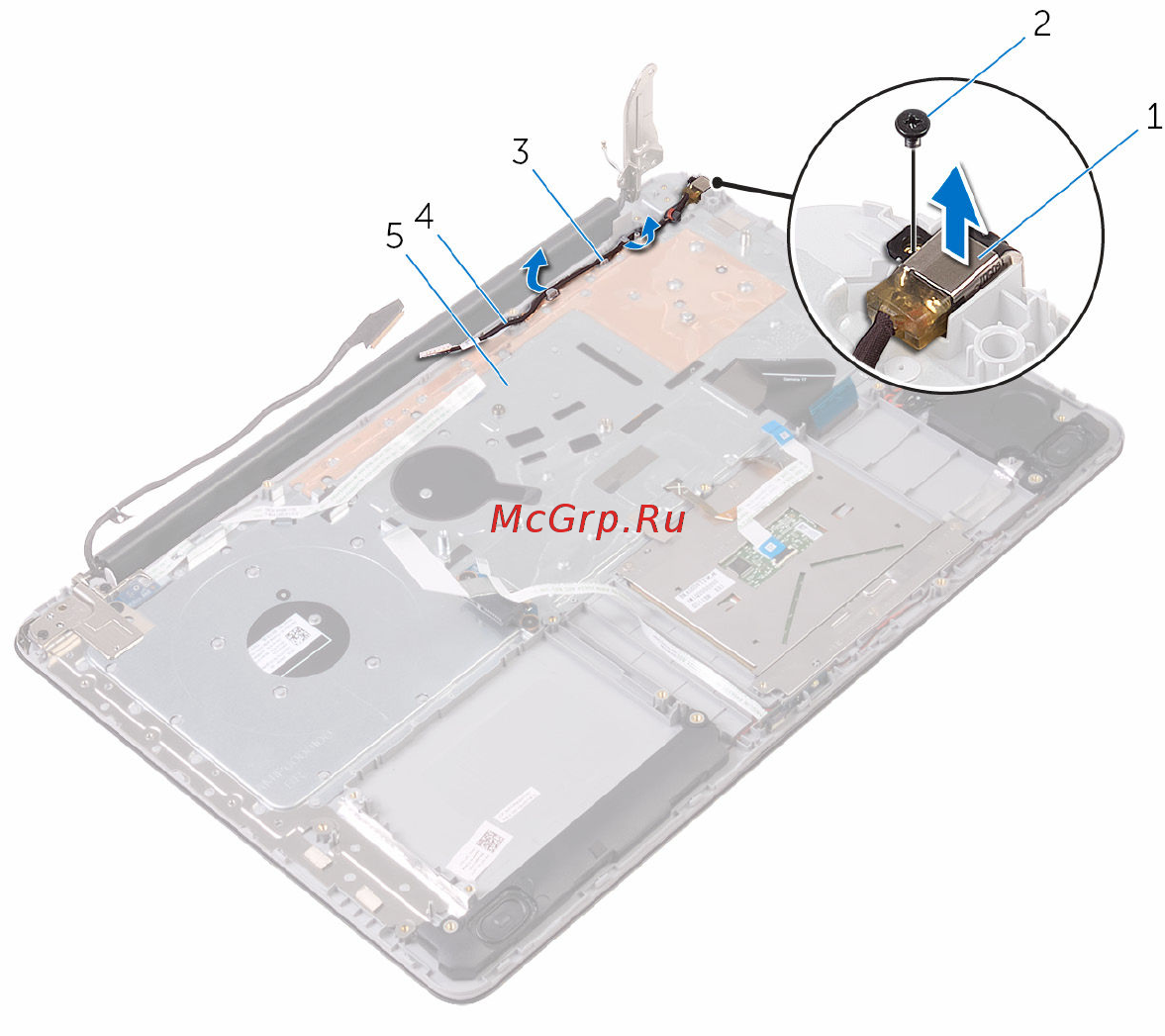

3 Lift the power-adapter port along with its cable off the palm rest and
keyboard assembly.
1 power-adapter port 2 M2x3 screw
3 routing guides 4 power-adapter port cable
5 palm rest and keyboard
assembly
100
