4 Disconnect the battery cable from the system board.

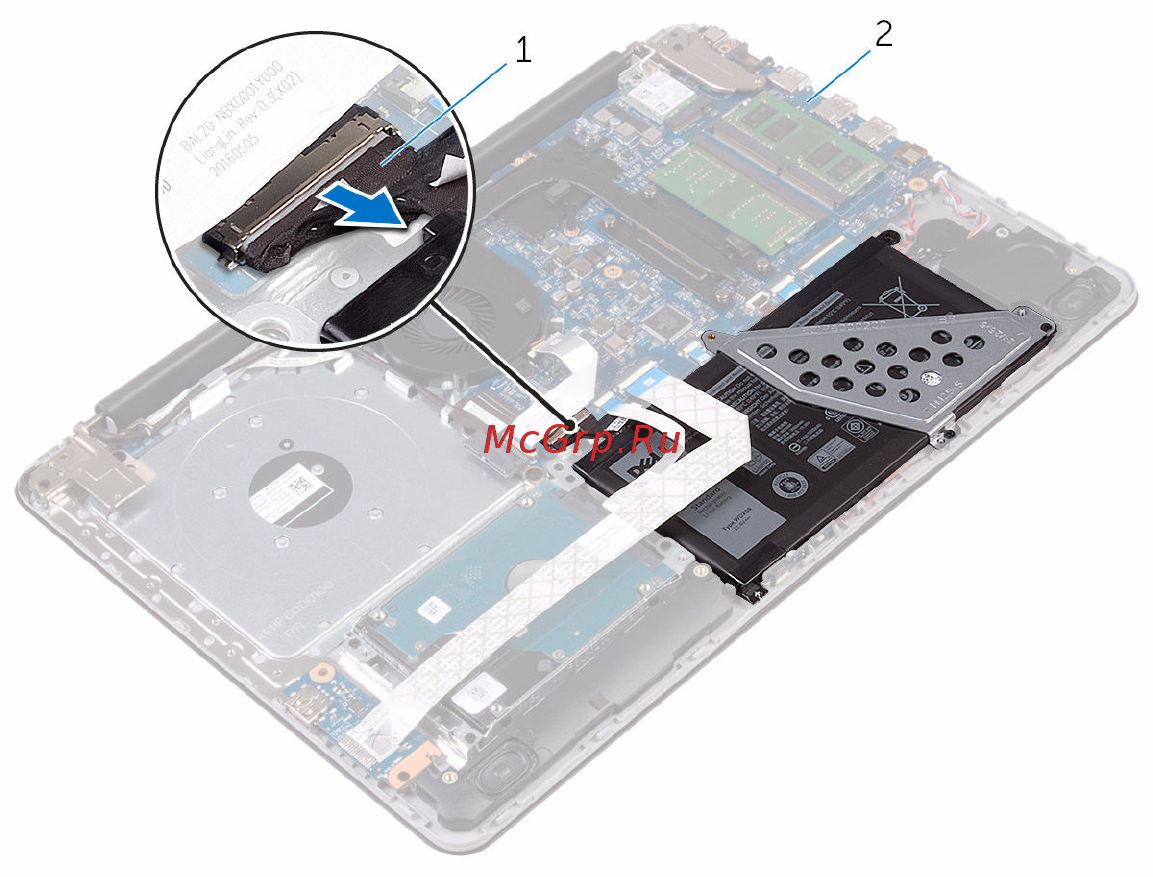

1 battery cable 2 system board

5 Press and hold the power button for 5 seconds to ground the system

board.
