![Dell Inspiron 5567, 5567-0306 Инструкция по эксплуатации онлайн [33/108] 221644](/views2/1218012/page33/bg21.png)

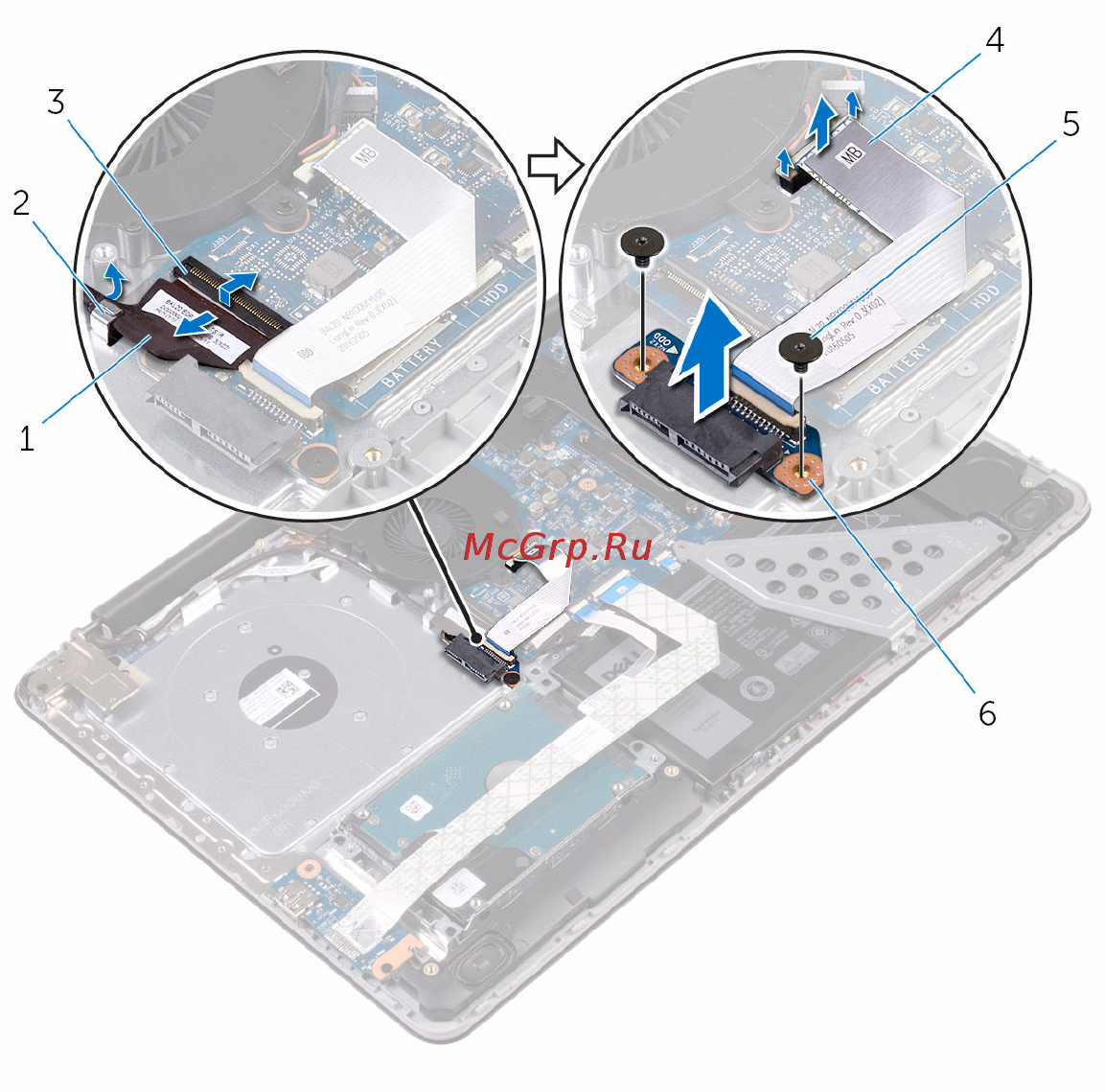

4 Lift the optical-drive interposer off the palm rest and keyboard assembly.
1 display cable 2 routing guide
3 latch 4 optical-drive interposer
cable
5 M2x2 screws (2) 6 optical-drive interposer
33
