Dell Inspiron 5567, 5567-1981 Инструкция по эксплуатации онлайн [39/108] 221418
![Dell Inspiron 5567, 5567-7942 Инструкция по эксплуатации онлайн [39/108] 221645](/views2/1218012/page39/bg27.png)

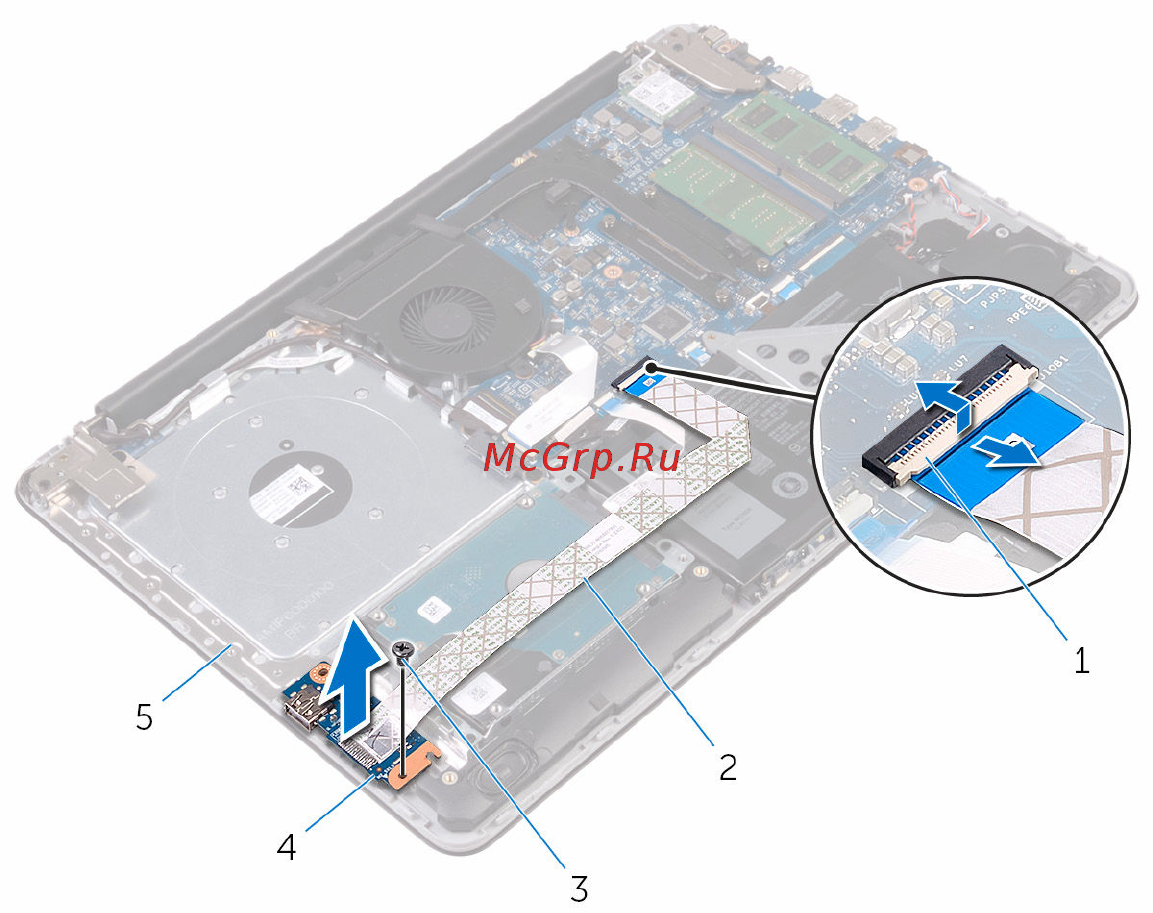

3 Lift the I/O board off the palm rest and keyboard assembly.
1 latch 2 I/O-board cable
3 M2.5x5 screw 4 I/O board
5 palm rest and keyboard
assembly
39
