Dell Inspiron 5567, 5567-1981 Инструкция по эксплуатации онлайн [42/108] 221418
![Dell Inspiron 5567, 5567-7928 Инструкция по эксплуатации онлайн [42/108] 221696](/views2/1218012/page42/bg2a.png)

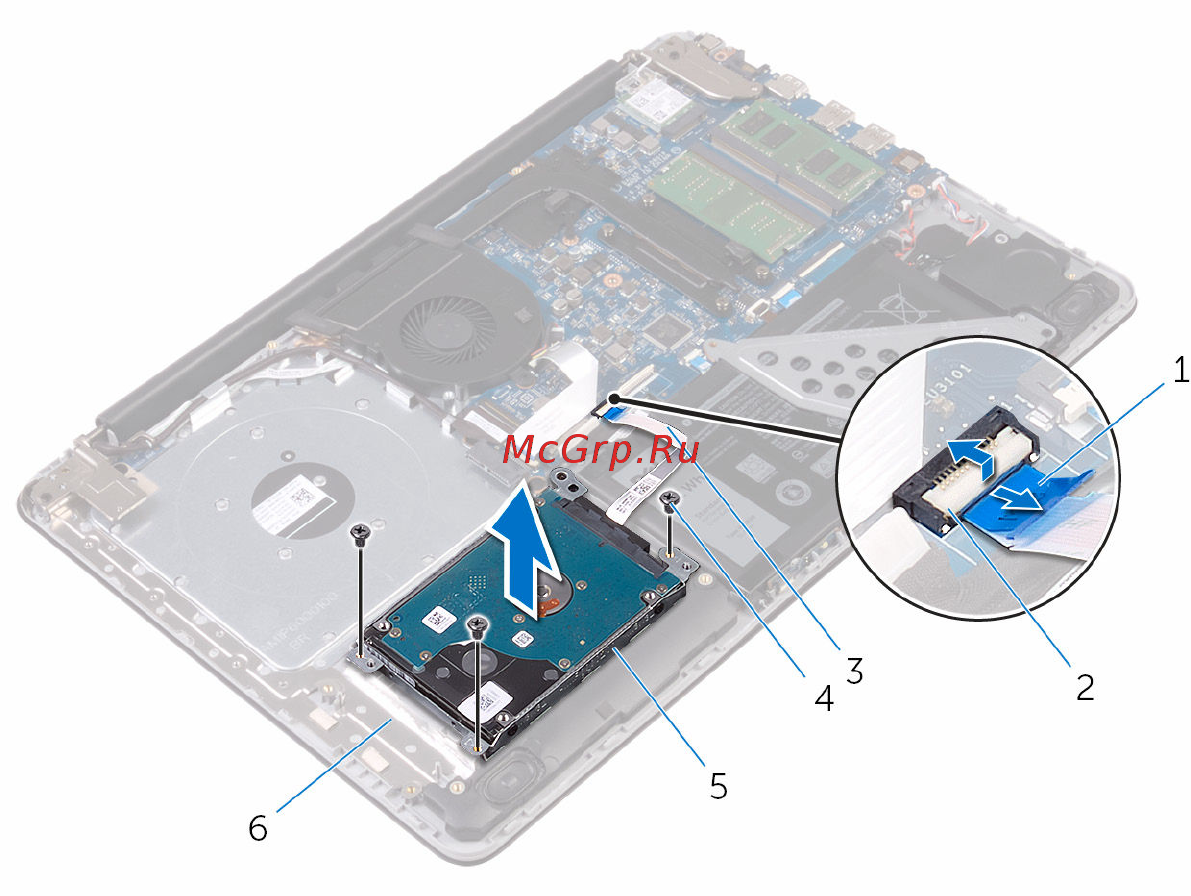

3 Lift the hard-drive assembly along with its cable off the palm rest and
keyboard assembly.
1 pull tab 2 latch
3 hard-drive cable 4 M2.5x5 screws (3)
5 hard-drive assembly 6 palm rest and keyboard
assembly
42
