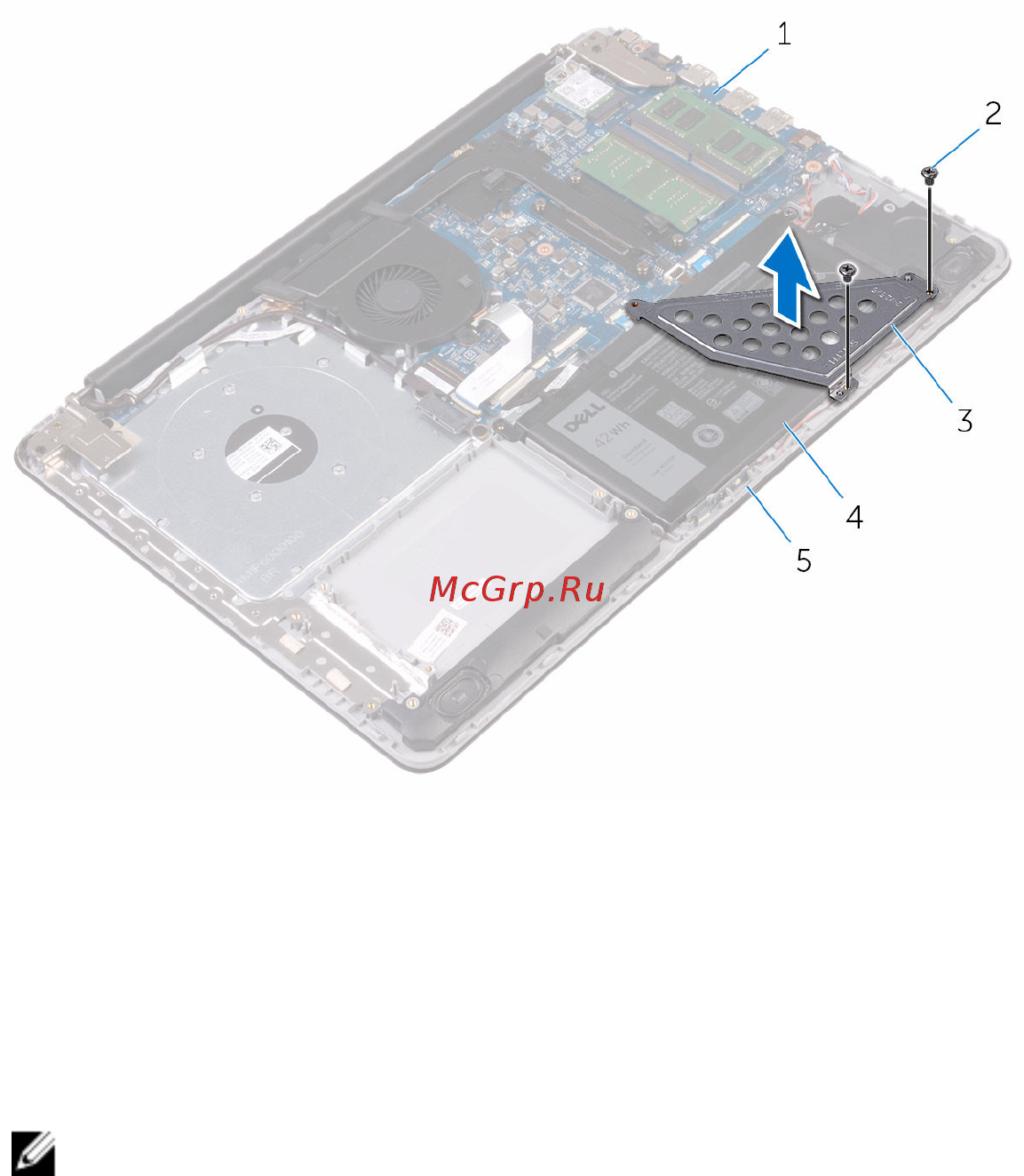

2 Lift and remove the battery bracket.
1 system board 2 M2.5x5 screws (2)
3 battery bracket 4 battery
5 palm rest and keyboard
assembly
3 Remove the screw that secures the battery to the palm rest and keyboard
assembly.
NOTE: Note the location of the screw that secures the battery to
the palm rest and keyboard assembly.
46
