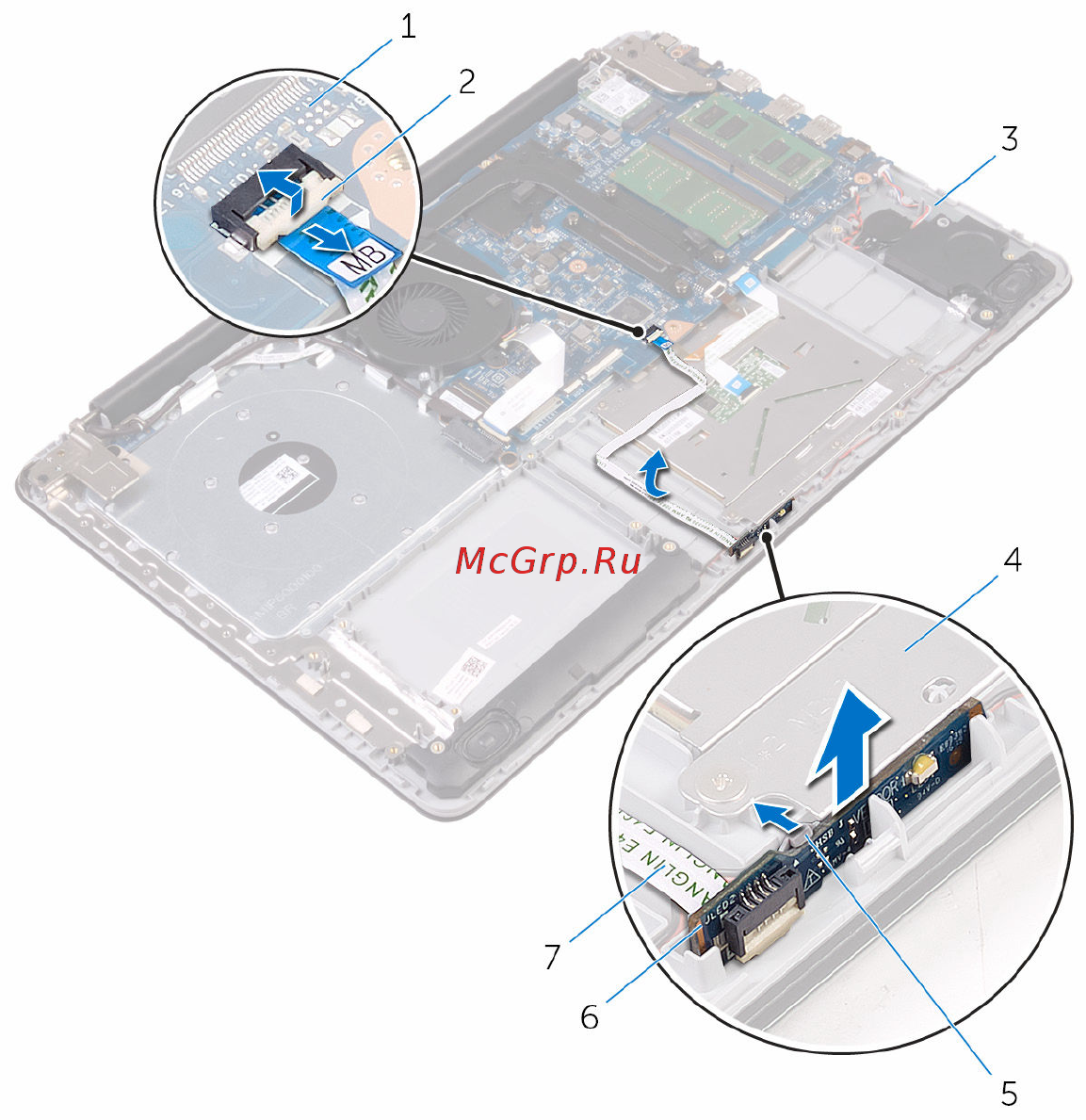

4 Lift the status-light board along with its cable off the palm rest and
keyboard assembly.
1 system board 2 latch
3 palm rest and keyboard
assembly
4 touch-pad bracket
5 tab 6 status-light board
7 status-light board cable
50
