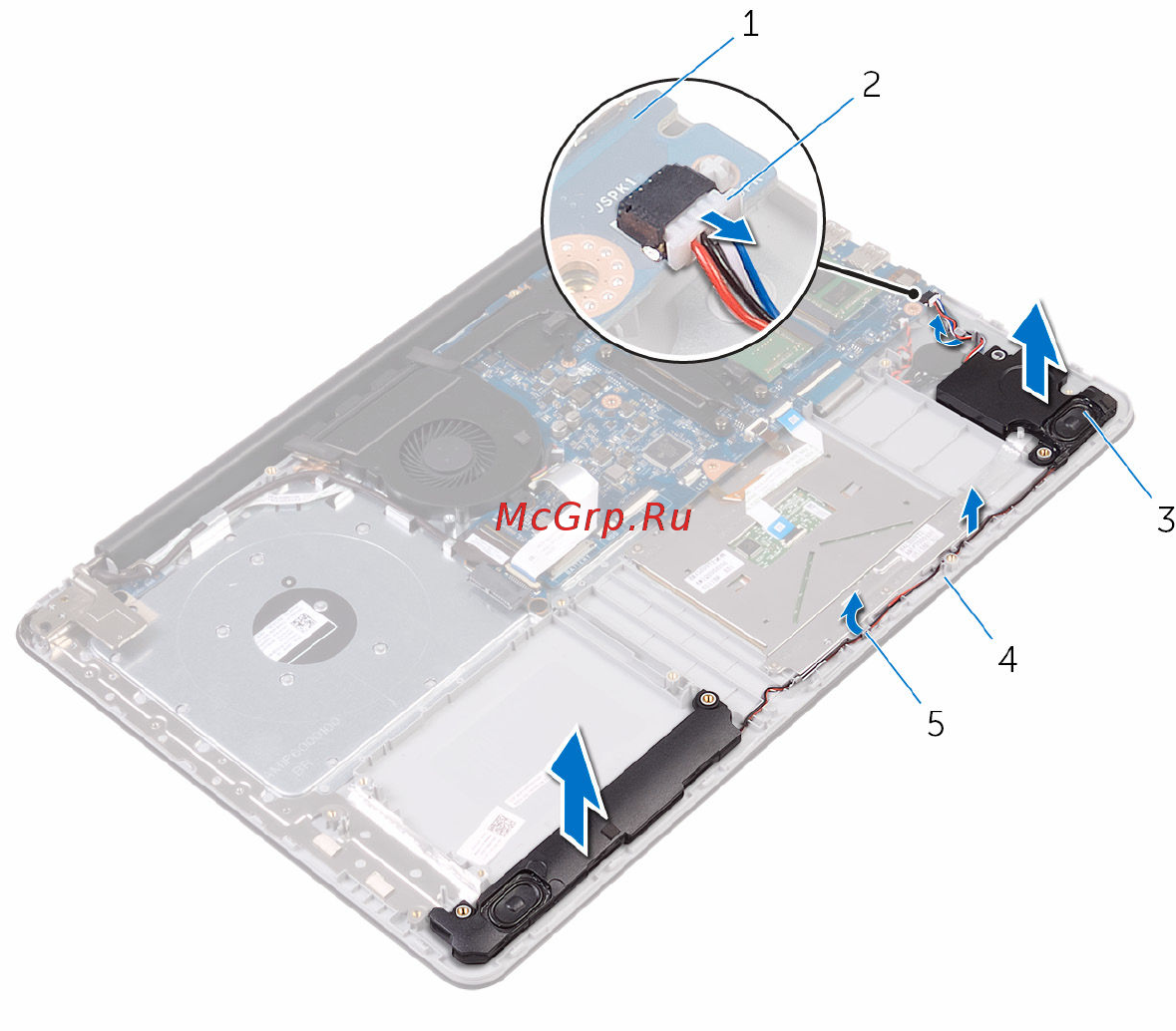

4 Lift the speakers along with its cable off the palm rest and keyboard
assembly.
1 system board 2 speaker cable
3 speakers (2) 4 palm rest and keyboard
assembly
5 routing guides
53
