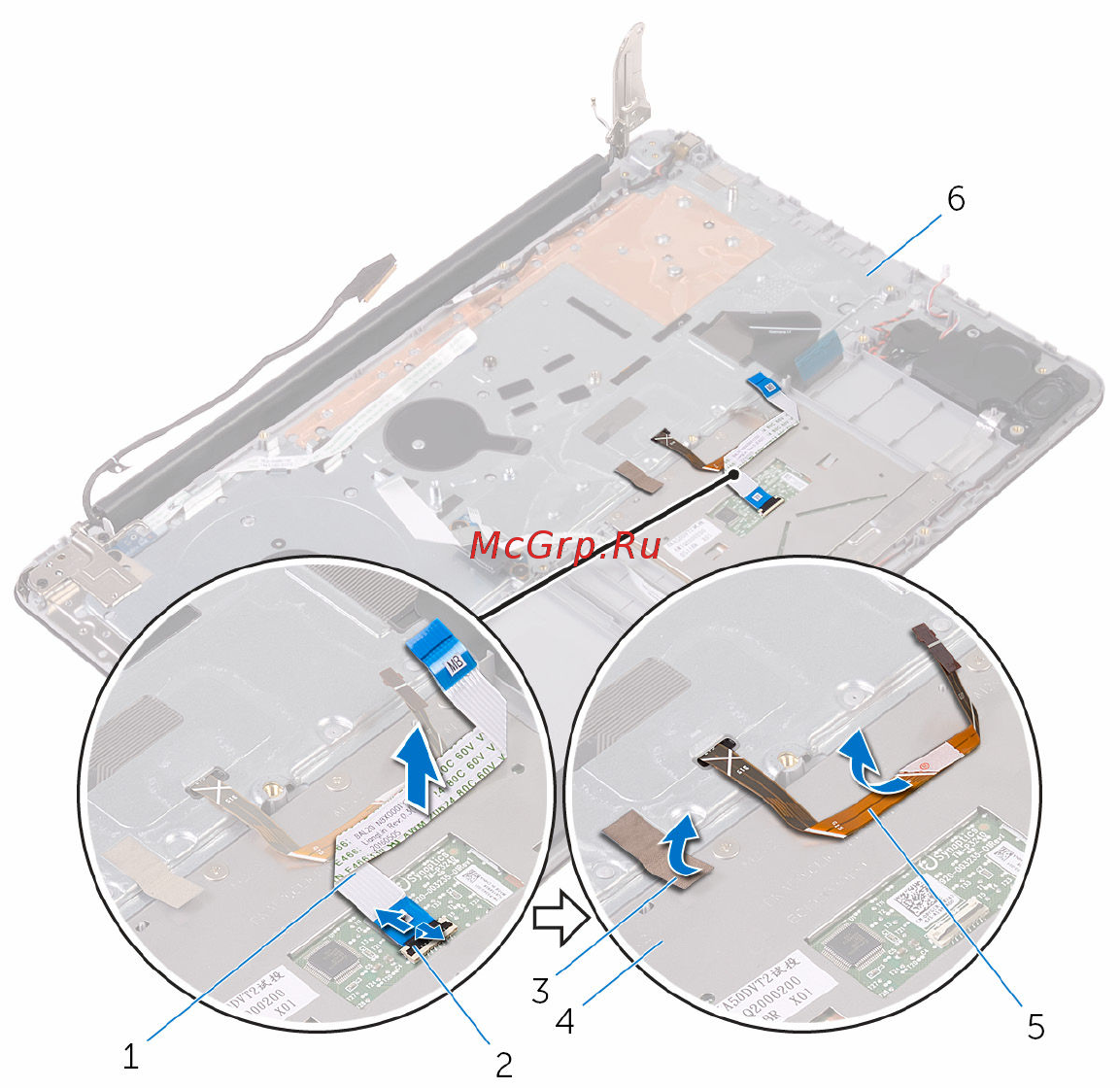

3 Peel off the tape that secures the touch pad to the palm rest and
keyboard assembly.
1 touch-pad cable 2 latch
3 tape 4 touch pad
5 keyboard backlight cable 6 palm rest and keyboard
assembly
4 Remove the screws that secure the touch-pad bracket to the palm rest
and keyboard assembly.
67
