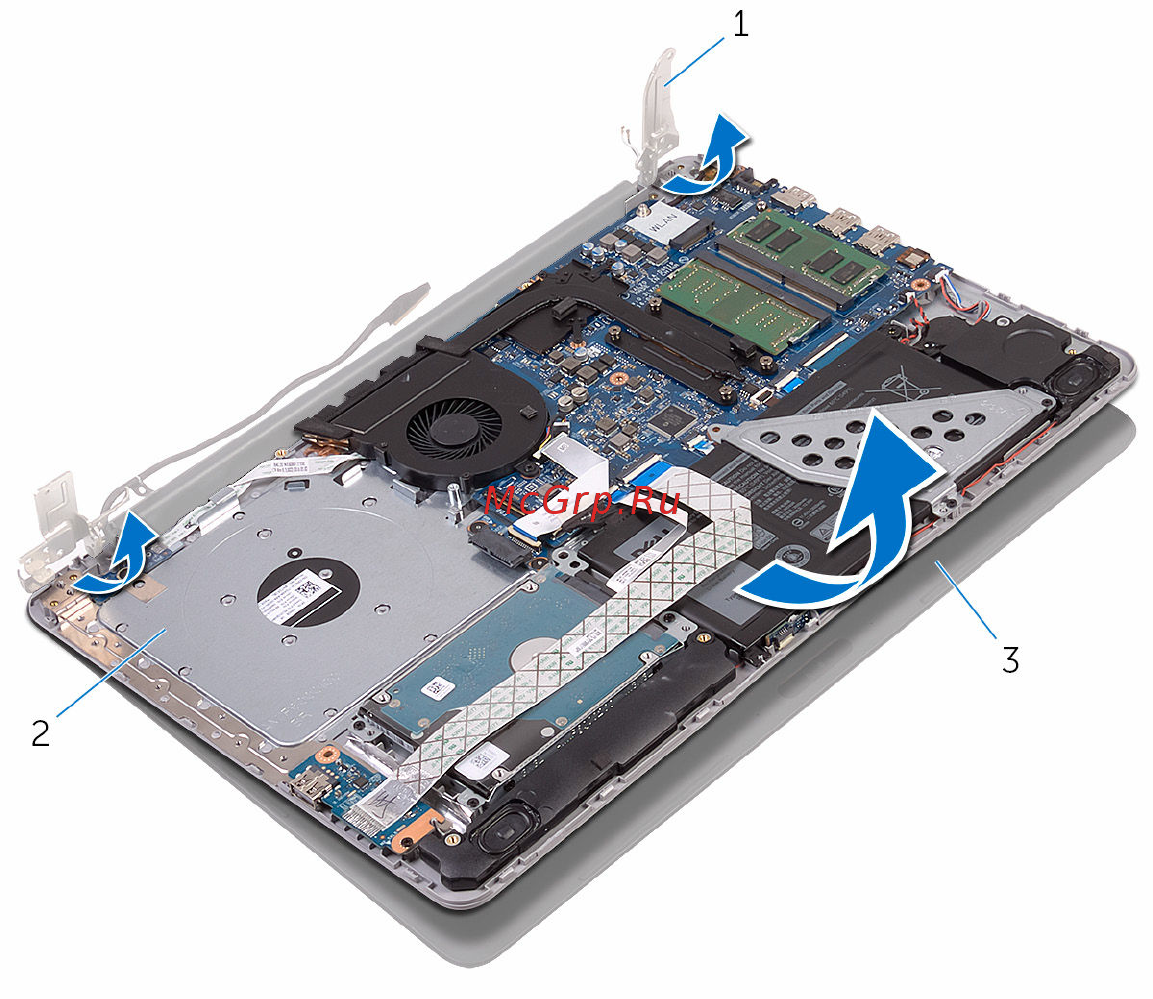

6 Lift the palm rest and keyboard assembly off the display assembly.
1 display hinges (2) 2 palm rest and keyboard
assembly
3 display assembly
75
