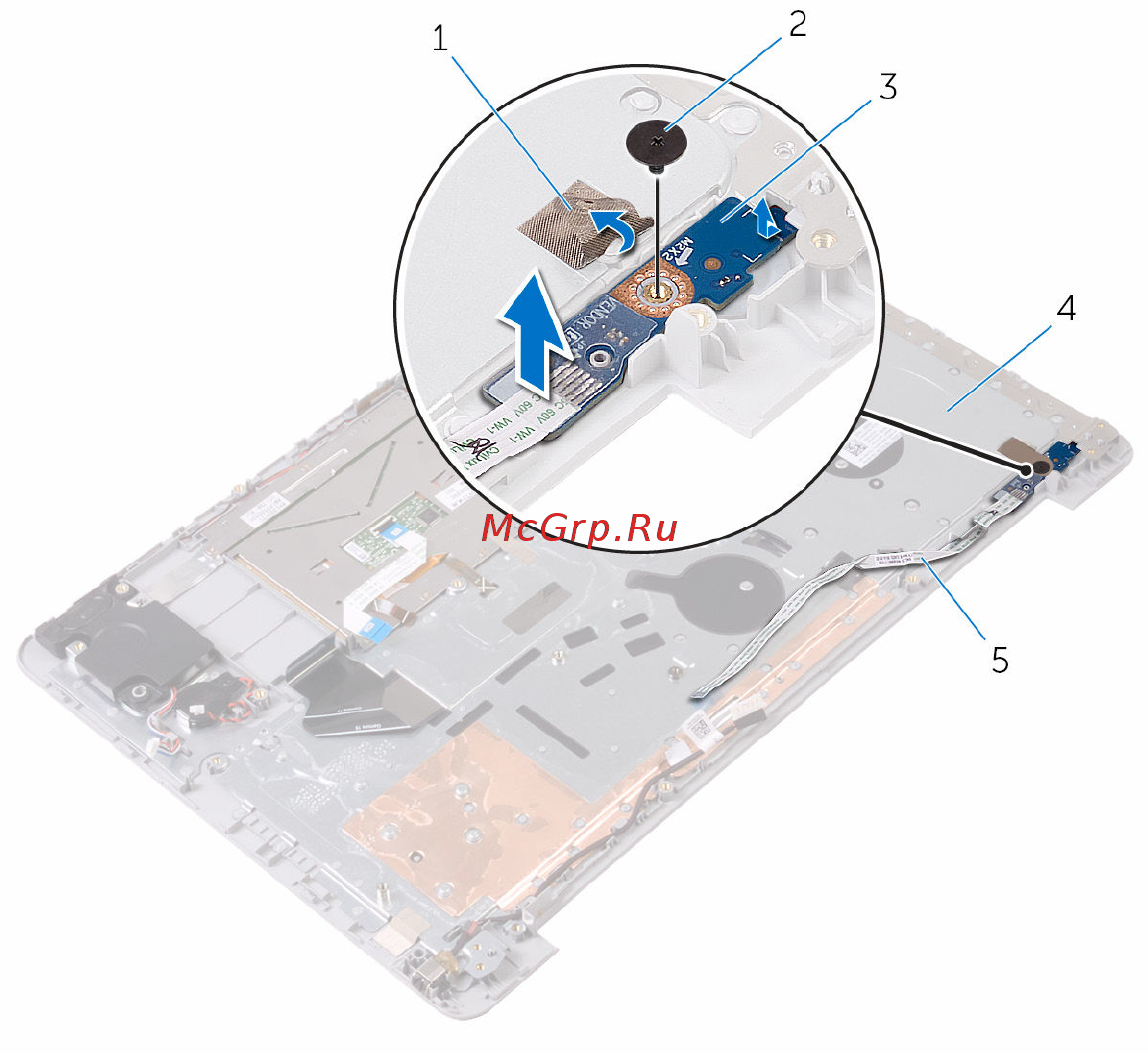

4 Lift the power-button board at an angle along with the cable off the palm
rest and keyboard assembly.
1 tape 2 M2x2 Big Head screw
3 power-button board 4 palm rest and keyboard
assembly
5 power-button board cable
97
