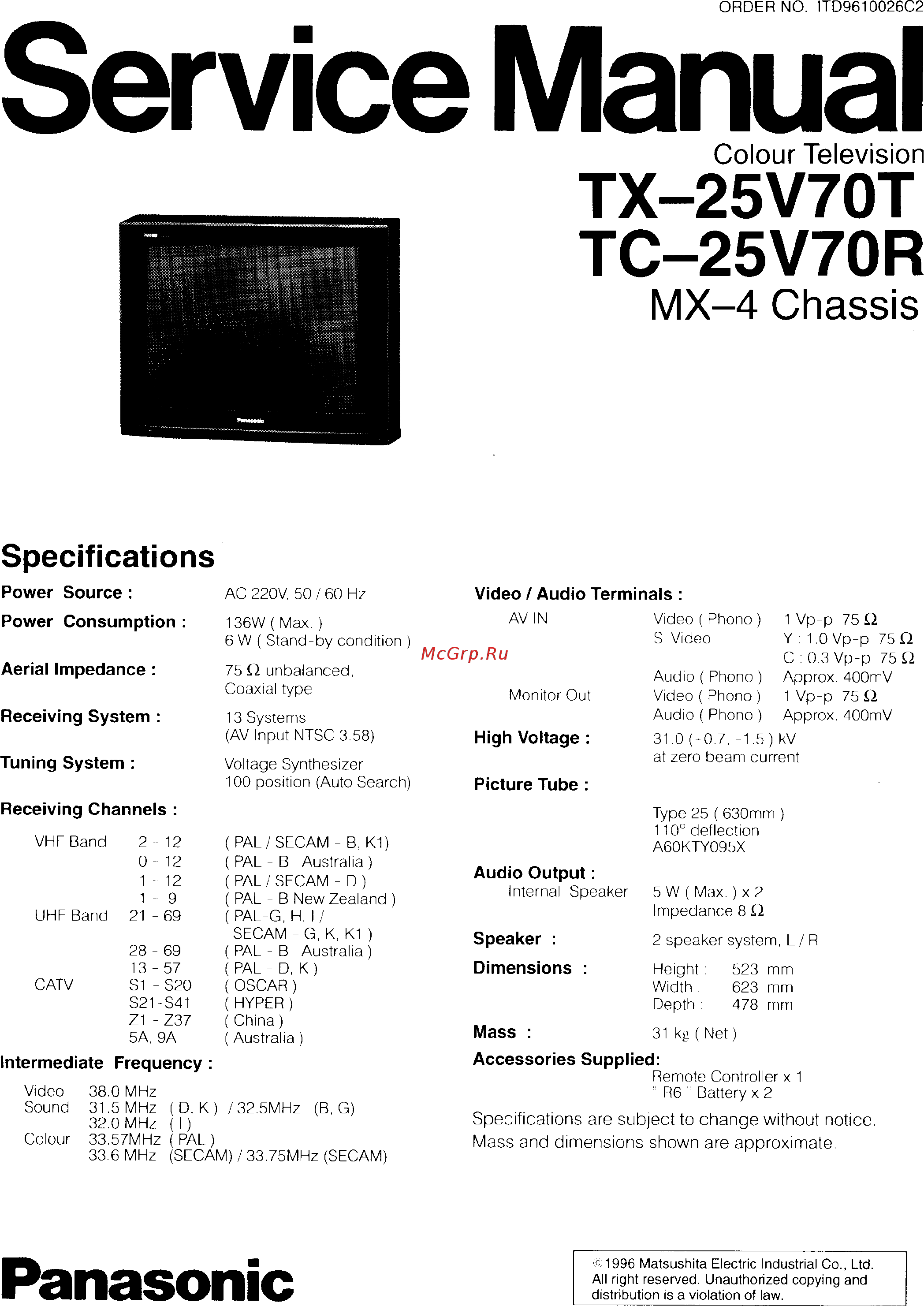

ORDER NO ITD9610026C2 Service Manual Colour Television TX 25V70T TC 25V70R MX 4 Chassis Specifications Power Source AC 220V 50 60 Hz Power Consumption 136W Max 6 W Stand by condition Aerial Impedance 75 LI unbalanced Coaxial type Receiving System 13 Systems AV Input NTSC 3 58 High Voltage Voltage Synthesizer 100 position Auto Search Picture Tube Tuning System Video Audio Terminals AV IN Video Phono S Video 1 Vp p 75 Q Y 1 0 Vp p 75 Q C 0 3 Vp p 75 Q Audio Phono Approx 400mV Video Phono 1 Vp p 75 L 1 Audio Phono Approx 400mV Monitor Out 31 0 0 7 1 5 kV at zero beam current Receiving Channels VHF Band 2 12 0 12 1 12 1 9 UHF Band 21 69 CATV 28 69 13 57 S1 S20 S21 S41 Z1 Z37 5A 9A PAL SECAM B K1 PAL B Australia PAL SECAM D PAL B New Zealand PAL G H I SECAM G K K1 PAL B Australia PAL D K OSCAR HYPER China Australia Intermediate Frequency Video 38 0 MHz Sound 31 5 MHz D K 32 5MHz B G 32 0MHz I Colour 33 57MHz PAL 33 6 MHz SECAM 33 75MHz SECAM Panasonic Type 25 630mm 110 deflection A60KTY095X Audio Output Internal Speaker 5 W Max x 2 Impedance 8 Li Speaker 2 speaker system L R Dimensions Height Width Depth Mass 31 kg Net 523 mm 623 mm 478 mm Accessories Supplied Remote Controller x 1 R6 v Battery x 2 Specifications are subject to change without notice Mass and dimensions shown are approximate 1996 Matsushita Electric Industrial Co Ltd All right reserved Unauthorized copying and distribution is a violation of law
