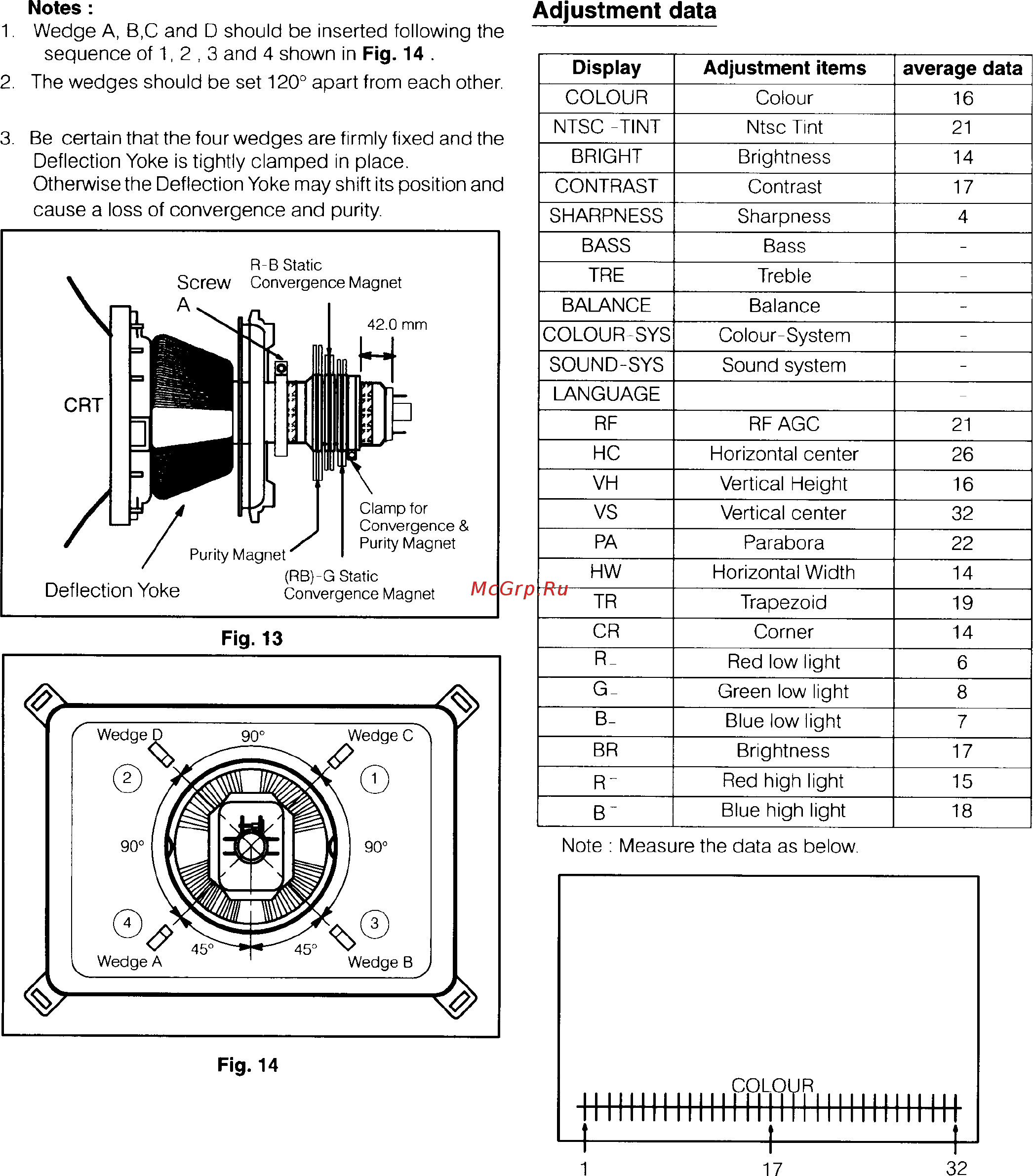

Notes 1 Wedge A B C and D should be inserted following the sequence of 1 2 3 and 4 shown in Fig 14 2 The wedges should be set 120 apart from each other 3 Be certain that the four wedges are firmly fixed and the Deflection Yoke is tightly clamped in place Otherwise the Deflection Yoke may shift its position and cause a loss of convergence and purity Adjustment data Display Adjustment items average data COLOUR Colour 16 NTSC TINT Ntsc Tint 21 BRIGHT Brightness 14 CONTRAST Contrast 17 SHARPNESS Sharpness 4 BASS Bass TRE Treble BALANCE Balance COLOUR SYS Colour System SOUND SYS Sound system Fig 13 LANGUAGE RF RF AGC 21 HC Horizontal center 26 VH Vertical Height 16 VS Vertical center 32 PA Parabora 22 HW Horizontal Width 14 TR Trapezoid 19 CR R_ Corner 14 Red low light 6 G Green low light 8 B Blue low light 7 BR Brightness 17 R Red high light 15 B Blue high light 18 Note Measure the data as below Fig 14 1 17 32
