Содержание
83- Tx 25v70t tc 25v70r
- Service manual
- Mx 4 chassis
- Specifications технические характеристики
- Panasonic
- Location of controls and circuit boards расположение органов управления и печатных плат
- Service hint
- Hotel mode child lock
- C bus concept
- C application in the mx 4 chassis
- A features
- Service hint приемы сервисного обслуживания
- How to set the market mode for adjustment
- How to memorize the adjustment data
- V 0 v by sub brightness
- Sub contrast sub brightness
- Rf agc
- Pedestal level
- Item preparation adjustment procedure
- Item adjustment waveform
- High voltage
- B voltage
- Adjustment procedure процедура регулировки
- Adjustment procedure
- 0 v by sub contrast
- M ntsc sub tint adjustment
- Item adjustment waveform
- Tpe39 r out
- Pal colour output
- Sub bright adjustment
- Push the off timer button while br is still on screen to collapse the frame scan
- Operation of the function button s1106 in crt adjustment mode
- Item adjustment adjustment procedure
- Fig 12
- Fig 11
- Fig 10
- Crt cut off
- Adjustment procedure for white balance
- Adjust screen until one colour just appear
- 190 2 v
- R g b low light adjustment
- R b high light adjustment
- Item preparation adjustment procedure
- Unifor
- Convergence
- Colour purity
- Before colour purity convergence and white balance adjustments are attempted v height h centre and focus adjustments must be completed
- Adjustment data
- Location of lead wiring расположение электрических кабелей и соединений
- Location of lead wiring

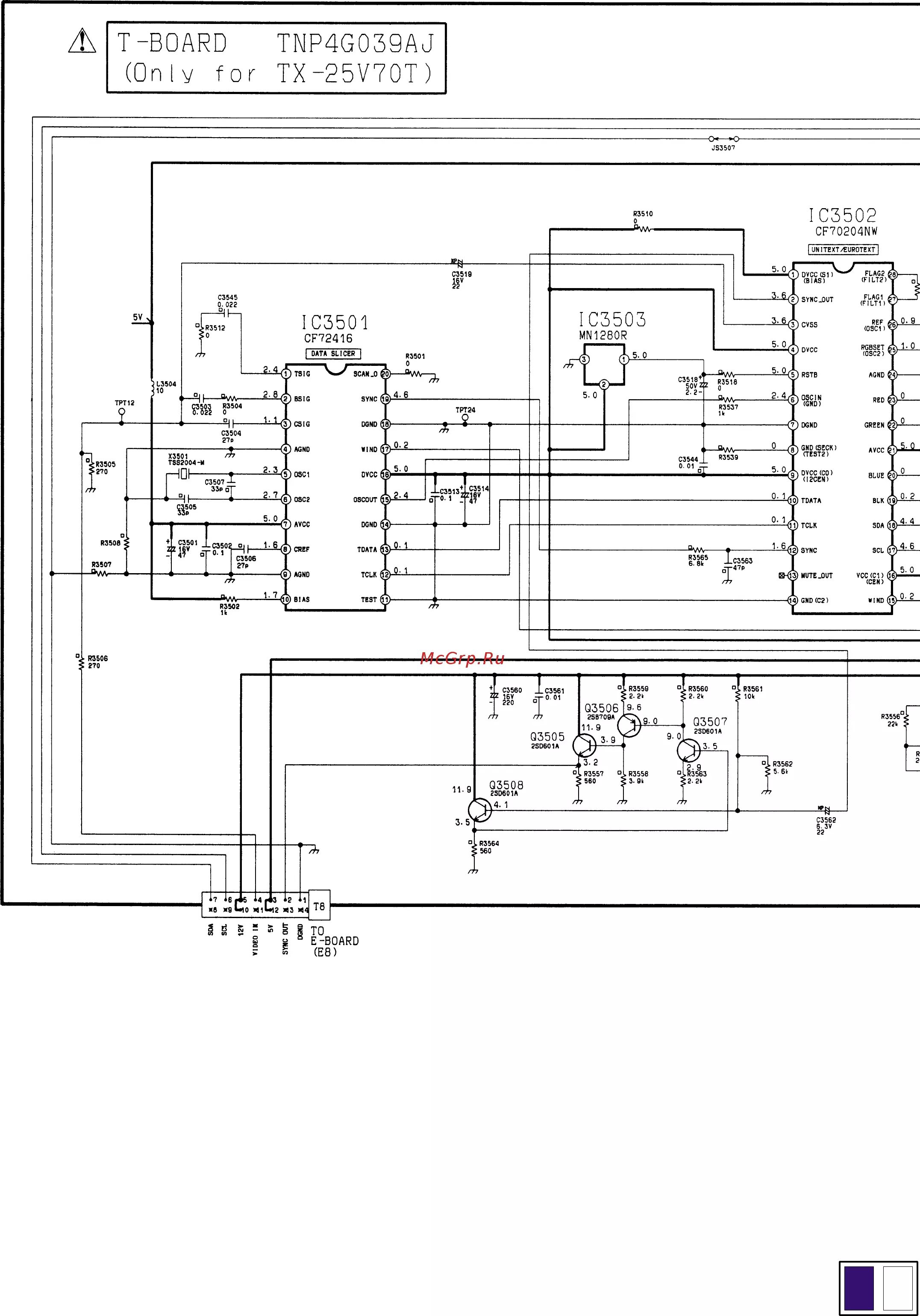

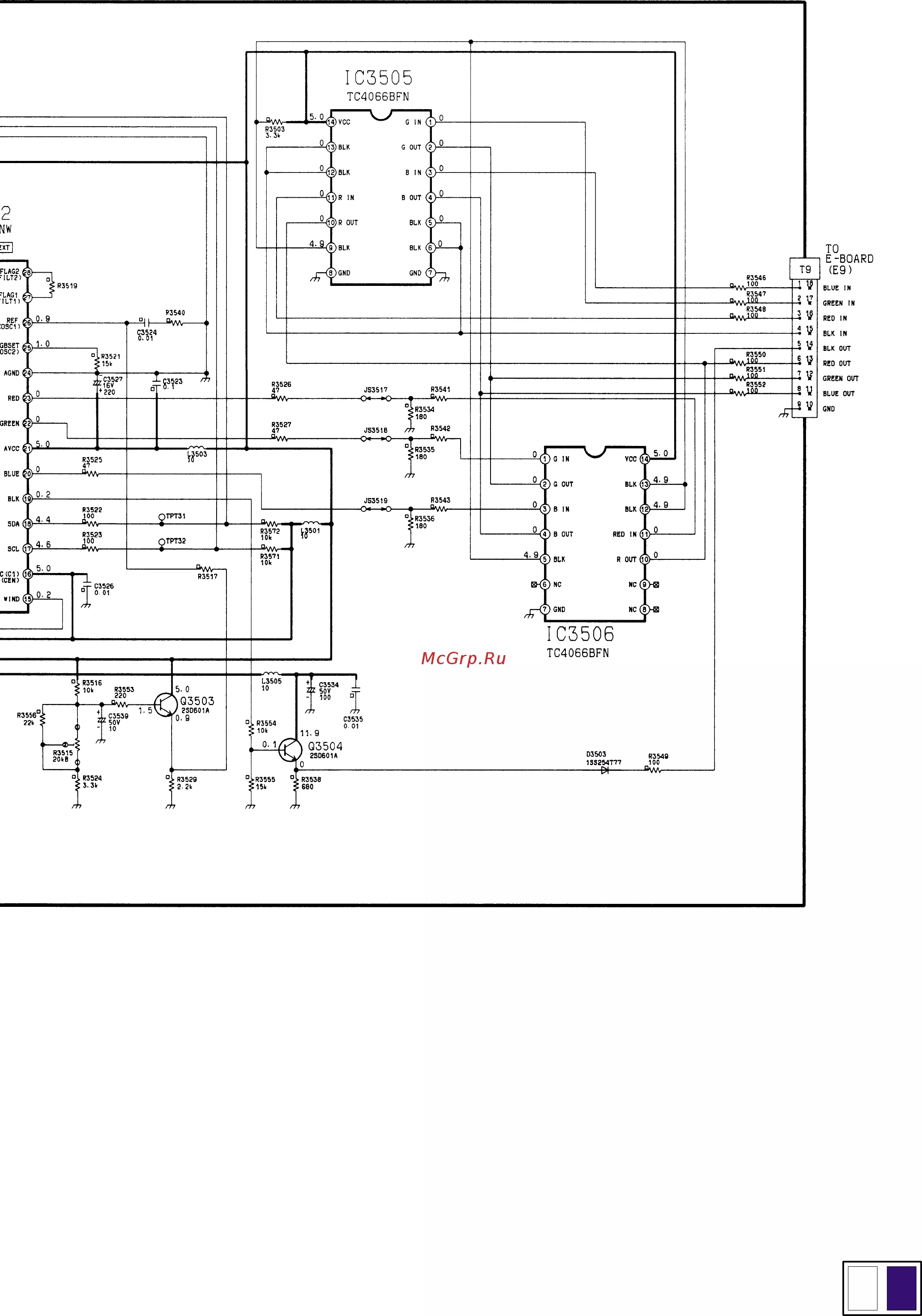

- Schematic diagrams принципиальные схемы
- Remote controller unit пульт дистанционного управления
- Key no function
- Key function table
- H board tnp4g044au
- To e board e39
- To e board e38
- К i l n
- Vm coil
- Y board tnp4g034az
- То e board e9
- V v v v v 1 v v v

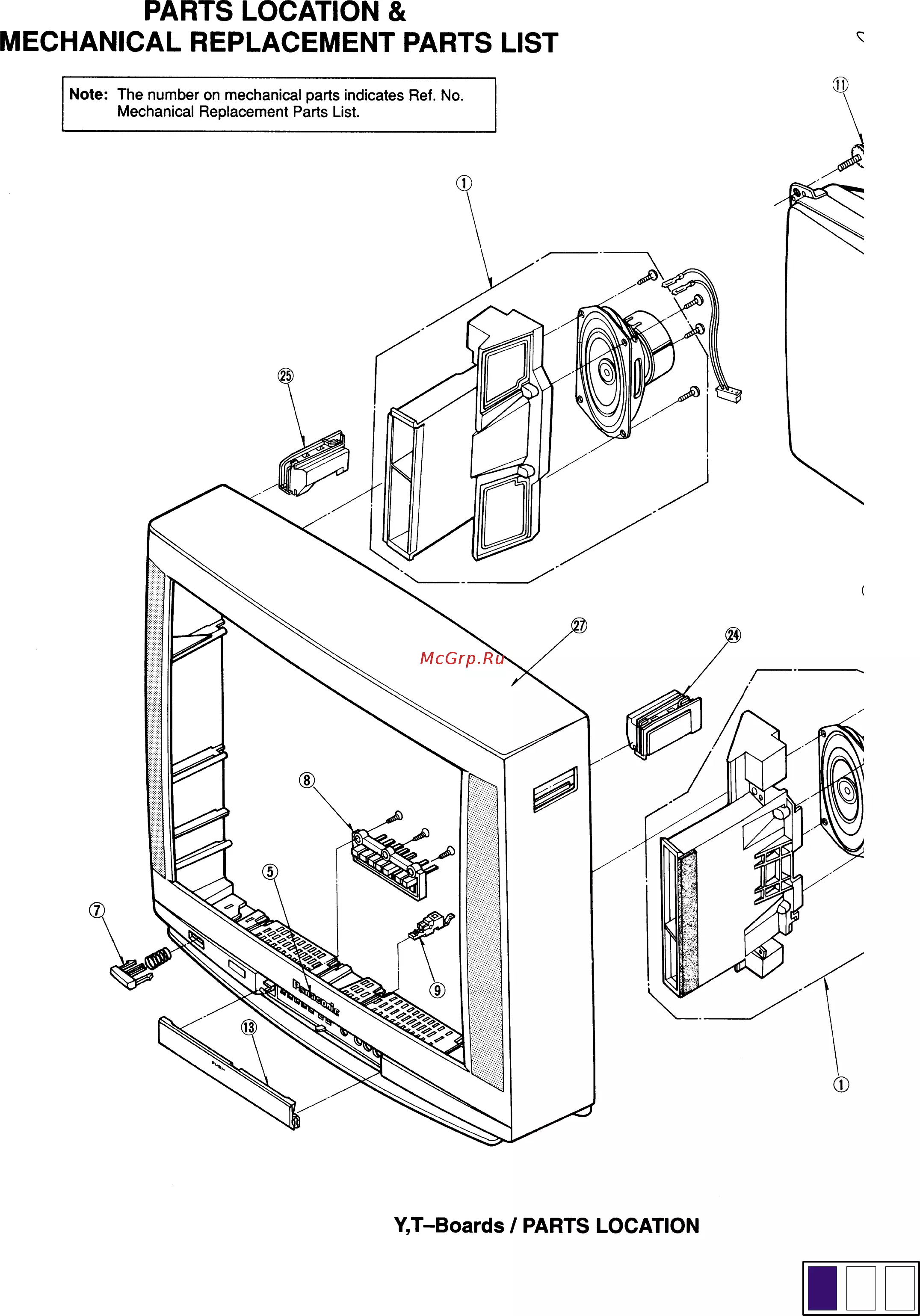

- Parts location mechanical replacement parts list расположение деталей и перечень механических узлов
- Ref no part no description
- Replacement parts list список запасных частей
- Ref no part no description
- Ref no part no description
- Ref no part no description
- Ref no part no description
- Ref no part no description ref no part no description
- Ref no part no description
- Ref no part no description
- Ref no part no description
- Ref no part no description
- Ref no part no description
- Ref no part no description
- Ref no part no description
- Ref no part no description
- Ref no part no description
- Ref no part no description
- Ref no part no description
- Ref no part no description
- Ref no part no description
