Panasonic TX-25V70T — процедура настройки телевизора: шаги и рекомендации [5/50]
Содержание
83- Tx 25v70t tc 25v70r
- Service manual
- Mx 4 chassis
- Specifications технические характеристики
- Panasonic
- Location of controls and circuit boards расположение органов управления и печатных плат
- Service hint
- Hotel mode child lock
- C bus concept
- C application in the mx 4 chassis
- A features
- Service hint приемы сервисного обслуживания
- How to set the market mode for adjustment
- How to memorize the adjustment data
- V 0 v by sub brightness
- Sub contrast sub brightness
- Rf agc
- Pedestal level
- Item preparation adjustment procedure
- Item adjustment waveform
- High voltage
- B voltage
- Adjustment procedure процедура регулировки
- Adjustment procedure
- 0 v by sub contrast
- M ntsc sub tint adjustment
- Item adjustment waveform
- Tpe39 r out
- Pal colour output
- Sub bright adjustment
- Push the off timer button while br is still on screen to collapse the frame scan
- Operation of the function button s1106 in crt adjustment mode
- Item adjustment adjustment procedure
- Fig 12
- Fig 11
- Fig 10
- Crt cut off
- Adjustment procedure for white balance
- Adjust screen until one colour just appear
- 190 2 v
- R g b low light adjustment
- R b high light adjustment
- Item preparation adjustment procedure
- Unifor
- Convergence
- Colour purity
- Before colour purity convergence and white balance adjustments are attempted v height h centre and focus adjustments must be completed
- Adjustment data
- Location of lead wiring расположение электрических кабелей и соединений
- Location of lead wiring
- Schematic diagrams принципиальные схемы
- Remote controller unit пульт дистанционного управления
- Key no function
- Key function table
- H board tnp4g044au
- To e board e39
- To e board e38
- К i l n
- Vm coil
- Y board tnp4g034az
- То e board e9
- V v v v v 1 v v v
- Parts location mechanical replacement parts list расположение деталей и перечень механических узлов
- Ref no part no description
- Replacement parts list список запасных частей
- Ref no part no description
- Ref no part no description
- Ref no part no description
- Ref no part no description
- Ref no part no description ref no part no description
- Ref no part no description
- Ref no part no description
- Ref no part no description
- Ref no part no description
- Ref no part no description
- Ref no part no description
- Ref no part no description
- Ref no part no description
- Ref no part no description
- Ref no part no description
- Ref no part no description
- Ref no part no description
- Ref no part no description
Похожие устройства
-
Panasonic TX-32ASR600Эксплуатационная инструкция -
Panasonic tx-32csr510Инструкция пользователя -
Panasonic TX-40DR400Руководство по настройке -
Panasonic tx-50cxr700Руководство по эксплуатации -
Panasonic TX-65GXR900Руководство по эксплуатации -
Panasonic TX-55GXR900Руководство по использованию -
Panasonic TX-49GXR900Руководство пользователя -
Panasonic TH-R65PY800Руководство по эксплуатации -
Panasonic TX-51P100HКраткое руководство -
Panasonic TX-51P100HИнструкция по эксплуатации -
Panasonic TH-R65 PY700Инструкция по эксплуатации -
Panasonic TH-R42 PY70Инструкция по эксплуатации

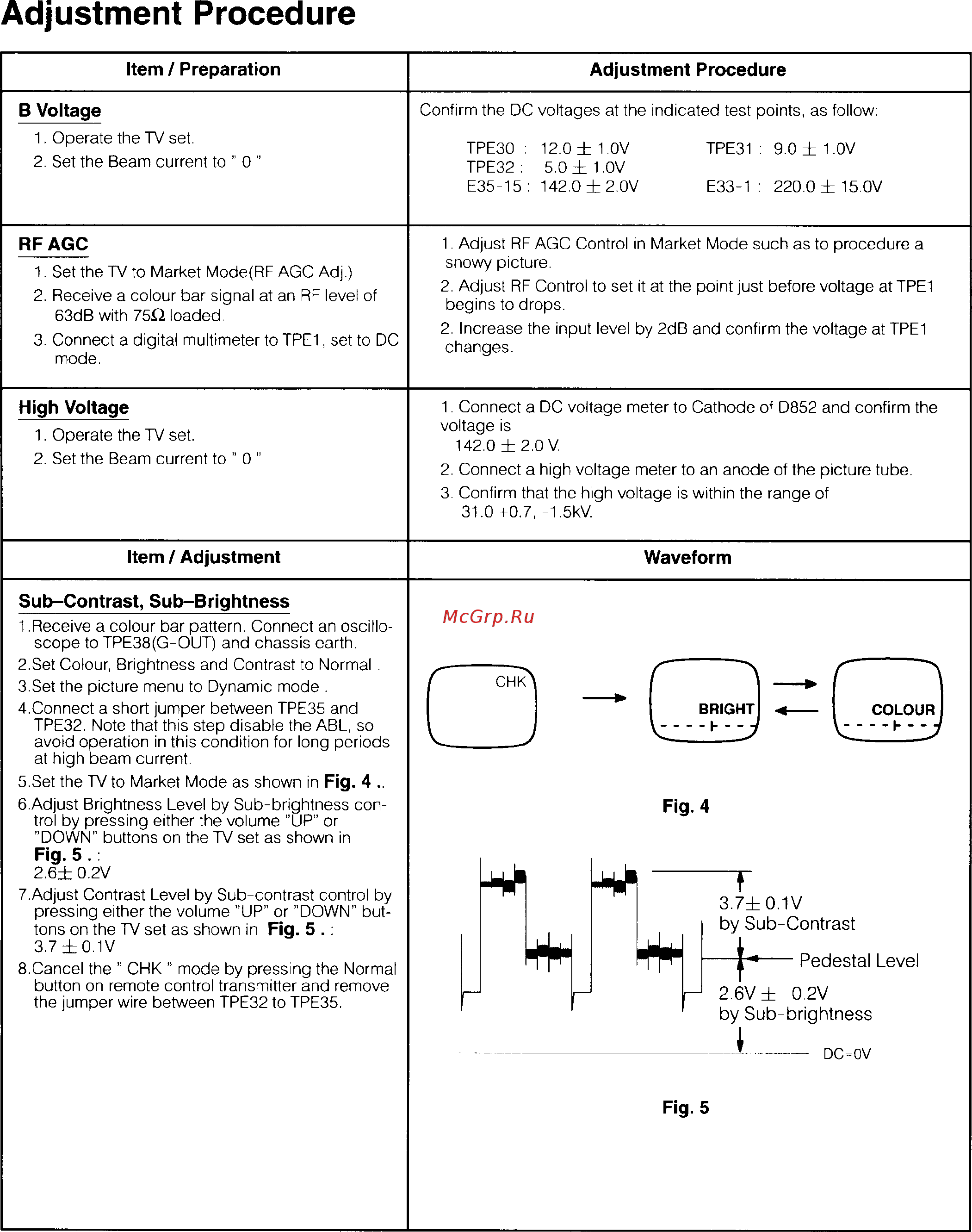

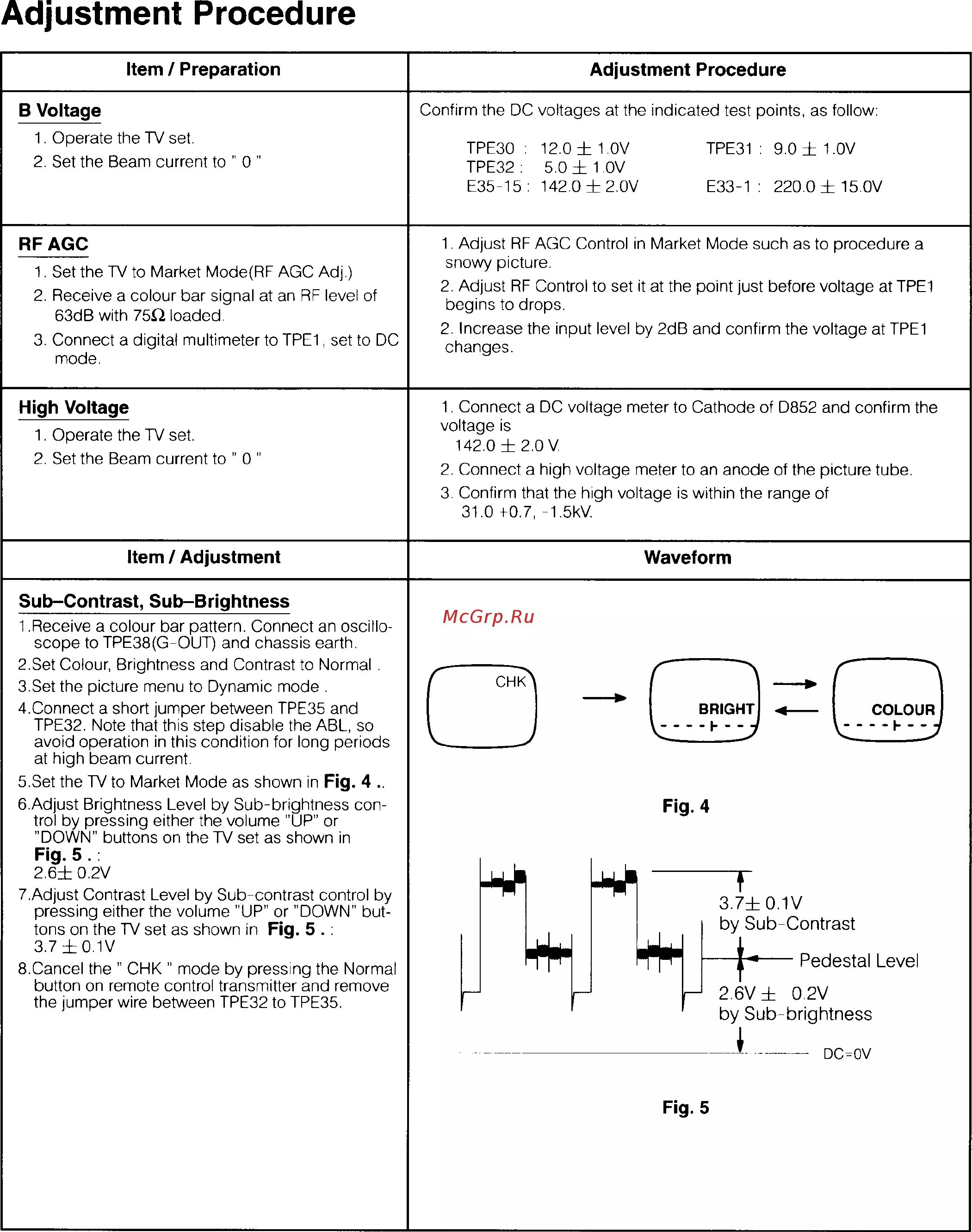

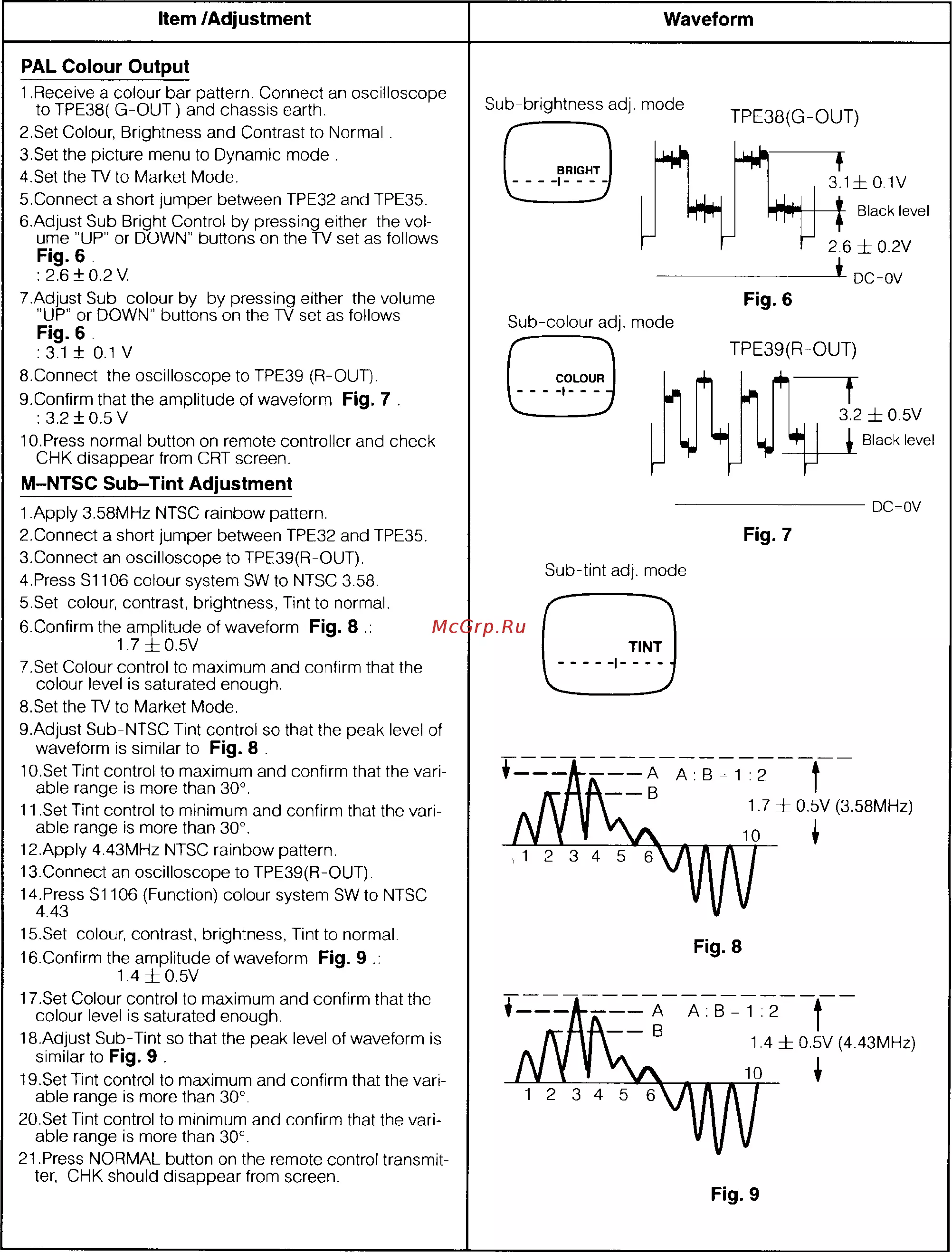

Adjustment Procedure Item Preparation Adjustment Procedure Confirm the DC voltages at the indicated test points as follow B Voltage 1 Operate the TV set 2 Set the Beam current to 0 RF AGC 1 Set the TV to Market Mode RF AGC Adj 2 Receive a colour bar signal at an RF level of 63dB with 75Q loaded 3 Connect a digital multimeter to TPE1 set to DC mode High Voltage 1 Operate the TV set 2 Set the Beam current to 0 TPE30 12 0 1 0V TPE32 5 0 1 0V E35 15 142 0 2 0V TPE31 9 0 1 0V E33 1 220 0 15 0V 1 Adjust RF AGC Control in Market Mode such as to procedure a snowy picture 2 Adjust RF Control to set it at the point just before voltage at TPE1 begins to drops 2 Increase the input level by 2dB and confirm the voltage at TPE1 changes 1 Connect a DC voltage meter to Cathode of D852 and confirm the voltage is 142 0 2 0 V 2 Connect a high voltage meter to an anode of the picture tube 3 Confirm that the high voltage is within the range of 31 0 0 7 1 5kV Item Adjustment Waveform Sub Contrast Sub Brightness 1 Receive a colour bar pattern Connect an oscillo scope to TPE38 G OUT and chassis earth 2 Set Colour Brightness and Contrast to Normal 3 Set the picture menu to Dynamic mode 4 Connect a short jumper between TPE35 and TPE32 Note that this step disable the ABL so avoid operation in this condition for long periods at high beam current 5 Set the TV to Market Mode as shown in Fig 4 6 Adjust Brightness Level by Sub brightness con trol by pressing either the volume UP or DOWN buttons on the TV set as shown in Fig 5 2 6 0 2V 7 Adjust Contrast Level by Sub contrast control by pressing either the volume UP or DOWN but tons on the TV set as shown in Fig 5 3 7 0 1V 8 Cancel the CHK mode by pressing the Normal button on remote control transmitter and remove the jumper wire between TPE32 to TPE35 CHK SRICSI COLOUR Fig 4 f 3 7 0 1V by Sub Contrast Pedestal Level 2 6V 0 2V by Sub brightness 1 DC 0V Fig 5
