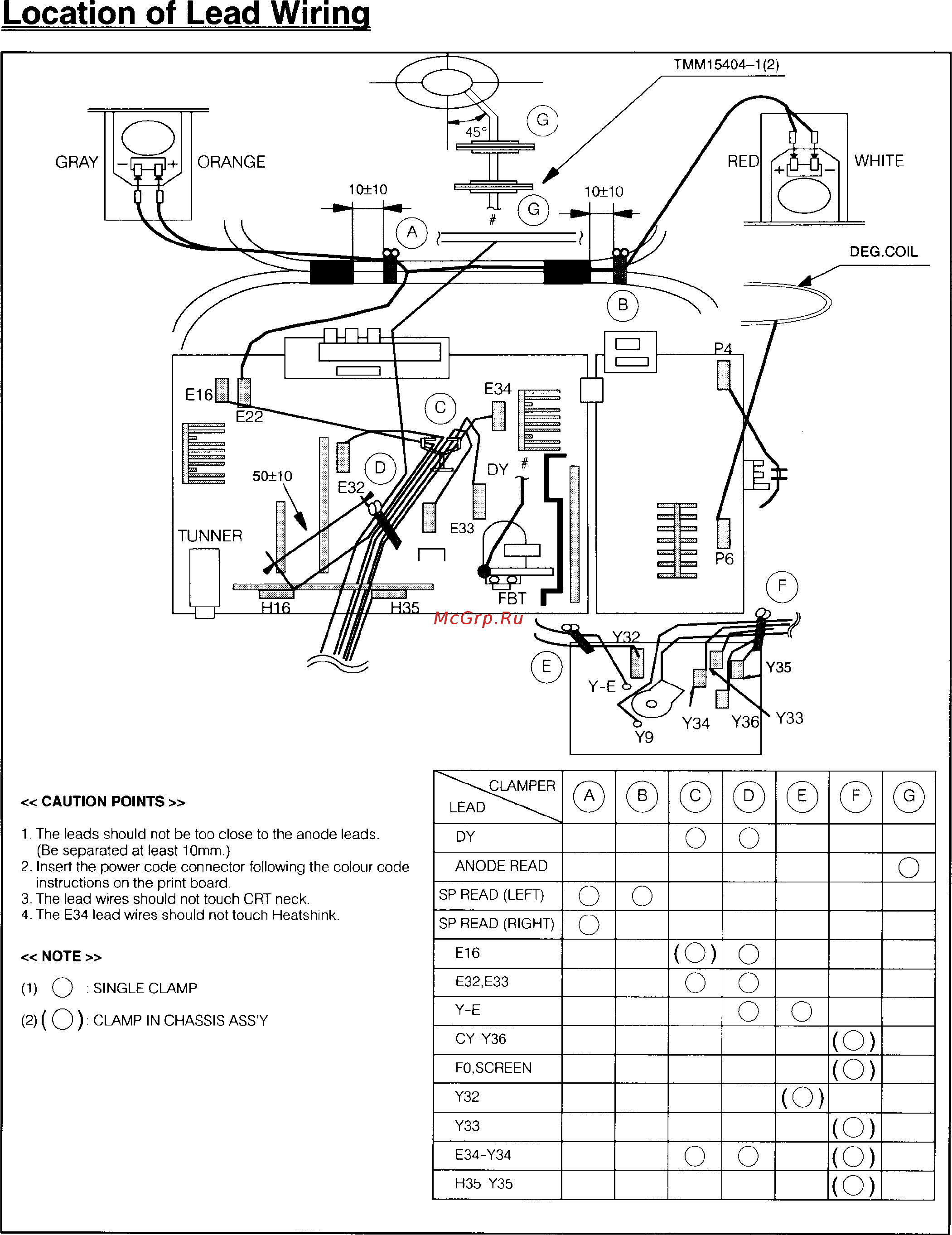

Location of Lead Wiring CLAMPER CAUTION POINTS 1 The leads should not be too close to the anode leads Be separated at least 10mm 2 Insert the power code connector following the colour code instructions on the print board 3 The lead wires should not touch CRT neck 4 The E34 lead wires should not touch Heatshink Q DY Q Q ANODE READ SP READ LEFT SP READ RIGHT NOTE E16 1 Q SINGLE CLAMP E32 E33 2 Q CLAMP IN CHASSIS ASS Y LEAD Y E Q Q Q O Q Q Q Q CY Y36 F0 SCREEN Y32 Y33 E34 Y34 H35 Y35 Q Q O O O O Q O O
