Dell UltraSharp UP2718Q [8/59] Back view
![Dell UltraSharp UP2718Q [8/59] Back view](/views2/1264448/page8/bg8.png)
8 | About Your Monitor

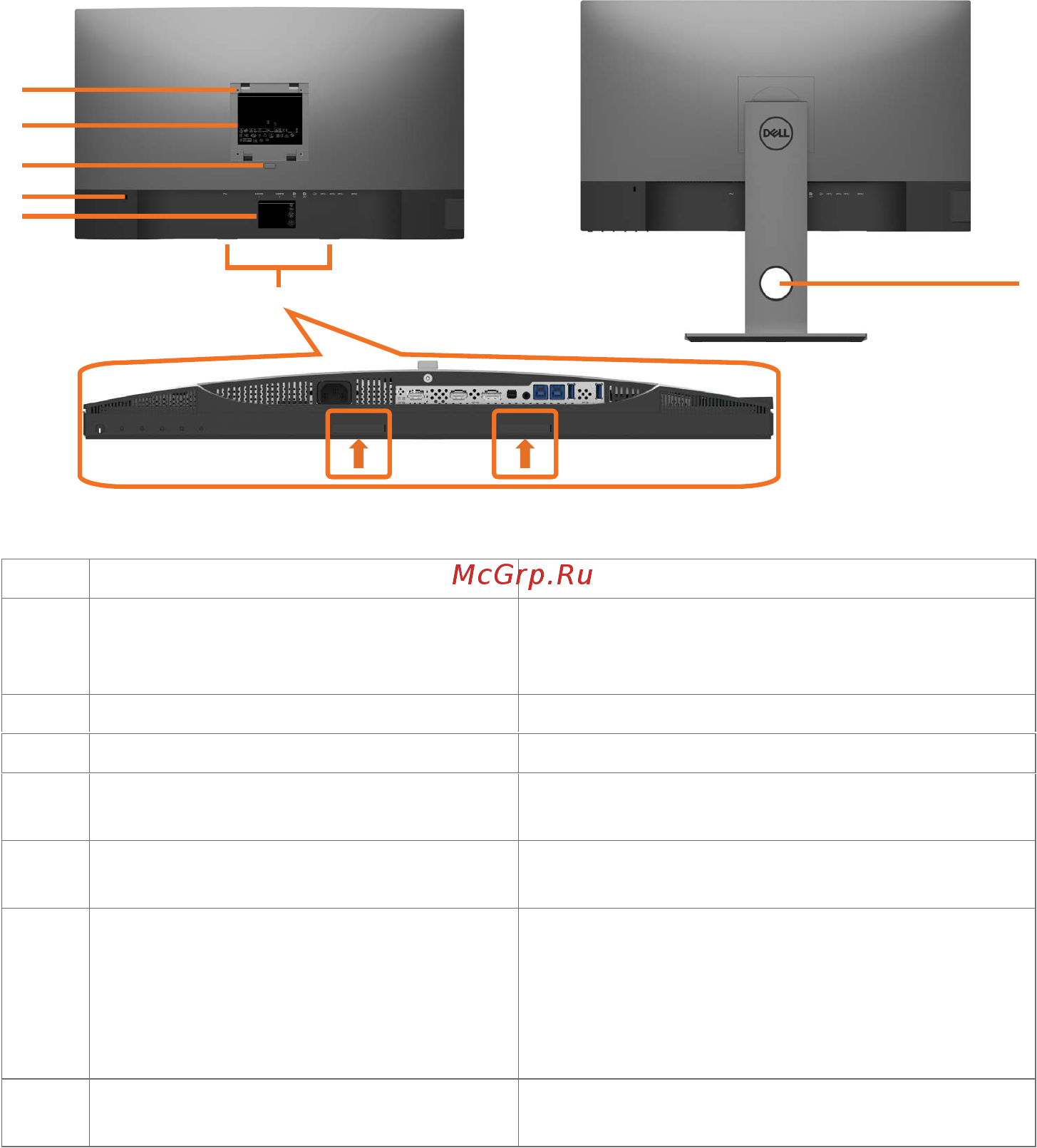

Back View
7
6
1
2
3
5
4
DELL UP2718Q
Flat Panel Monitor / 䃠ުॐ֘
Model No. / ֺ՚ UP2718Qt
Input Rating / ૿ҵऄ࢛
100-240V ~ 50/60Hz XXA
Made in China / Ӳଭ֪ И֢
Manufactured date /䙖ᰛᵕ
E
n
e
r
g
y
C
o
n
s
e
r
v
a
t
i
o
n
C
e
r
t
i
f
i
c
a
t
i
o
n
UP2718Q
Удельная мощность рабочего режима - X,XXX Вт/см
Потребляемая мощность изделием в режиме ожидания - X,XX Вт
Потребляемая мощность изделием в выключенном режиме - X,XX Вт
2
Flat Panel Monitor / Monitor Pla no Panel / Moniteur à écran plat / 䃠桨ॐ֘
Model No. / Modelo / Numéro de m odèle /ֺ垹:
UP2718Qt
Input Rating / Entrada / Daya Teganga n / Tension d’e ntrée: 100 -240V ~ 50 /60Hz X.X A
忼ҵ朅࢛ сࡶ朅⺷100-240ѥࣔ,
1.6 ؍ׁ 50/60咬
Consumo de energía: XX.X Wh
Consumo de energía en modo de espera: X.XX Wh
Made in China / Fabricado en China / Fabriqués en Chine/ Сделано в Китае /
娸ଭ
֪ Иⴚ
CAN ICES-3 (B)/NMB-3(B)
XUXXXXXX-XXXXX
MSIP-REM-WT1-UP2718Qt
㐔㷡㢬ஔWistron Corporation
Wistron InfoComm (Zhongshan) Corporation
㥐㦤㣄aGWistron InfoComm (Zhongshan) Corporation
A/S!㜤⢱㷌:080-854-0066
㥐㦤ạ 㩅ạ
Apparatet må tilkoples jordet stikkontakt.
Apparaten skall anslutas till jordat uttag.
Apparatets stikprop skal tilsluttes en stikkontakt med jord,
som giver forbindelse til stikproppens jord.
Laite on liitettävä suojakoskettimilla varustettuun pistorasiaan.
XXXXX
И005-16
XXXXXX-XX
䝕䝹ᰴᘧ♫
Raheen Business Park
Limerick Ireland
www.dell.com
R43004
RoHS
ID XXXXXXXXXX
ID
XXXXXXXXXX
Flicker Free
www.tuv.com
ID
1419033926
Low Blue Light
Content
www.tuv.com
ID
1419033928
ઊ寉 ҅ऀ惐چ㔼⟆؞嫌ԃ
Label Description Use
1 VESA mounting holes (100 mm x
100 mm-behind attached VESA
cover)
Wall mount monitor using VESA-
compatible wall mount kit (100 mm x 100
mm).
2 Regulatory label Lists the regulatory approvals.
3 Stand release button Release stand from monitor.
4 Security lock slot Secures monitor with security cable lock
(sold separately).
5 Barcode, serial number, and Service
Tag label
Refer to this label if you need to contact
Dell for technical support.
6 Dell soundbar mounting slots Attaches the optional Dell soundbar.
NOTE: Please remove the plastic strip
covering the mounting slots before affixing
the Dell Soundbar.
Dell soundbar is sold separately.
7 Cable management slot Use to organize cables by placing them
through the slot.
