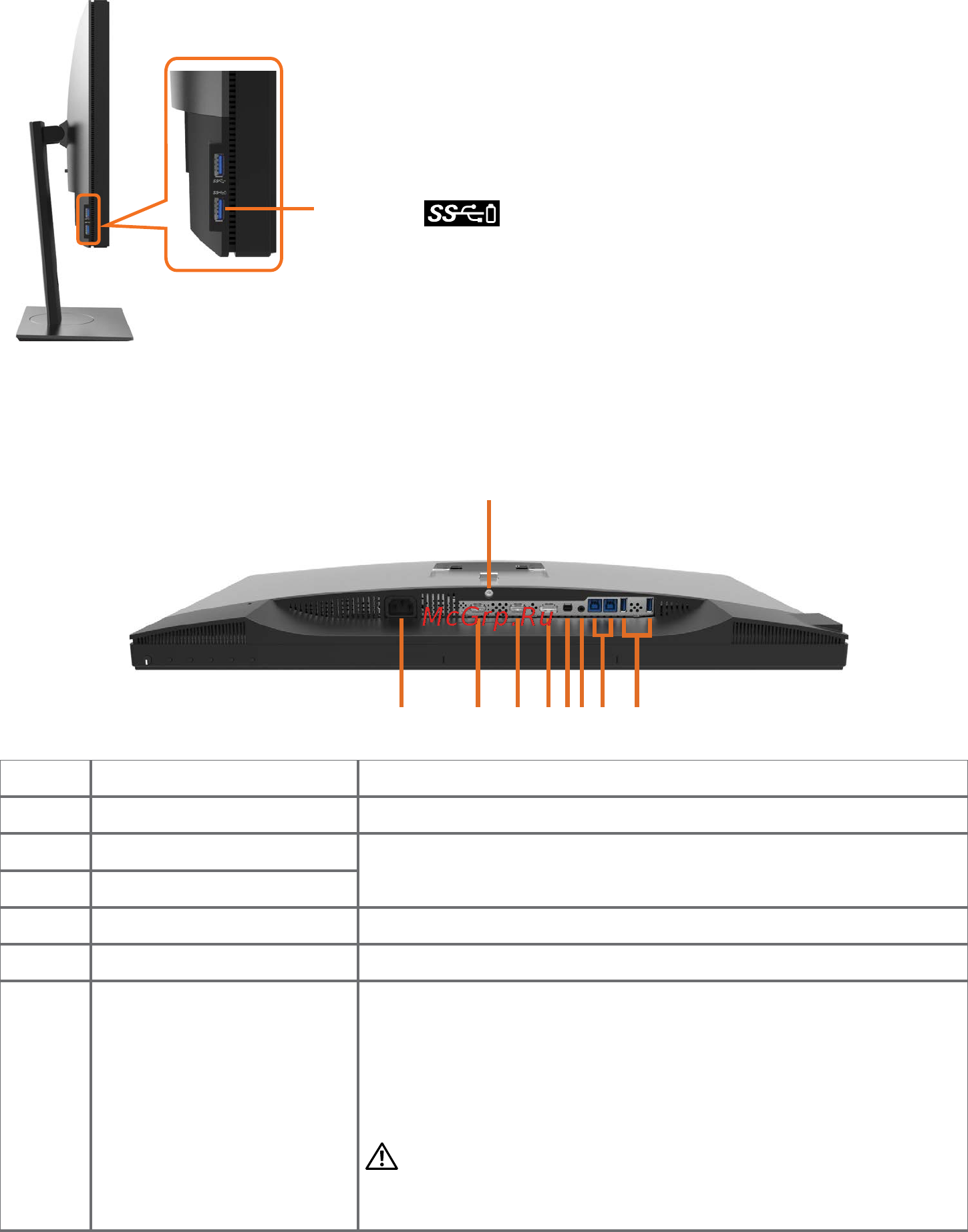

About Your Monitor | 9
Side View
Bottom View
123 4
56 78
9
Label Description Use
1 AC power connector To connect the monitor power cable.
2 HDMI 1 connector
Connect your computer with HDMI cable.
3 HDMI 2 connector
4 DP connector (in) Connect your computer with DP cable.
5 mDP connector (in) Connect your computer with DP to mDP cable.
6 Audio line-out port Connect speakers to playback audio coming through
HDMI or DP audio channels.
Only supports 2-channel audio.
NOTE: The audio line-out port does not support
headphones.
WARNING: Excessive sound pressure from
earphones or headphones can cause hearing
damage or loss.
USB downstream port
Port with battery icon supports BC 1.2.
