Dell S2218M [14/47] Organizing cables
![Dell S2318M [14/47] Organizing cables](/views2/1264515/page14/bge.png)
14 | Setting Up the Monitor

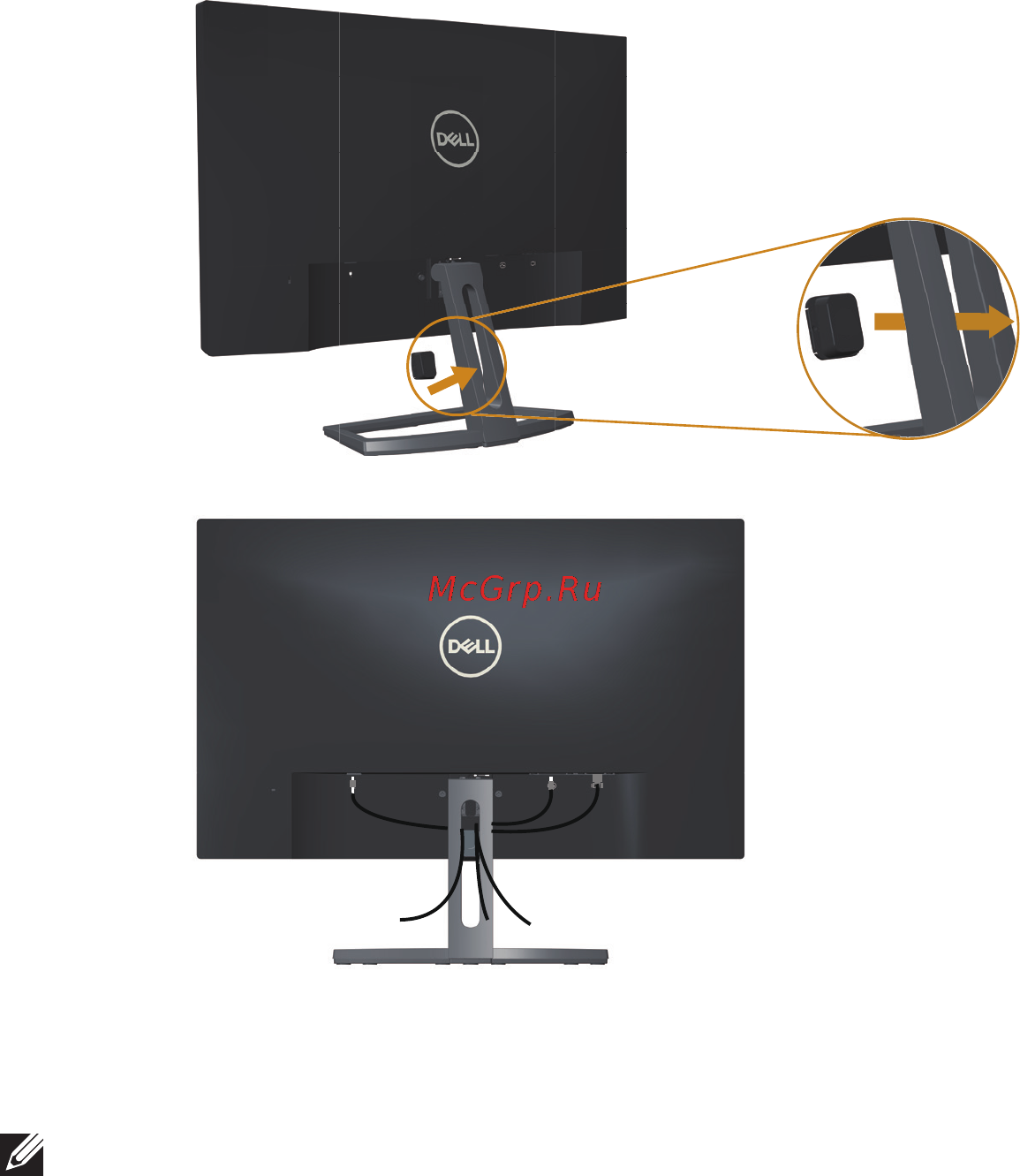

Organizing Cables
After you connect all necessary cables to your monitor and computer, organize all
cables as shown above.
NOTE: After the cables are connected, they will have to be disconnected again
to route them through the hole.
