About Your Monitor | 9
Back View
S2218M
12V 3.33A
S2218Mc
S2218M
S2218Mc
12V 3.33A
S2218M
12V 3.33A
S2218Mc
2
13
4
5
S2218M
S2218Mc
12V 3.33A

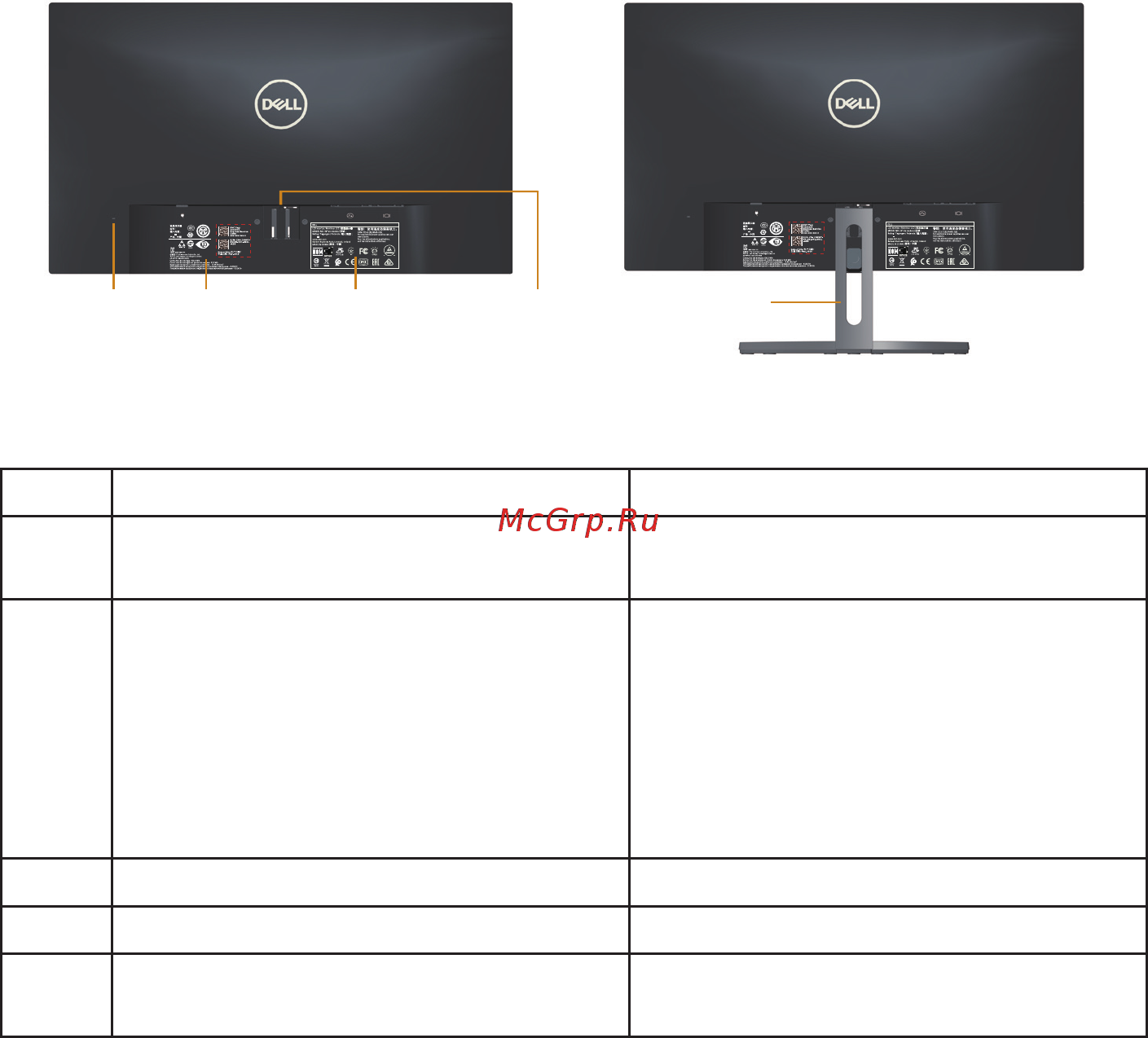

Back View with monitor stand
Label Description Use
1 Security-lock slot Secures monitor with security lock
(security lock not included).
2 Regulatory label (including Barcode
serial number and Service Tag label)
Lists the regulatory approvals. Refer
to this label if you need to contact
Dell for technical support. The Dell
service tag is used for Dell warranty
and customer service management
purposes and for records of the base
system.
3 Regulatory information engraving Lists the regulatory approvals.
4 Stand release button Releases stand from monitor.
5 Cable management slot Uses to organize cables by placing
them through the slot.
Back View without monitor stand
