6 | About Your Monitor
∞

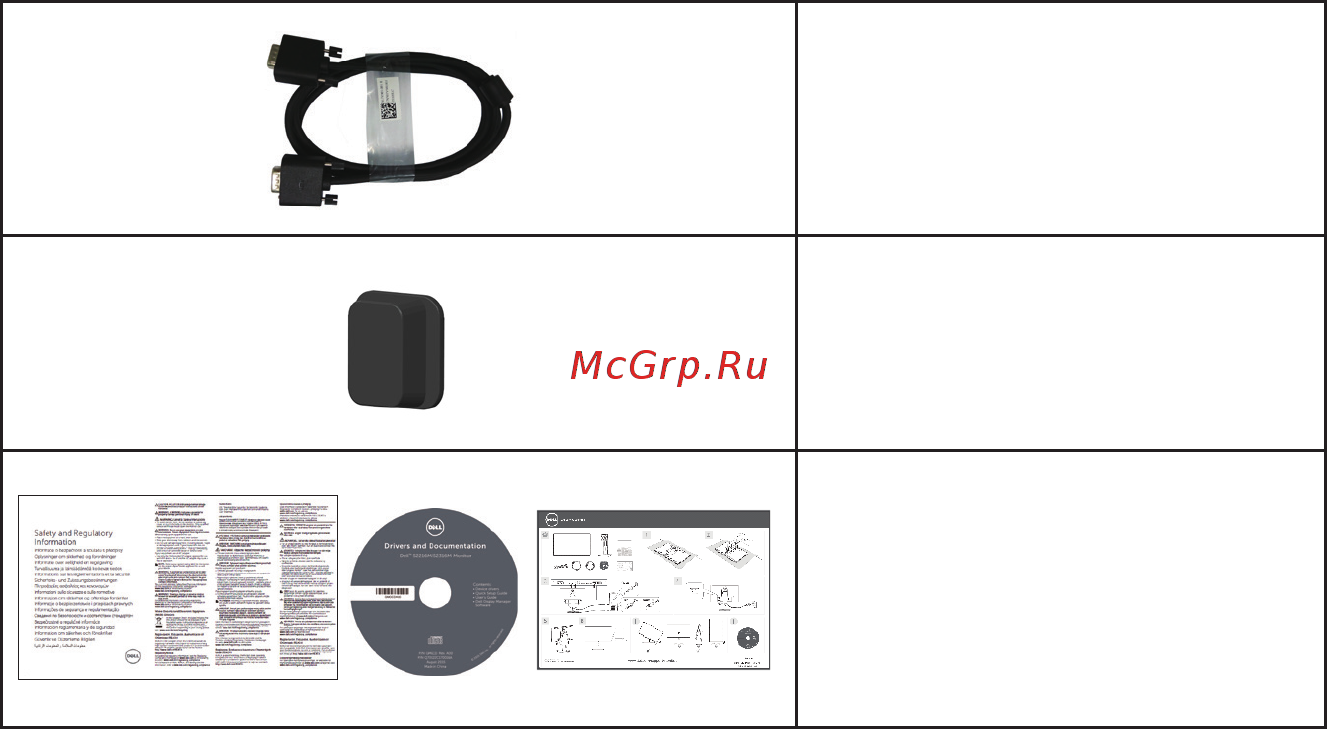

VGA Cable
∞
Cable Holder
Dell
TM
UltraSharp U2715H Monitor
∞
Drivers and
Documentation Media
∞
Quick Setup Guide
∞
Safety and Regulatory
Information
Product Features
The Dell S2218M_S2318M flat panel display has an active matrix, Thin-Film Transistor
(TFT), Liquid Crystal Display (LCD), In-plane Switching panel and LED backlight. The
monitor features include:
∞
S2218M: 54.61 cm (21.5 inch) viewable area display (measured diagonally). 1920
x 1080 resolution, plus full-screen support for lower resolutions.
∞
S2318M: 58.42 cm (23 inch) viewable area display (measured diagonally). 1920 x
1080 resolution, plus full-screen support for lower resolutions.
∞
Wide viewing angle to allow viewing from a sitting or standing position, or while
moving from side-to-side.
∞
Plug and play capability if supported by your system.
∞
On-Screen Display (OSD) adjustments for ease of set-up and screen
optimization.
∞
Software and documentation media includes an Information File (INF), Image
Color Matching File (ICM), and product documentation.
∞
Dell Display Manager Software included (in the CD shipped with the monitor).
∞
Energy Star certified monitor.
∞
Security - lock slot.
∞
Capability to switch from wide aspect to standard aspect ratio while maintaining
the image quality.
∞
TCO-Certified Displays.
∞
BFR/PVC-Reduced (Its circuit boards are made from BFR/PVC-free laminates).
∞
High Dynamic Contrast Ratio (8,000,000:1).
∞
0.3 W standby power when in the sleep mode.
∞
Energy Gauge shows the energy level being consumed by the monitor in real
