Operating your Monitor | 23
Input Color
Format
Allows you to set the video input mode to:
∞
RGB: Select this option if your monitor is connected
to a computer or DVD player using the HDMI to DVI
adapter.
∞
YPbPr: Select this option if your DVD player supports
only YPbPr output.
Brightness / Contrast
Display
Energy
Menu
Personalize
Others
Resolution: 1920x1080, 60Hz

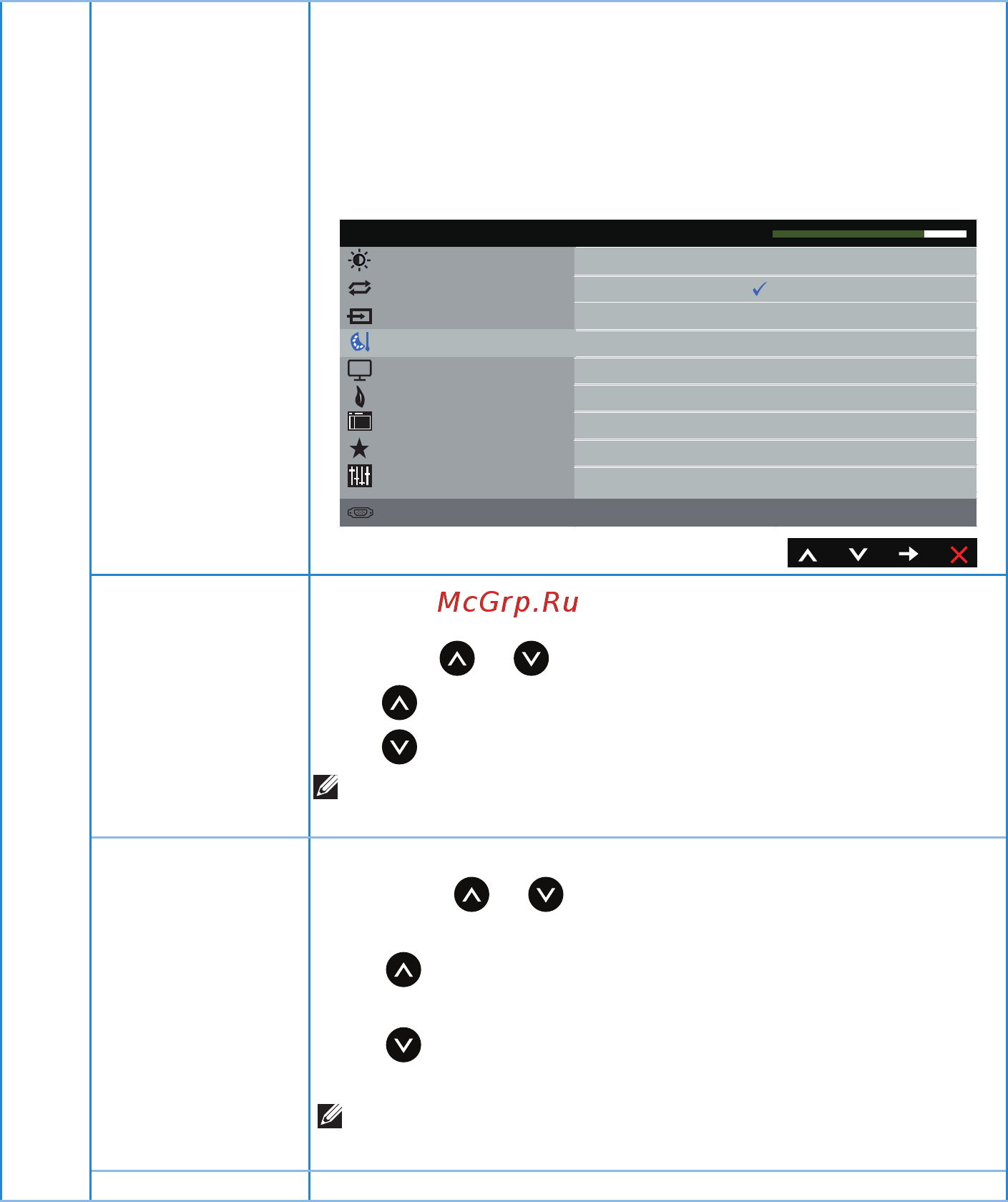

Dell S2X18M Energy Use
Input Color Format
Auto Adjust
Input Source
Color
RGB
YPbPr
Preset Modes
Reset Color
Hue
This feature can shift the color of the video image to green
or purple. This is used to adjust the desired flesh tone
color. Use or to adjust the hue from 0 to 100.
Press to increase the green shade of the video image.
Press to increase the purple shade of the video image.
NOTE: Hue adjustment is available only when you select
Movie or Game preset mode.
Saturation This feature can adjust the color saturation of the video
image. Use or to adjust the saturation from '0' to
'100'.
Press to increase the monochrome appearance of the
video image.
Press to increase the colorful appearance of the video
image.
NOTE: Saturation adjustment is available only when you
select Movie or Game preset mode.
Reset Color
Allows your monitor color settings to the factory settings.
