Water cooling options

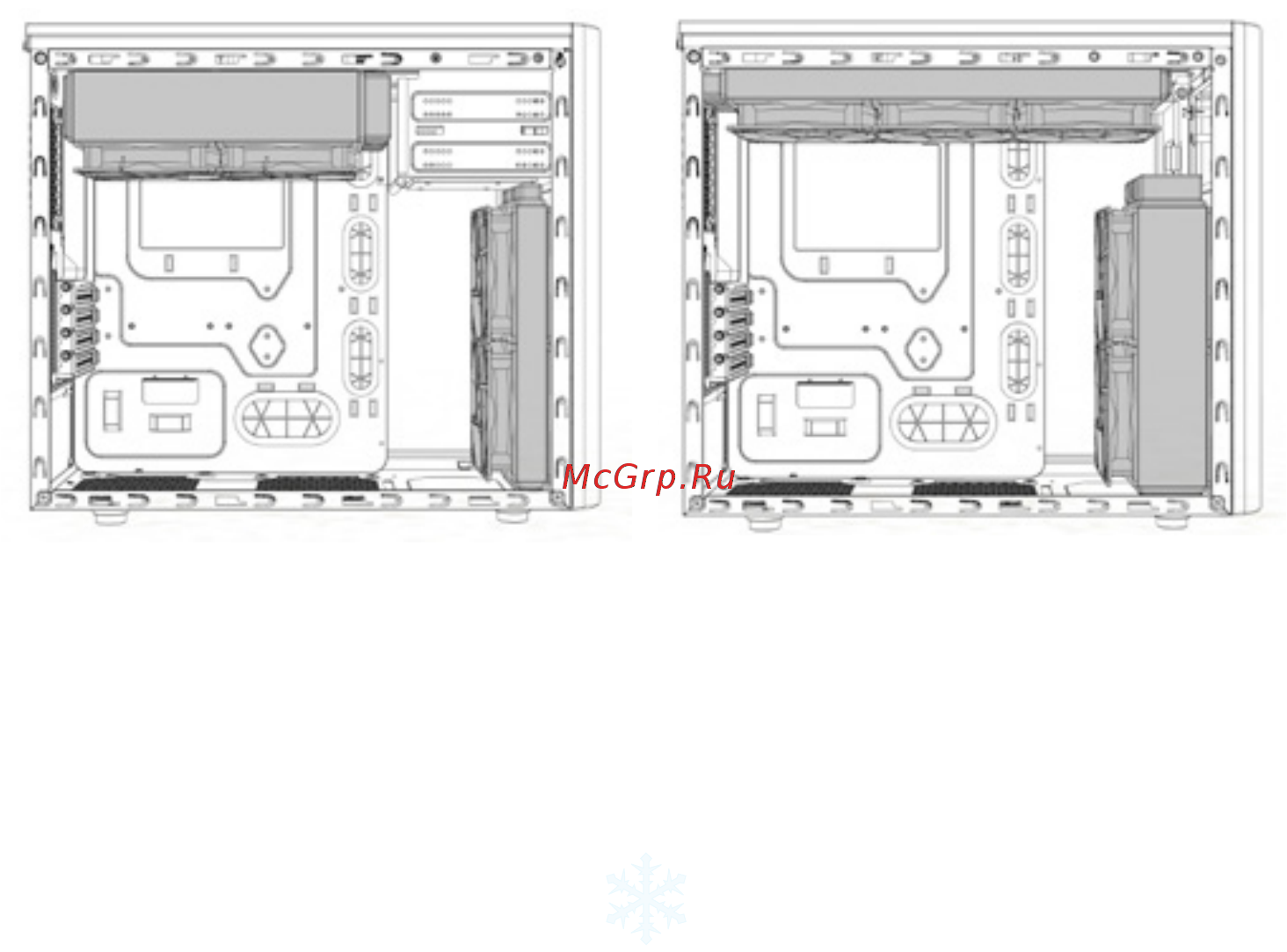

The Arc Mini R2 offers multiple options when it comes to installing water cooling compo-

nents:

• Top panel: The fan positions in the top panel are positioned in such a way that install-

ing thick water cooling radiators will not interfere with components on your motherboard

such as memory or heatsinks. A 240mm radiator will t in the top but you can also t a

360mm radiator if you remove the optical drive bay from the front of the case. Instruc-

tions on how to remove the optical drive bay are outlined in the section Removing the

optical drive bay.

• Front panel: A 240mm radiator ts in this position as long as the total length is no

more than 272 mm and the bottom HDD cage is removed. If the radiator is longer than

272mm, if may still be installed however the optical bay will have to be removed. In-

structions on how to remove the optical drive bay are outlined in the section Removing

the optical drive bay.

• Rear panel: In this fan position you can t a 120mm radiator.

• Bottom panel: In this fan position you can t a 120mm radiator.
