• When removing the cable connected to a back panel connector, rst remove the cable from your
device and then remove it from the motherboard.
• When removing the cable, pull it straight out from the connector. Do not rock it side to side to
prevent an electrical short inside the cable connector.
Please visit GIGABYTE's website for more audio software information.

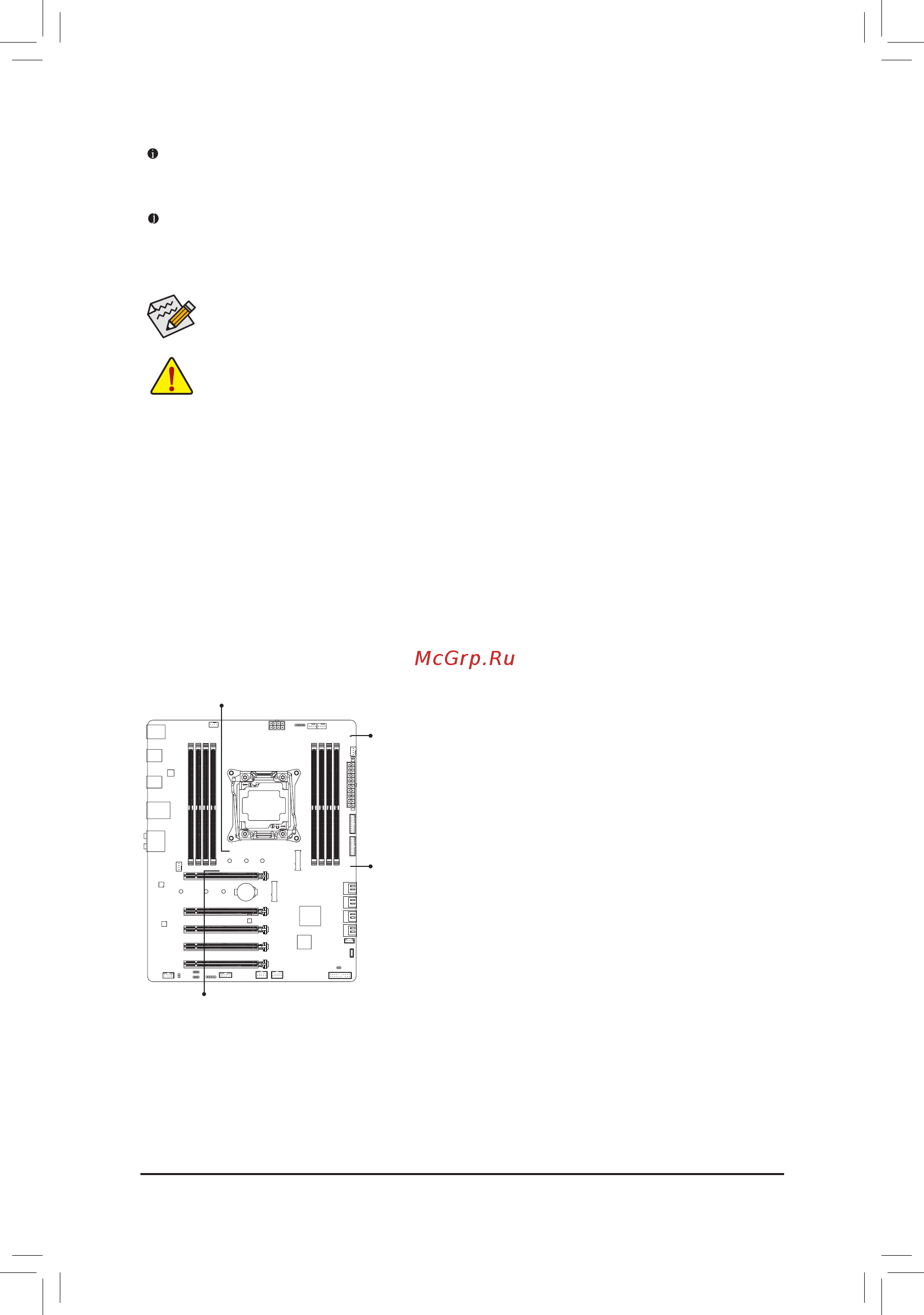

1-8 Onboard LEDs
Status LEDs
The status LEDs show whether the CPU, graphics card, memory, and operating system are working properly
aftersystempower-on.IftheCPU/VGA/DRAMLEDison,thatmeansthecorrespondingdeviceisnotworking
normally; if the BOOT LED is on, that means you haven't entered the operating system yet.
CPU: CPU status LED
VGA: Graphics card status LED
DRAM: Memory status LED
BOOT: Operating system status LED
DRAM
BOOT
CPU
VGA
Line Out (Green)
The line out jack. Use this audio jack for a headphone or 2-channel speaker. This jack can be used to
connectfrontspeakersina4/5.1/7.1-channelaudioconguration.
Mic In (Pink)
The Mic in jack.
- 13 -
