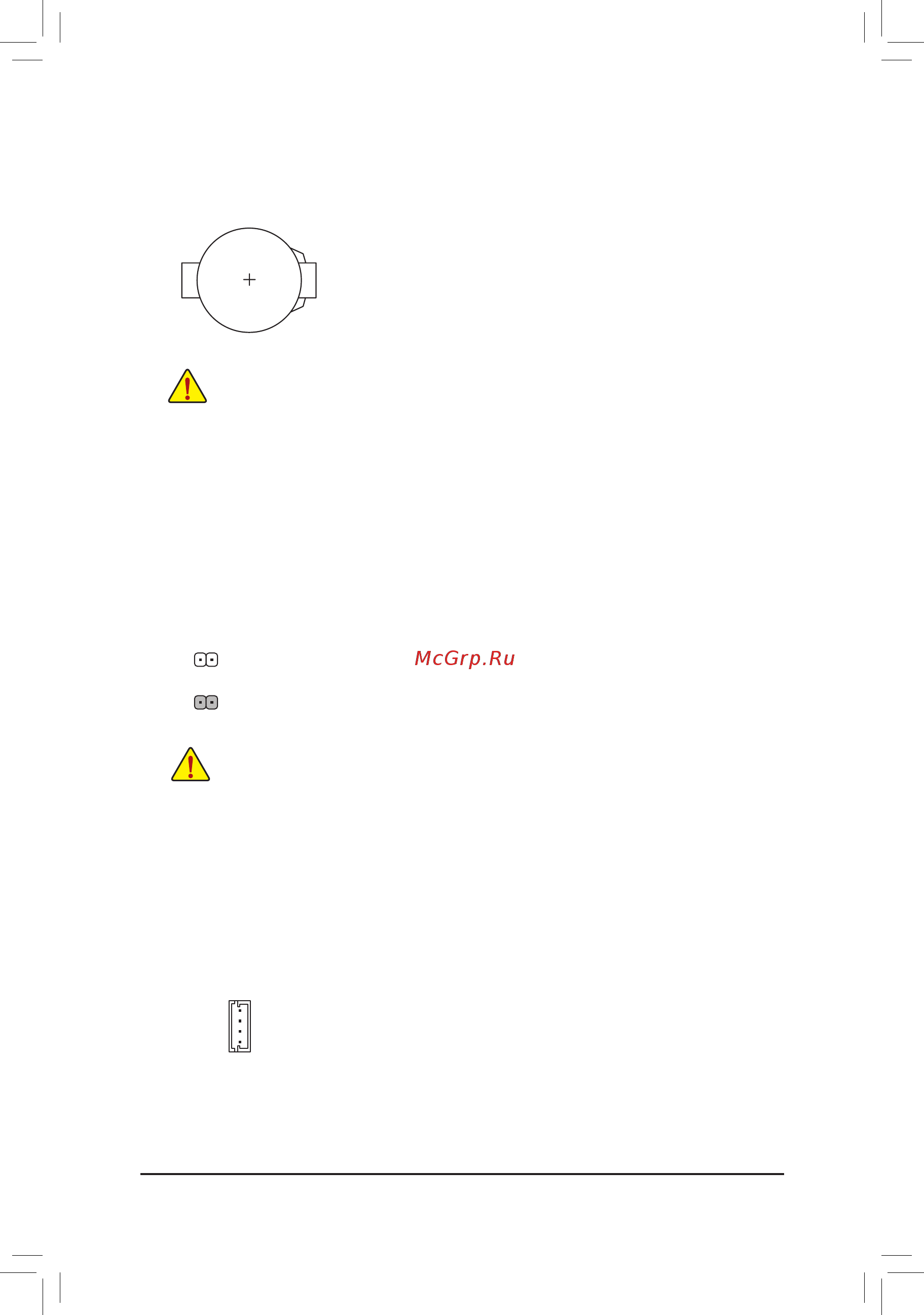

20) BAT (Battery)

 Thebatteryprovidespowertokeepthevalues(suchasBIOScongurations,date,andtimeinformation)

intheCMOSwhenthecomputeristurnedoff.Replacethebatterywhenthebatteryvoltagedropstoalow

level, or the CMOS values may not be accurate or may be lost.

You may clear the CMOS values by removing the battery:

1. Turn off your computer and unplug the power cord.

2. Gently remove the battery from the battery holder and wait for one minute. (Or use a

metal object like a screwdriver to touch the positive and negative terminals of the battery

holder, making them short for 5 seconds.)

or uncertain about the battery model.

• When installing the battery, note the orientation of the positive side (+) and the negative side (-)

of the battery (the positive side should face up).

• Used batteries must be handled in accordance with local environmental regulations.

21) CLR_CMOS (Clear CMOS Jumper)

 UsethisjumpertocleartheBIOScongurationandresettheCMOSvaluestofactorydefaults.Toclear

the CMOS values, use a metal object like a screwdriver to touch the two pins for a few seconds.

• Always turn off your computer and unplug the power cord from the power outlet before clearing

the CMOS values.

• Aftersystemrestart,gotoBIOSSetuptoloadfactorydefaults(selectLoadOptimizedDefaults)or

22) VROC (Intel

This header can be used to connected an Intel

VROCUpgradeKey.
