1-3 Installing the CPU

ReadthefollowingguidelinesbeforeyoubegintoinstalltheCPU:

• Make sure that the motherboard supports the CPU.

(Go to GIGABYTE's website for the latest CPU support list.)

• Always turn off the computer and unplug the power cord from the power outlet before installing the

CPU to prevent hardware damage.

• Locate the pin one of the CPU. The CPU cannot be inserted if oriented incorrectly. (Or you may

locate the notches on both sides of the CPU and alignment keys on the CPU socket.)

• Apply an even and thin layer of thermal grease on the surface of the CPU.

• Do not turn on the computer if the CPU cooler is not installed, otherwise overheating and damage

of the CPU may occur.

• SettheCPUhostfrequencyinaccordancewiththeCPUspecications.Itisnotrecommended

thatthesystembusfrequencybesetbeyondhardwarespecicationssinceitdoesnotmeetthe

standard requirements for the peripherals. If you wish to set the frequency beyond the standard

specications,pleasedosoaccordingtoyourhardwarespecicationsincludingtheCPU,graphics

card, memory, hard drive, etc.

Installing the CPU

Locate the alignment keys on the motherboard CPU socket and the notches on the CPU.

To protect the socket contacts, do not remove the protective plastic cover unless the CPU is

inserted into the CPU socket. Save the cover properly and replace it if the CPU is removed.

1-4 Installing the Memory

Readthefollowingguidelinesbeforeyoubegintoinstallthememory:

• Make sure that the motherboard supports the memory. It is recommended that memory of the same

capacity, brand, speed, and chips be used.

(Go to GIGABYTE's website for the latest supported memory speeds and memory modules.)

• Always turn off the computer and unplug the power cord from the power outlet before installing the

memory to prevent hardware damage.

• Memory modules have a foolproof design. A memory module can be installed in only one direction.

If you are unable to insert the memory, switch the direction.

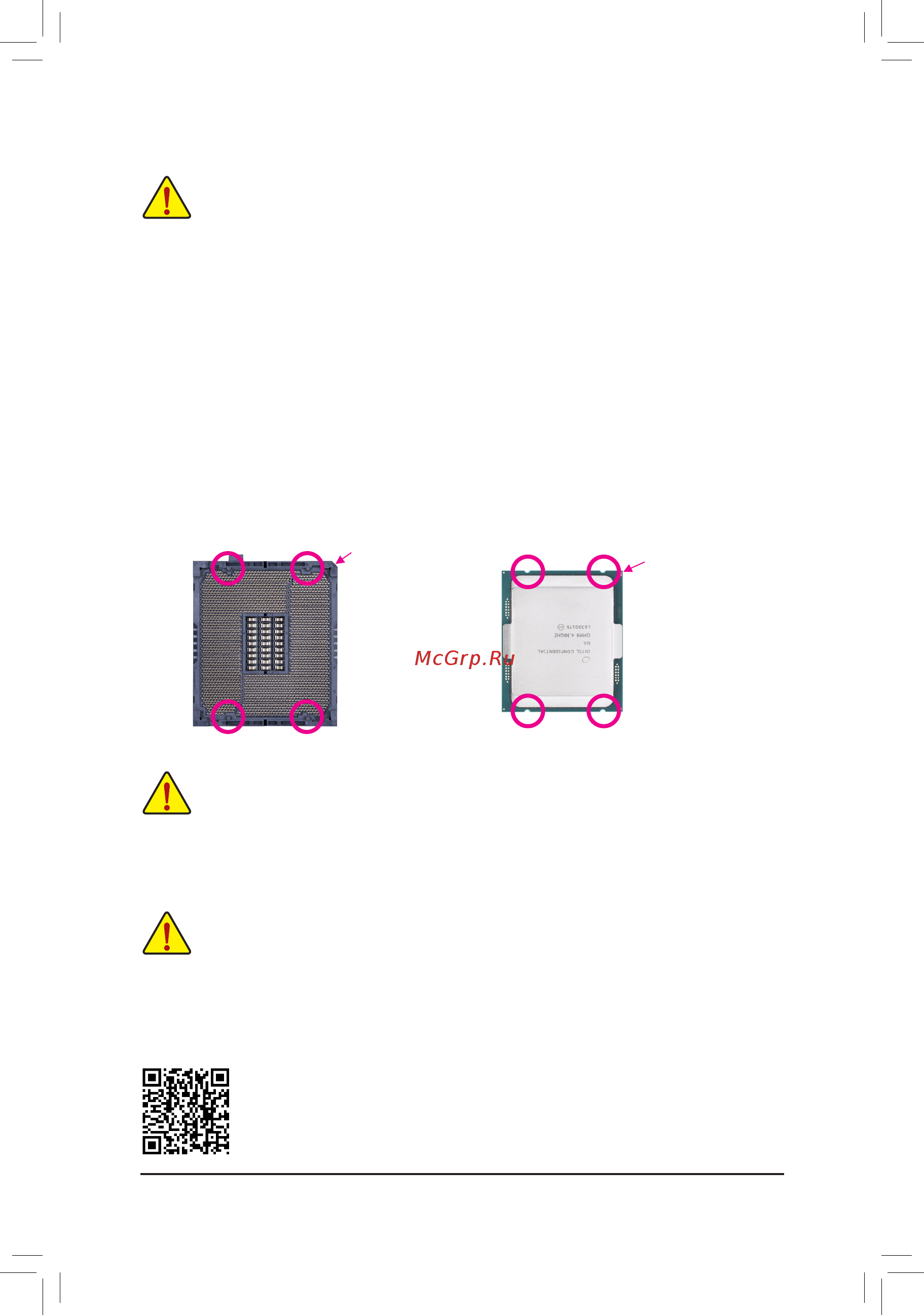

Alignment Key

LGA2066 CPU Socket

Pin One Corner of

the CPU Socket

Alignment KeyAlignment Key

LGA2066 CPU

Triangle Pin One

Marking on the CPU

Notch

Please visit GIGABYTE's website for details on hardware installation.
