Replacing FRUs 31
Replacing the 2.5-inch storage drive
Attention
Do not open your computer or attempt any repairs before reading the Important
Product Information Guide.
1
Remove the computer stand. For details, see Replacing the monitor stand or Replacing the UltraFlex II
Stand.
2
Remove the computer cover. For details, see Removing the computer cover.
3

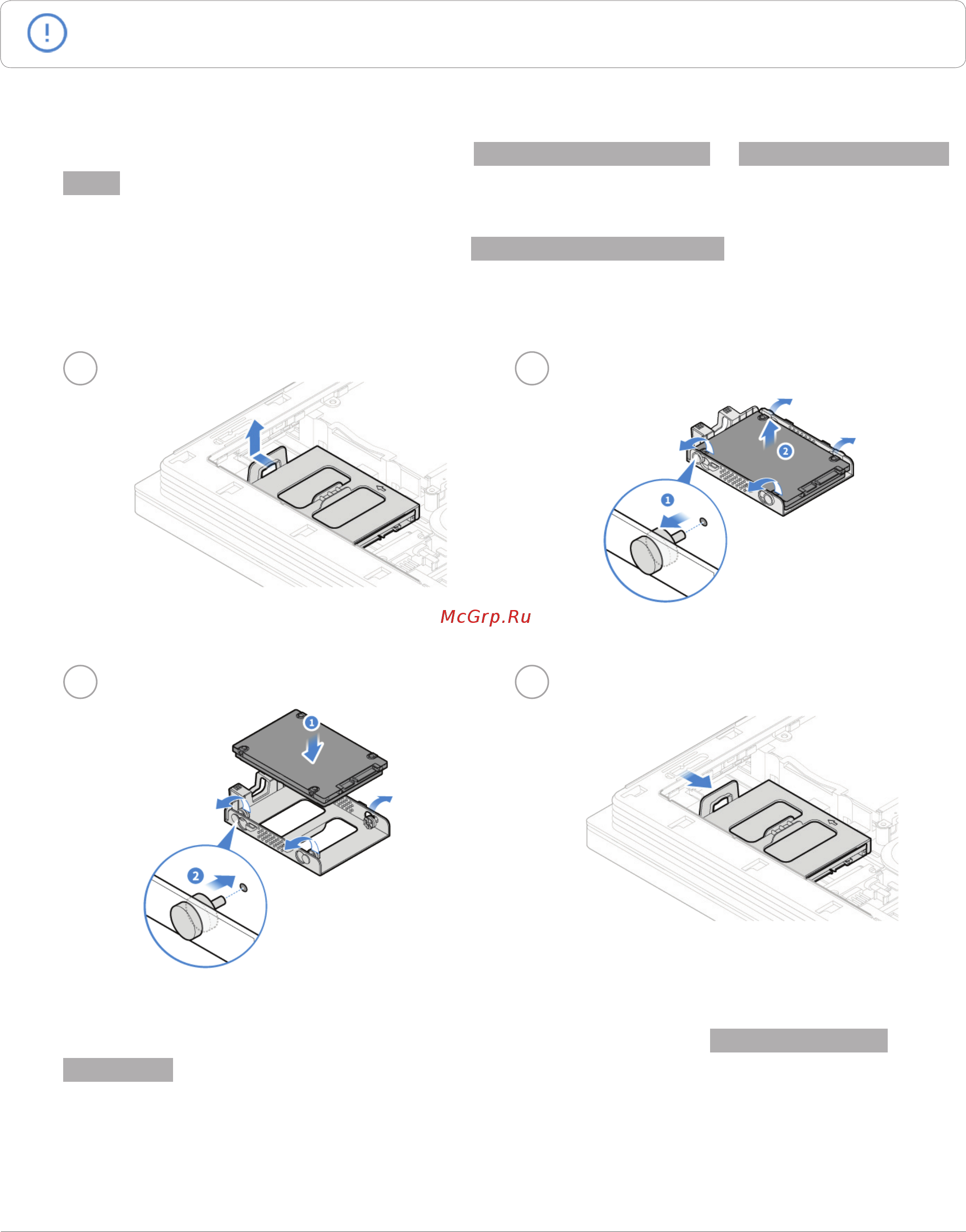

Replace the 2.5-inch storage drive.
1 2
3 4
4
Reinstall the computer cover and reconnect the cables. For details, see Completing the parts
replacement.
