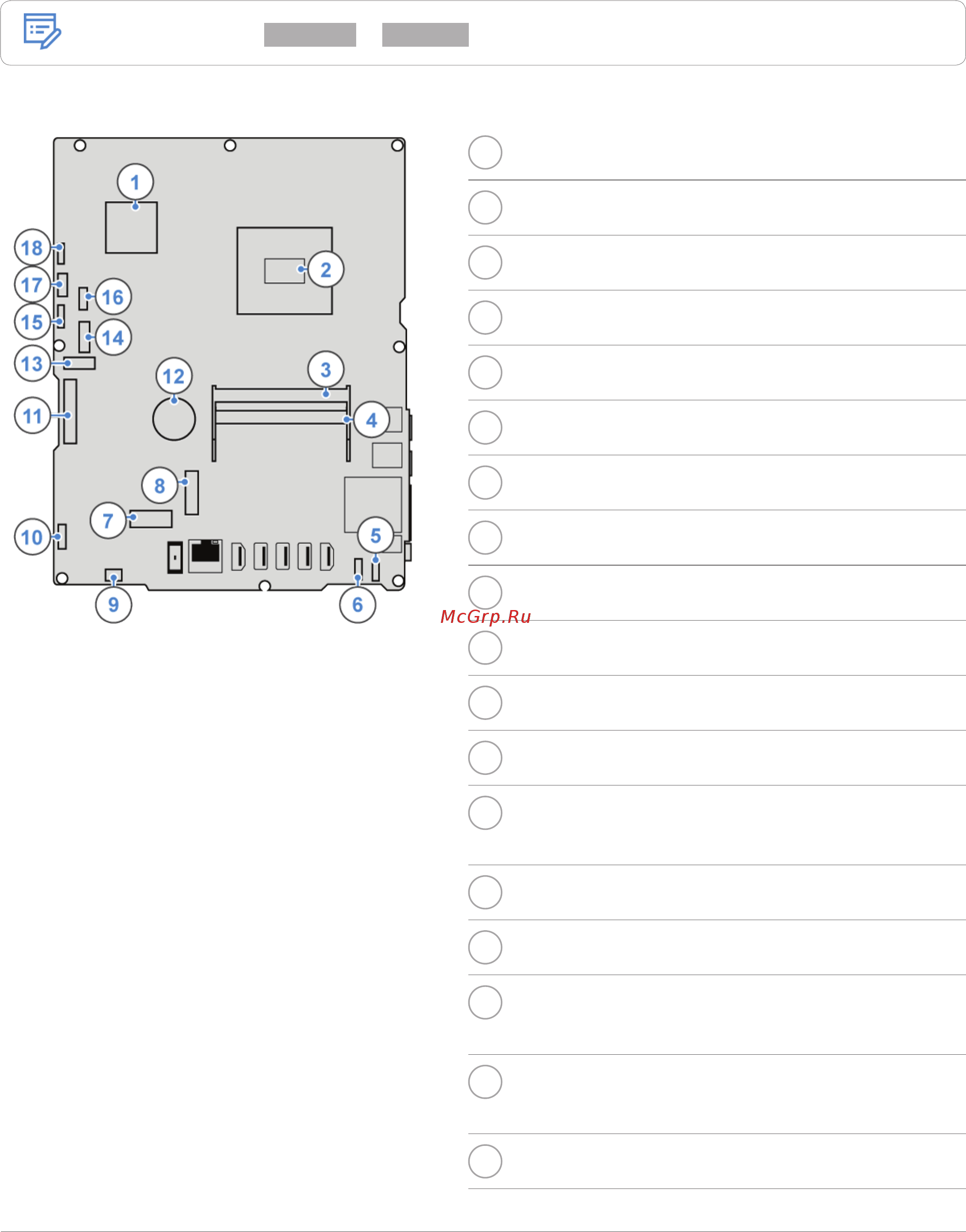

Overview 6
System board
Note
See Front view or Rear view for additional component descriptions.
1
Graphics processor unit (GPU)
2
Microprocessor
3
Memory slot (DIMM2)
4
Memory slot (DIMM1)
5
Internal speaker connector
6
Integrated microphone connector
7
M.2 Wi-Fi card slot
8
M.2 storage drive slot (optional)
9
Integrated camera connector
10
LCD backlight connector
11
LCD panel connector
12
Coin-cell battery
13
SATA 3.0 connector (for connecting a
storage drive)
14
Optical drive connector
15
Touch screen connector
16
Power connector (for connecting a
storage drive)
17
Power connector (for connecting an
optical drive)
18
Microprocessor fan connector
